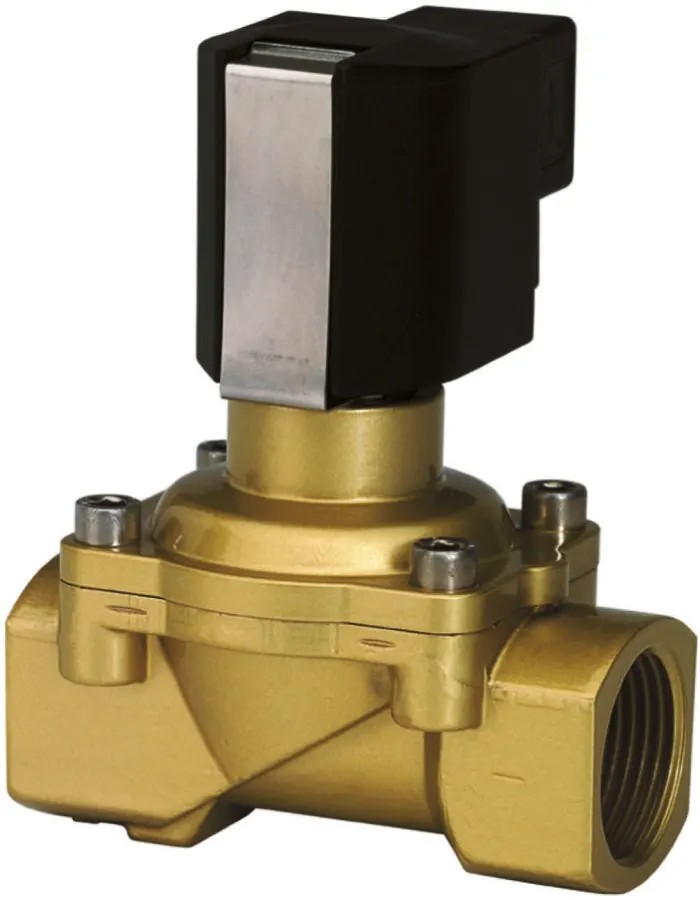

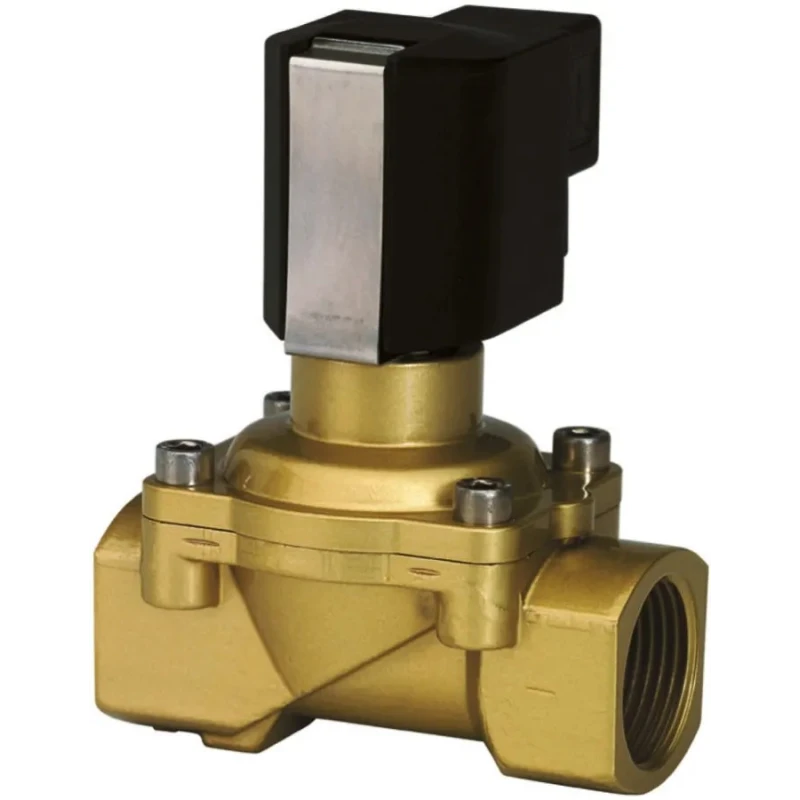

Buschjost Brass 2 Port Normally Closed Solenoid Valve, Threaded Connections, 24V dc, 8mm Orifice 8254000.9151.02400
Specifications
| Country of Origin | Germany |
|---|---|
| Brand | Buschjost |
| Body Material | Brass |
| Maximum Operating Pressure | 10 bar |
| Outlet Connection Type | Threaded |
| Series | 82540 |
| Number Of Ports | 2 |
| Maximum Operating Temperature | +50°C |
| Minimum Operating Temperature | -10°C |
| Orifice Diameter | 8mm |
| Supply Voltage | 24V dc |
| Hazardous Area Certification | Protection class x II 2 GD EEx me II T3 T 140 °C, Protection class x II 3 GD EEx nA II T4 T 135 °C |
| Default Valve Position | NC |
| Flow Factor Kv | 1.9m³/h |
Key Features
- Constructed with robust brass body material for longevity.
- Features threaded inlet and outlet connections with 8mm orifice diameter.
- Designed for maximum operating pressure of 10 bar and a temperature range from -10°C to +50°C.
- Supports servo assist with easy maintenance via tool-free click-on solenoid interchange.
- Complies with multiple industrial standards including PED 97/23/EG and EN 60529 IP65 protection.
- Provides damped operation and supports optional vertical mounting for optimal performance.
- Suitable for use in robust industrial and HVAC applications including air, oil, and water systems.
Product Description
Buschjost 8254000.9151.02400 solenoid valve is a high-quality industrial valve featuring a brass body, two ports, and normally closed (NC) operation designed for 24V dc supply voltage. It supports air, oil, and water, making it versatile for various fluid power applications.
This valve offers an 8mm orifice diameter and is rated for a maximum operating pressure of 10 bar with temperature tolerance from -10°C to +50°C. Its robust design ensures reliable performance even in demanding industrial environments.
Equipped with threaded inlet and outlet connections, the solenoid valve features servo assist technology and a click-on design facilitating easy solenoid replacement without tools, enhancing maintenance efficiency.
Approved according to stringent standards including PED 97/23/EG, EN 61000-6-1, EN 61000-6-3, DIN EN 175301-803, and it provides IP65 protection under EN 60529 standards. It is also certified for hazardous area use with protection class x II 2 GD EEx me II T3 T 140°C and x II 3 GD EEx nA II T4 T 135°C.
This solenoid valve is ideal for use in industrial, HVAC, manufacturing, water treatment, and pneumatic systems where precise and reliable flow control is required under varying pressures and conditions. Optional vertical mounting is recommended for optimal performance.
Constructed with robust brass body material for longevity. Features threaded inlet and outlet connections with 8mm orifice diameter. Designed for maximum operating pressure of 10 bar and a temperature range from -10°C to +50°C.
Supports servo assist with easy maintenance via tool-free click-on solenoid interchange. Complies with multiple industrial standards including PED 97/23/EG and EN 60529 IP65 protection. Provides damped operation and supports optional vertical mounting for optimal performance.
Suitable for use in robust industrial and HVAC applications including air, oil, and water systems. Explore more Buschjost Solenoid Valves and similar industrial products at EnvMart for reliable fluid control solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating pressure of this solenoid valve is 10 bar.
The orifice diameter of this model is 8mm.
This solenoid valve operates on a supply voltage of 24V dc.
It has a temperature range from -10°C to +50°C.
It features threaded inlet and outlet connections.
It complies with multiple standards including PED 97/23/EG and provides IP65 protection under EN 60529.
Yes, it is certified for hazardous area use with protection class x II 2 GD EEx me II T3 T 140°C and x II 3 GD EEx nA II T4 T 135°C.
The default valve position for this solenoid valve is normally closed (NC).
This solenoid valve is constructed with a robust brass body material.
The flow factor Kv for this model is 1.9 m³/h.
The valve supports optional vertical mounting for optimal performance.
This model features two ports.
