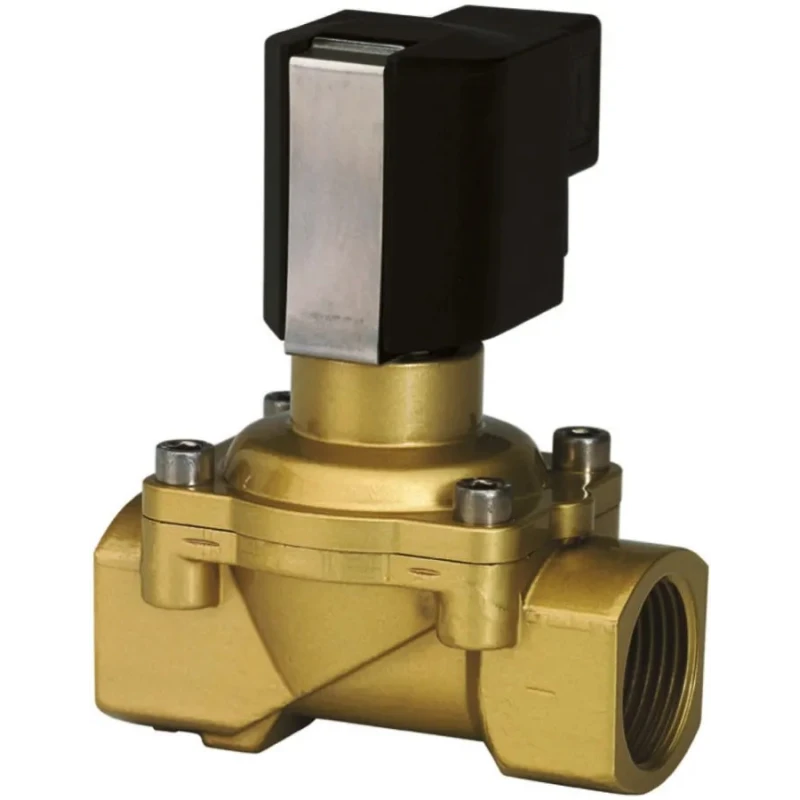

Buschjost Solenoid Valve 2 Port Normally Closed G 3/4 Threaded Brass Body 230V AC 10 bar 20mm Orifice 8254300.9154.23049

Buschjost 8254300.9154.23049 solenoid valve is a 2/2 way, normally closed valve with G 3/4 threaded inlet and outlet ports and brass body construction, operating at 230V AC supply voltage. This valve is engineered for fluid applications involving neutral gases and liquids such as air, oil, and water, making it suitable for robust industrial use cases.

It offers a high flow factor of Kv 5.8 m³/h and can maintain reliability in systems experiencing low or fluctuating pressures without requiring differential pressure for operation. The valve features a compact design that lends itself well to installation and operational efficiency.

The solenoid valve supports an operating pressure up to 10 bar with temperature conditions ranging from -10°C to +50°C. The valve's servo-assist mechanism enhances performance, and its click-on design allows the solenoid component to be replaced easily without the necessity for tools, reducing maintenance downtime.

Manufactured with a brass body and threaded connections for secure fittings, it ensures high durability and resistance in demanding environments. The valve complies with several industry standards including Pressure Equipment Directive 97/23/EG, EN 61000-6-1, DIN EN 175301-803, EN 60529 IP65, and electromagnetic compatibility to EN 61000-6-3.

Additionally, it carries hazardous area certifications of II 2 GD EEx me II T3 T 140 °C and II 3 GD EEx nA II T4 T 135 °C, making it suitable for use in classified environments. Installation allows for optional mounting positions though it is ideally mounted with the solenoid in a vertical orientation on top to optimize performance and longevity.

This solenoid valve is widely applicable across industries such as manufacturing, HVAC systems, water treatment plants, pneumatic and hydraulic systems, and other fluid power systems.

Compact functional design suitable for industrial applications. Operates without differential pressure, ideal for systems with low or fluctuating pressure. Compatible with air, oil, and water neutral fluids. Features a high flow rate with a 20mm orifice diameter.

Valve body made of durable brass material ensuring robustness. Maximum operating pressure is 10 bar, with temperature range from -10°C to +50°C. Includes servo assist and click-on solenoid interchangeable without tools. Certified with multiple standards including Pressure Equipment Directive and IP65 protection.

Designed for optional mounting positions, preferably vertical with solenoid on top. Explore more Solenoid Valves and related fluid power components on EnvMart, your reliable industrial supply partner.
