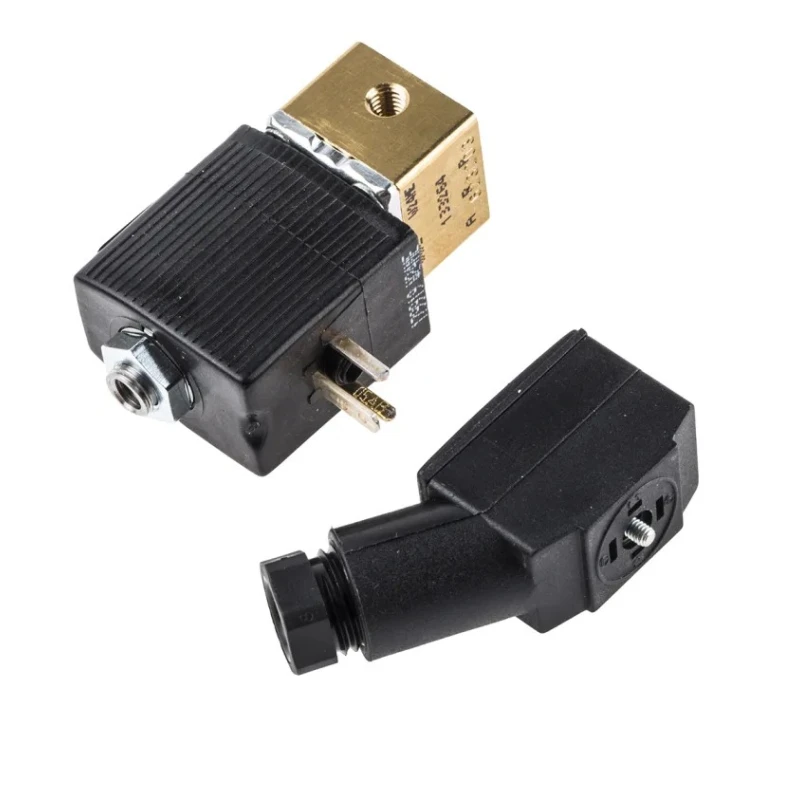

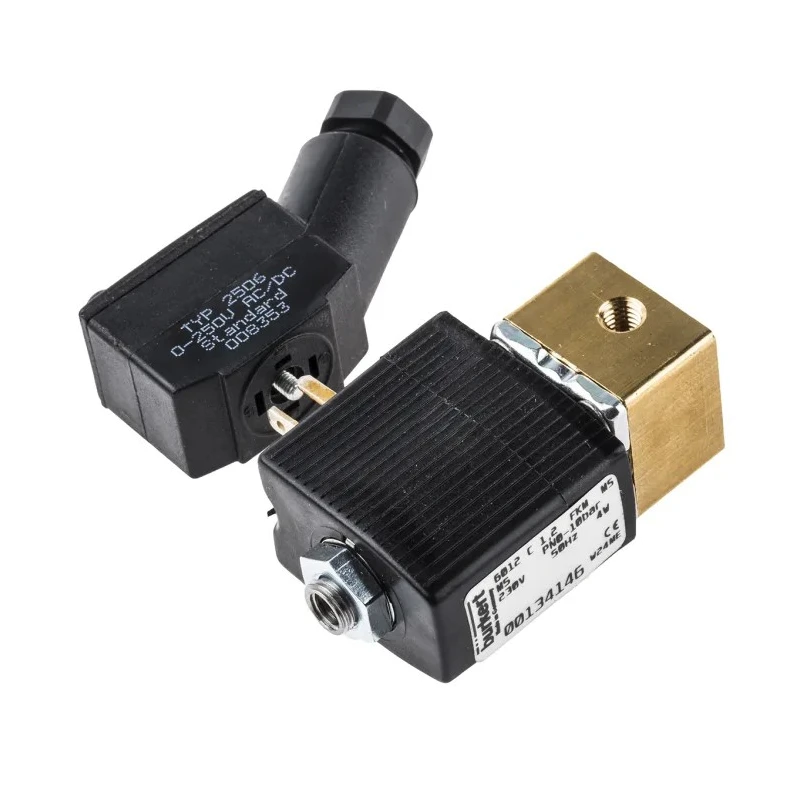

Burkert Brass Body 3 Port Normally Closed Solenoid Valve 230V AC 6012 Series 134146

Burkert 134146 is a 3 Port Normally Closed Solenoid Valve featuring a robust brass body and polyamide coil, operating at 230V AC. This valve belongs to the 6012 series and is engineered for gas and liquid fluid power applications in various industrial sectors including manufacturing, HVAC, and water treatment.

The valve is a miniature 3/2-way type with threaded port connections, designed for compactness and durability. The valve coil can be quickly replaced without disassembling the valve body, enhancing maintenance efficiency. It offers flexibility with coil locking available in any of four 90° angular positions.

Rated for a maximum operating pressure of 10 bar, it handles temperatures from -10°C to 55°C safely. The flow factor Kv of 0.045 m³/h supports precise fluid control. Both inlet and outlet ports have a female orientation with a generous 127 mm size, making it compatible with common pipeline systems.

Performance highlights include fast actuation with a maximum closing time of 12 ms and a maximum opening time of 10 ms. The valve coil consumes only 4W DC power, with an inrush current of 9VA and holding current of 6VA, suitable for efficient energy use. IP65 rated protection with a cable plug DIN43650C ensures reliable operation in demanding industrial environments.

This solenoid valve is suitable for use with compressed air, water, and hydraulic oil. It finds applications in automation, process control, and industrial fluid handling tasks, guaranteeing safe and reliable fluid switching.

Package includes the Burkert 134146 solenoid valve ready for integration with existing control systems. Originating from Germany, it upholds stringent manufacturing standards and quality checks.

Constructed with high-quality brass body and polyamide coil for durability. Designed as a 3/2-way valve with female inlet and outlet ports sized at 127 mm. Operates safely within a pressure range up to 10 bar and temperature range from -10°C to 55°C.

Valve coil can be easily changed without removing the valve and can lock in four different 90° positions. High-performance valve with flow factor Kv of 0.045 m³/h, suitable for gas and liquid applications. Default valve position is Normally Closed (NC) ensuring fail-safe operation.

Maximum closing time of 12 ms and opening time of 10 ms for rapid response. Coil power consumption rated at 4W DC with inrush current consumption of 9 VA. Provides IP65 protection with cable plug DIN43650C, appropriate for industrial environments.
