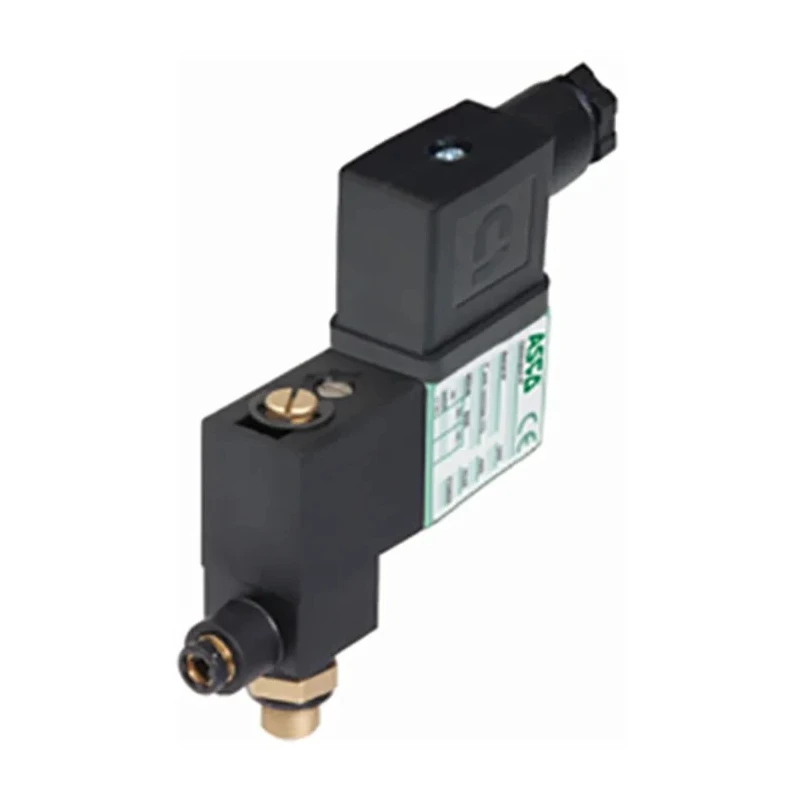

EMERSON ? ASCO Solenoid Valve 3 Port NC 24V DC 1/8 in Fibreglass Reinforced Polyamide Body 18900032.24/DC
Specifications
| Country of Origin | India |
|---|---|
| Brand | EMERSON ? ASCO |
| Body Material | Fibreglass Reinforced Polyamide |
| Maximum Operating Pressure | 10 bar |
| Inlet Connection Type | G ISO 228/1 |
| Model | 18900032.24/DC |
| Series | 189 |
| Number Of Ports | 3 |
| Maximum Operating Temperature | 60°C |
| Minimum Operating Temperature | -10°C |
| Orifice Diameter | 1.2mm |
| Supply Voltage | 24V dc |
| Inlet Port Size | 1/8 in |
| Default Valve Position | NC |
| Inlet Thread Standard | G ISO 228/1 |
| Maximum Opening Time | 20ms |
| Flow Factor Kv | 0.03m³/h |
Key Features
- The valve body is constructed from fibreglass reinforced polyamide for durability.
- It features a G ISO 228/1 inlet thread standard and connection type.
- The orifice diameter is 1.2 mm allowing precise flow control.
- Designed to operate within a temperature range of -10°C to 60°C.
- The maximum operating pressure is 10 bar suitable for a variety of industrial applications.
- The valve has a fast opening and closing time of 20 ms each for efficient operation.
- Flow factor Kv is rated at 0.03 m³/h optimizing air flow management.
- No hazardous area certification or standards approvals are provided for this model.
Product Description
EMERSON ASCO 18900032.24/DC Solenoid Valve is a 3 port normally closed valve engineered for air applications, operating on a 24V DC supply voltage. It features an inlet port size of 1/8 inch with G ISO 228/1 threads and connections, and is constructed from fibreglass reinforced polyamide to provide durability and chemical resistance.
This valve operates within an ambient temperature range from -10°C up to a maximum of 60°C and supports a maximum pressure of 10 bar. It has a finely sized orifice diameter of 1.2 mm which facilitates precise control of airflow in pneumatic systems. The valve offers rapid operation with maximum opening and closing times of 20 milliseconds each, ensuring responsive and efficient control for industrial automation needs.
The flow factor Kv of 0.03 m³/h denotes its capacity for fluid flow, optimized for accurate air handling in manufacturing and process control applications. While it does not carry specific hazardous area certifications or standards approvals, this valve is suitable for use in general industrial, laboratory, HVAC, and pneumatic fluid power settings.
This Solenoid Valve is part of ASCO's 189 series and complements accessories such as piston valve control solenoids, signalling supports, and mini-sensors compatible with the E290 series valves. These modules are designed for coordinated operation ensuring proportional valve opening relative to input signals, enhancing performance reliability in complex control systems.
EMERSON ASCO valves are widely utilized in pneumatic valve manifolds, industrial automation, and fluid control systems, delivering robust and precise operation necessary in diverse sectors including manufacturing, packaging, and process engineering.
The valve body is made of fibreglass reinforced polyamide for enhanced durability. It incorporates a 3-port configuration with normally closed default valve position. Operates on 24V DC voltage suitable for low voltage pneumatic control applications.
Orifice size of 1.2 mm for fine flow regulation. Maximum operating pressure of 10 bar and temperature range -10°C to 60°C. Fast response times with opening and closing durations of 20 milliseconds each. Compatible with a variety of industrial pneumatic and fluid power setups.
Designed to integrate with E290 series valve accessories for advanced control. Lacks hazardous area certifications and specific standards approvals. Ideal for industrial, HVAC, laboratory, and manufacturing pneumatic automation.
Explore the range of EMERSON ASCO Solenoid Valves and related pneumatic components in the Industrial Valves & Valve Fittings category at EnvMart for reliable automation and fluid control solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating pressure of this solenoid valve is 10 bar.
This model operates on a supply voltage of 24V DC.
The orifice diameter of this valve is 1.2 mm, facilitating precise flow control.
It operates within a temperature range of -10°C to 60°C.
The inlet connection type is G ISO 228/1, compatible with standard fittings.
The valve has a maximum opening and closing time of 20 milliseconds each.
The valve body is constructed from fibreglass reinforced polyamide, providing durability.
This model features a 3-port configuration with a normally closed default position.
The flow factor Kv is rated at 0.03 m³/h, optimizing air flow management.
This valve is suitable for use in general industrial, laboratory, HVAC, and pneumatic fluid power settings.
This model does not carry specific hazardous area certifications or standards approvals.
This solenoid valve is part of the ASCO 189 series.
