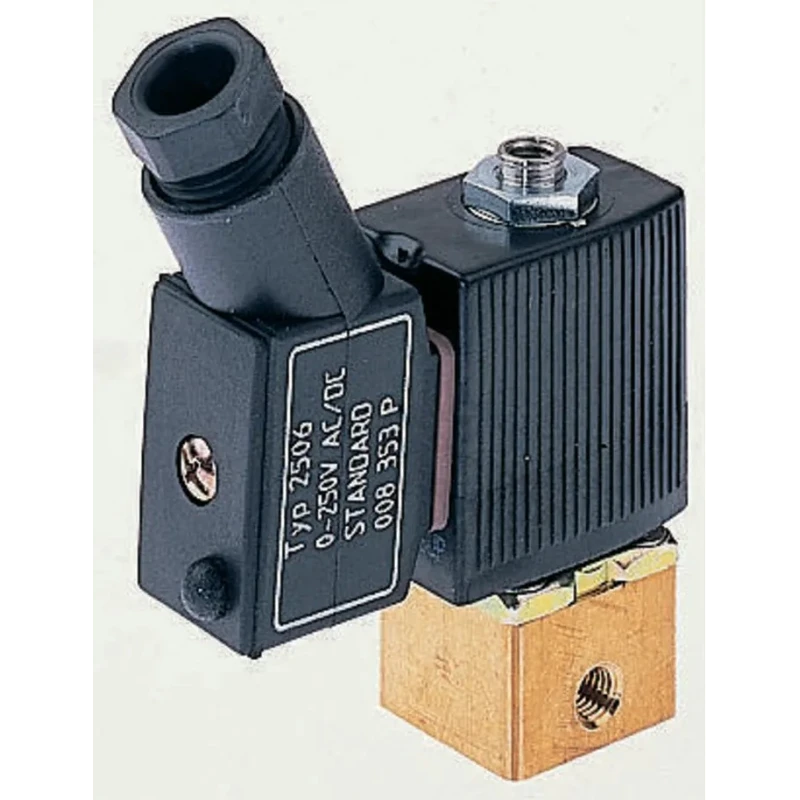

Burkert 3 Port Brass Body Solenoid Valve NC 24V DC 1.2mm Orifice Diameter 10 Bar 6012 Series 134159

Burkert 134159 is a 3 port normally closed (NC) solenoid valve designed for precise control of gases and liquids in industrial and process automation applications. It features a brass body combined with a polyamide coil and a high-quality FKM seal, providing durability and chemical resistance suitable for a wide range of media including compressed air, water, and hydraulic oil.

This valve belongs to the 6012 Series of miniature threaded port solenoid valves. The coil can be easily replaced even with the valve installed, and it can be locked in any of four 90-degree positions or moved freely as needed for installation flexibility.

The valve operates at 24V DC with a power consumption of 4W during hold and a 9VA inrush current. It supports a maximum operating pressure of 10 bar and maintains reliable operation within an ambient temperature range of -10 to +100°C. The orifice diameter of 1.2mm and 3.18 mm female inlet and outlet port sizes enable controlled fluid flow with a flow factor Kv of 0.045 m³/h.

This solenoid valve delivers response times with maximum opening and closing durations of 7 ms and 9 ms, respectively, making it suitable for precise fluid power and automation control tasks. Its IP65 protection rating with a cable plug (DIN43650C) ensures robust performance in industrial settings where moisture or dust exposure is a concern.

This miniature 3/2-way solenoid valve is engineered for compressed air, inert gases, and fluid handling. The valve design supports use in pneumatic, water treatment, HVAC, and manufacturing industries. Its brass body and high-quality seals ensure durability in demanding environments.

The coil replacement flexibility and multiple locking positions simplify maintenance and installation. The valve's fast response times minimize downtime and improve system efficiency. IP65 rated protection counters exposure to dust and water, expanding application scope.

Manufactured in Germany, the Burkert 134159 solenoid valve combines precise engineering and quality materials to provide dependable fluid control solutions suitable for industrial, laboratory, and commercial applications. Browse EnvMart's extensive Solenoid Valve category to find complementary valves, coils, and accessories for your fluid control needs.
