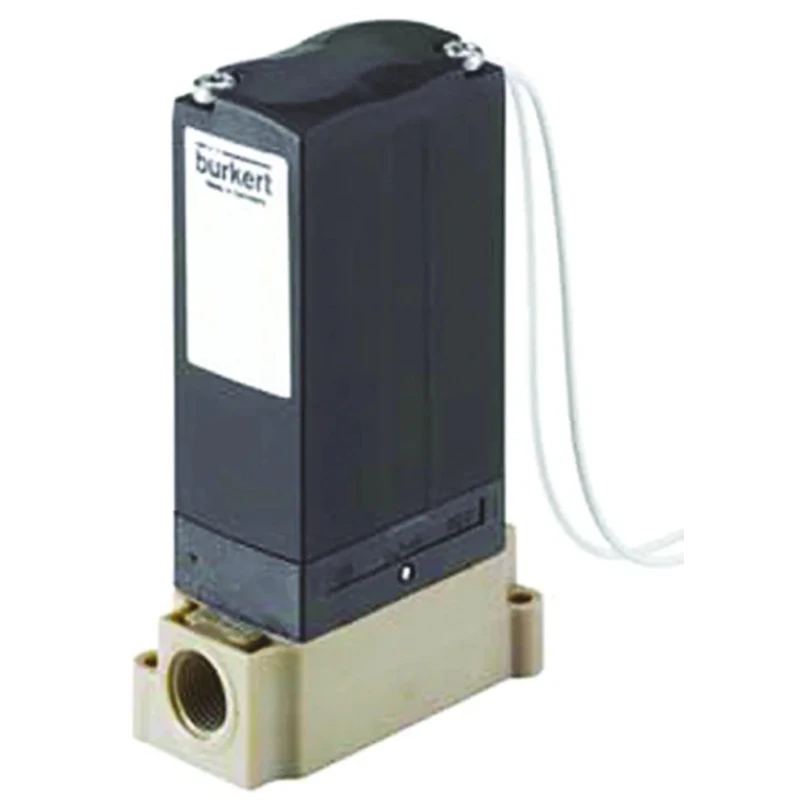

Burkert 2 Port Solenoid Valve 24V dc, Threaded Inlet & Outlet 3.18 mm, Polyetheretherketone Body 241807

Burkert 241807 2 Port Solenoid Valve 24V dc with a polyetheretherketone body is engineered for industrial and laboratory use where control of aggressive fluids and gases is required. The valve supports threaded female inlet and outlet connections sized at 3.18 mm with G standard threading.

Ideal for applications in analytical instrumentation, medical devices, food processing, and chemical dosing, this direct-acting solenoid valve offers 2/2 and 3/2 rocker valve configurations. It provides a compact 22 mm form factor operating at a 24V DC supply voltage.

The valve has a low 5W power consumption and achieves IP54 ingress protection, ensuring reliability in challenging environments. Its isolating diaphragm design enables easy cleaning, and the small internal volume of 200 microliters reduces contamination risk. The recommended installation is upright to maintain optimal performance.

Operating temperature range spans from 10°C to 55°C with a maximum pressure tolerance of 2 bar. The valve’s quick actuation with maximum opening and closing times of 25 milliseconds and a flow factor Kv of 0.17 m³/h enable precise flow control.

This product is manufactured in Germany and does not carry hazardous area certification or additional standards approvals. Servo assist is not included. This solenoid valve features a robust polyetheretherketone body material for chemical resistance.

It includes threaded inlet and outlet connections conforming to G thread standards. The valve operates at a supply voltage of 24V DC with a maximum operating pressure of 2 bar. Suitable for use in analytical, medical, food, and chemical dosing applications.

Compact 22mm design with low power consumption of 5W and IP54 protection rating. The valve supports upright installation with an isolating diaphragm for easy cleaning. Maximum operating temperature is 55°C and minimum operating temperature is 10°C.

The valve’s flow factor Kv is 0.17 cubic meters per hour, allowing precise fluid control. Explore more Solenoid Valves and industrial valve fittings at EnvMart for your precise fluid control solutions.
