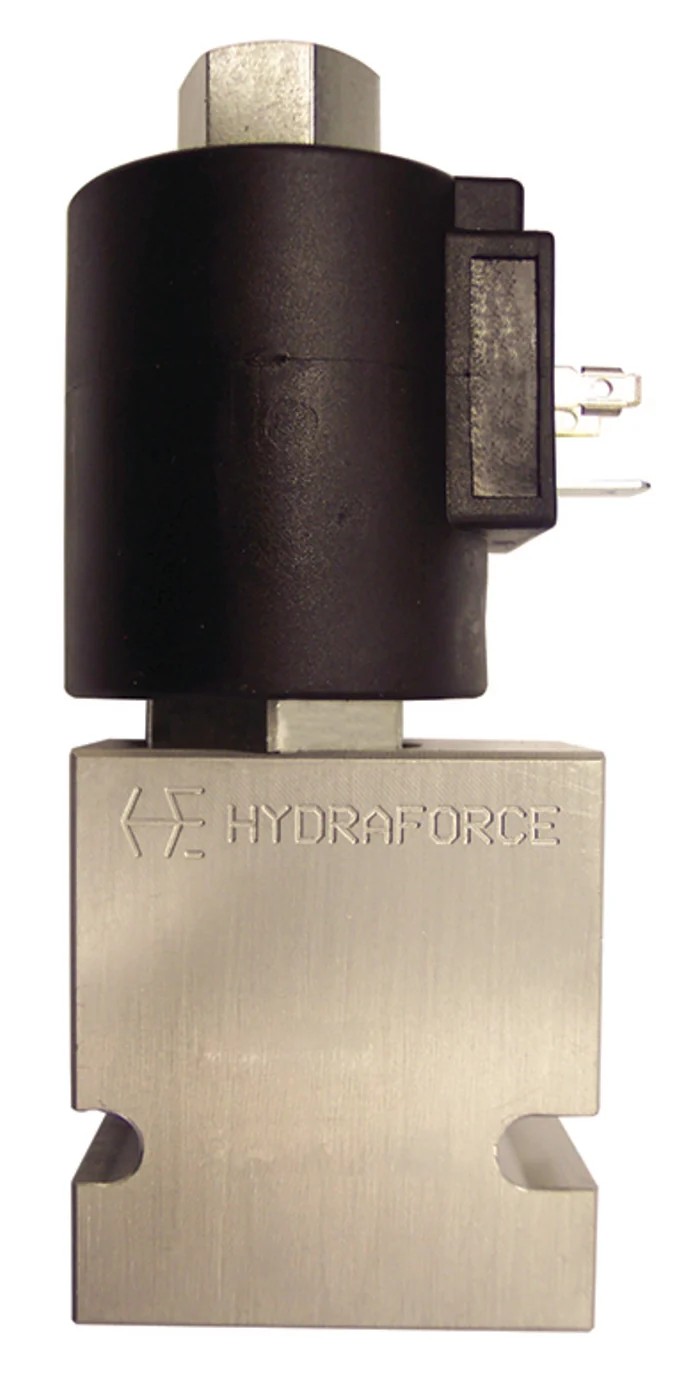

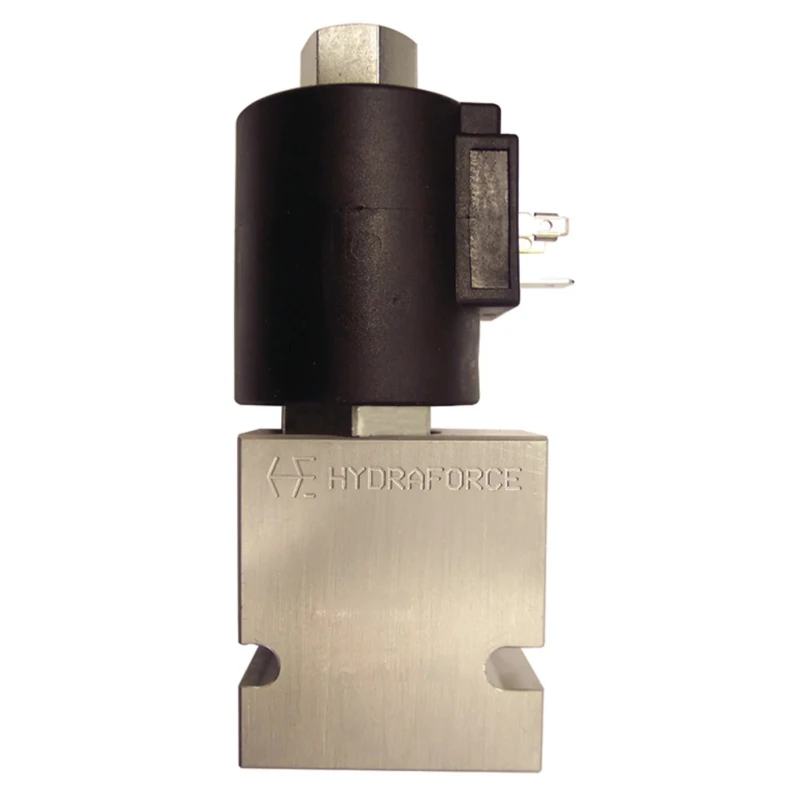

HydraForce Solenoid Valve 2 Port Normally Open 24V 3/8 in Aluminium Body SV10-23-3B-N-24DG

HydraForce SV10-23-3B-N-24DG is a solenoid-operated, screw-in hydraulic cartridge valve featuring 2 ports and a normally open (NO) valve position. It operates with a 24V DC supply voltage and accommodates 3/8 inch inlet and outlet port sizes, making it suitable for various fluid power applications. The valve body is made of aluminium, providing robust mechanical strength and corrosion resistance.

This valve is primarily used in load holding and low leakage blocking hydraulic circuits, capable of withstanding a maximum operating pressure of 207 bar. Its hardened seat ensures excellent leak-tight performance and extended service life in demanding industrial settings.

The SV10-23 series supports continuous-duty operation with an efficient wet-armature solenoid design, optimized for reliability and energy efficiency. It features a 46.6 mm orifice diameter that supports fluid flow at a rate of 68.1 L/min (Kv), ensuring smooth and controlled hydraulic function.

Operating temperature ranges from -40°C to 100°C allow for versatile use in diverse environments. With optional coil voltages and terminations available, including waterproof E-Coils rated up to IP69K, this valve is well-suited for harsh or outdoor installations.

Manufactured in the United Kingdom, this valve complies with industry standards but does not carry hazardous area certification.

Typical industrial applications include fluid power systems in manufacturing plants, construction machinery hydraulics, agricultural equipment, and mobile hydraulic systems where dependable load holding and leakage control are critical.

Constructed with durable aluminium body ensuring long mechanical life. Continuous-duty rated solenoid with efficient wet-armature design. Hardened seat for low leakage and extended valve lifespan. Supports maximum operating pressures up to 207 bar.

Operates reliably in temperature ranges from -40°C to 100°C. Orifice diameter of 46.6 mm allows high fluid flow (Kv 68.1 L/min). Voltage interchangeable cartridges for flexible system configurations. Optional waterproof E-Coils rated to IP69K for harsh applications.

Designed for load holding and low leakage blocking hydraulic functions. Explore our range of industrial Solenoid Valves for fluid power and hydraulic applications on EnvMart for reliable performance and high quality components.
