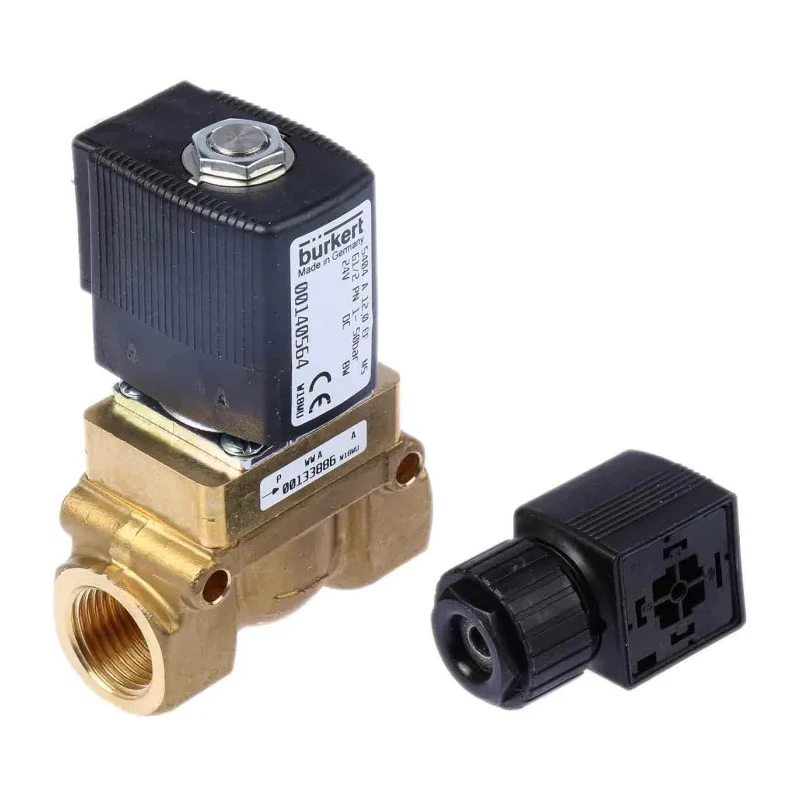

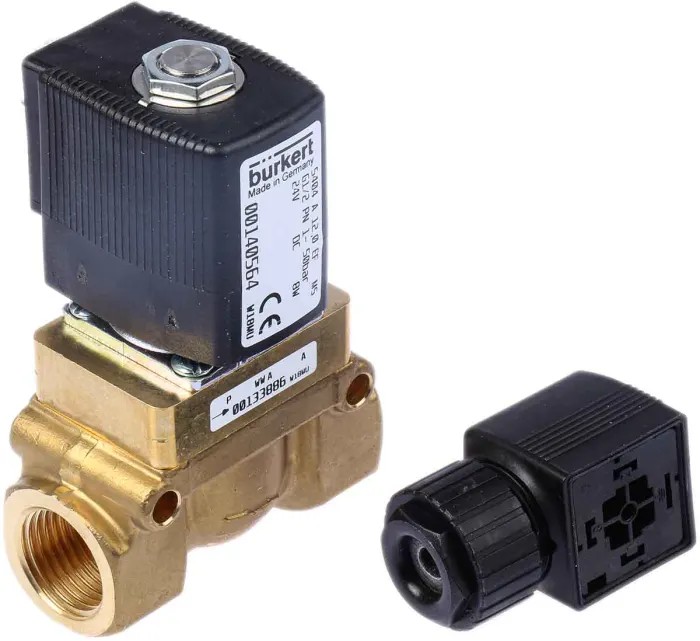

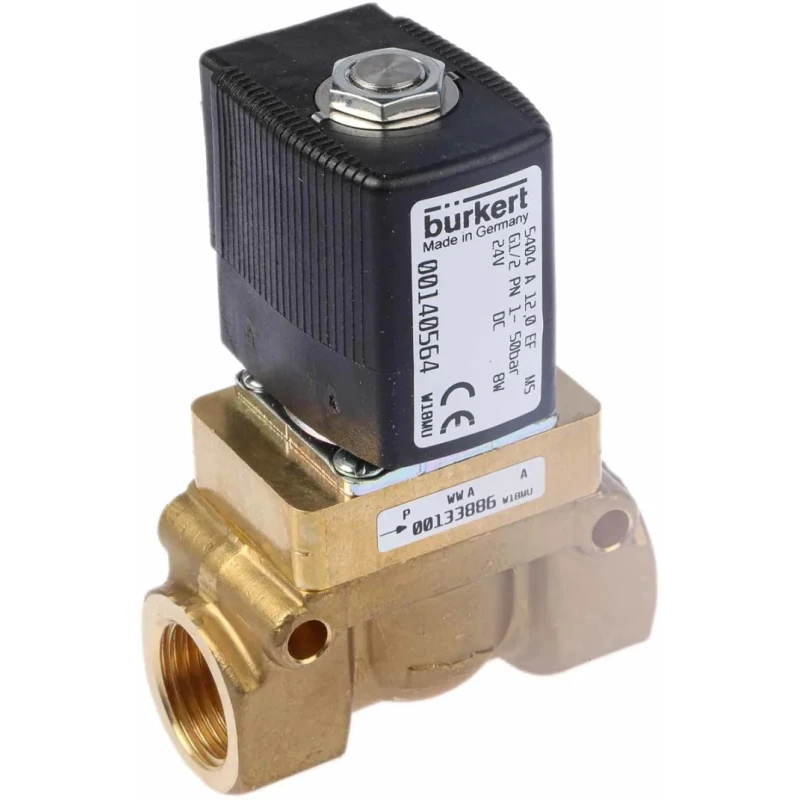

Burkert 2-Port Normally Closed Brass Solenoid Valve, 24V dc, 12mm Orifice, Max 50 bar Operating Pressure 140564
Specifications
| Country of Origin | Germany |
|---|---|
| Brand | Burkert |
| Body Material | Brass |
| Maximum Operating Pressure | 50 bar |
| Model | 140564 |
| Series | 5404 |
| Number Of Ports | 2 |
| Maximum Operating Temperature | 55°C |
| Minimum Operating Temperature | -10°C |
| Orifice Diameter | 12mm |
| Supply Voltage | 24V dc |
| Hazardous Area Certification | PTB No. Ex-95.D.2043X |
| Default Valve Position | NC |
| Maximum Opening Time | 400ms |
| Flow Factor Kv | 2m³/h |
| Maximum Closing Time | 1.5s |
| RS PRO Solenoid Valve, 2 Port, NC 1/2 in, 24V dc, 1/2 inRS Stock No. | 235-1117Brand: RS PRO |
| Solenoid Valve, 2 port(s) , 24 V dcBrand | Burkert |
| Burkert Solenoid Valve 134592, 2 Port, NC, 110V acBrand | Burkert |
| Burkert Solenoid Valve 221606, 2 Port, NC 1/2 in, 24V dc, 1/2 inBrand | Burkert |
Key Features
- Operates under a maximum pressure of 50 bar ensuring robust performance.
- Features servo-assisted piston valve technology for quick switching between 400ms opening and 1.5s closing times.
- Suitable for applications involving compressed air, hydraulic oil, neutral media, and water.
- Body constructed of brass with a polyamide coil for durability and corrosion resistance.
- Operating temperature range from -10°C to 55°C for versatile environmental use.
- Coil design allows locking in four 90-degree positions for installation flexibility.
- High flow factor Kv at 2m³/h optimizes fluid throughput efficiency.
- Includes hazardous area certification PTB No. Ex-95.D.2043X for safety in specific environments.
Product Description
Burkert 140564 is a high-quality 2-port normally closed brass solenoid valve designed for fluid control in industrial environments. It operates with a 24V DC supply and features a 12mm orifice diameter, enabling efficient flow with a flow factor Kv of 2m³/h. The valve can handle maximum operating pressures up to 50 bar and temperature ranges from -10°C to 55°C, suitable for compressed air, hydraulic oil, neutral media, and water applications.

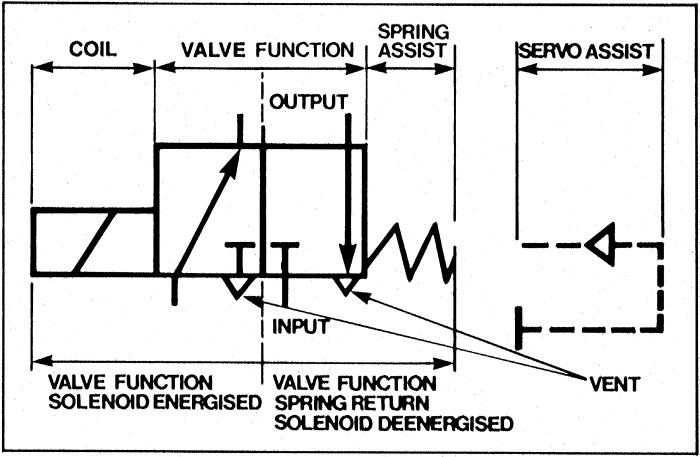

The valve incorporates servo-assisted piston technology for rapid actuation, featuring a maximum opening time of 400 milliseconds and a closing time of 1.5 seconds. Its brass body with a polyamide coil provides corrosion resistance and durability, supporting high reliability in demanding industrial applications.
This solenoid valve includes hazardous area certification PTB No. Ex-95.D.2043X and is rated IP65 for protection against dust ingress and water jets, making it optimal for environments requiring explosion proof safety and environmental resistance.
The coil can be locked in four 90-degree positions, providing flexible installation options. This product is manufactured in Germany adhering to stringent quality and performance standards, ensuring consistent and long-lasting operation.
Operates with a 24V DC supply voltage providing energy-efficient performance. Maximum operating pressure up to 50 bar suitable for high-pressure systems. 12mm orifice diameter delivering effective flow control in process systems.
Brass body construction for strength, durability, and corrosion resistance. Servo-assisted piston valve technology enabling quick valve response. Operating temperature span of -10°C to 55°C for versatile application environments.
IP65 rated protection and hazardous area certified enhancing safety and reliability. Coil design allows locking in multiple orientations for installation adaptability. Ideal for industrial, manufacturing, HVAC, fluid power, water treatment, and pneumatic systems.
Backed by Burkert's reputation for precision and industrial-grade valve manufacturing. Explore more Solenoid Valves and industrial valves on EnvMart to find the best solution for your application challenges.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating pressure of this solenoid valve is 50 bar.
The orifice diameter of the Burkert 140564 model is 12mm.
This solenoid valve operates with a supply voltage of 24V DC.
The flow factor Kv of this model is 2m³/h, optimizing fluid throughput efficiency.
The valve has a maximum opening time of 400 milliseconds and a closing time of 1.5 seconds.
The valve features a brass body and a polyamide coil, providing corrosion resistance and durability.
The operating temperature range for this solenoid valve is from -10°C to 55°C.
Yes, this valve includes hazardous area certification PTB No. Ex-95.D.2043X.
The default valve position for this model is normally closed (NC).
The coil design allows locking in four 90-degree positions, providing flexibility for installation.
This solenoid valve is suitable for applications involving compressed air, hydraulic oil, neutral media, and water.
This solenoid valve is manufactured in Germany, adhering to stringent quality and performance standards.
