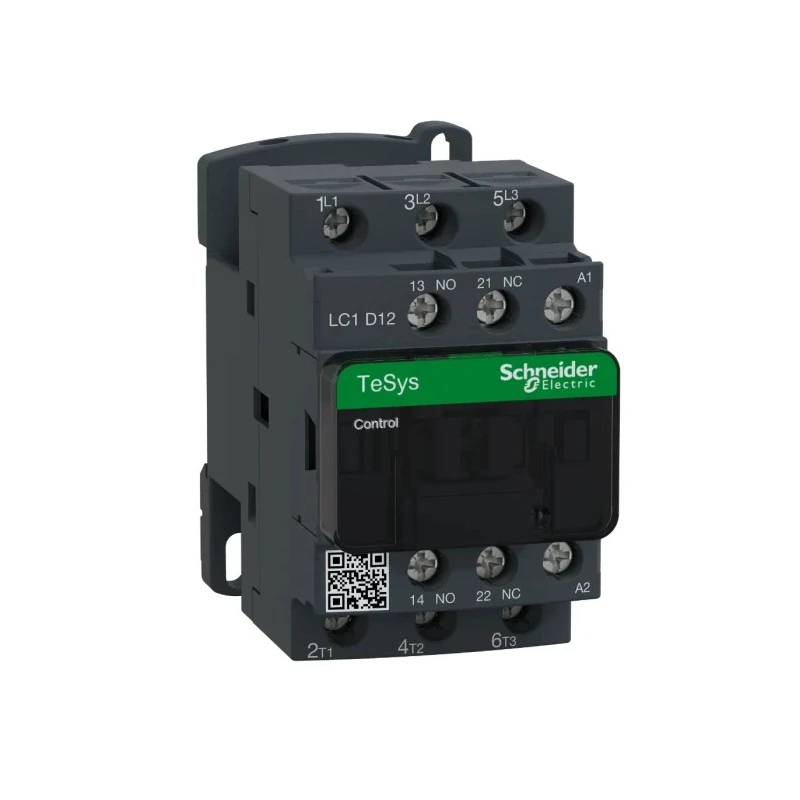

Schneider Electric LC1D TeSys D Contactor, 115V AC Coil, 3-Pole, 12 A, 5.5 kW, 3 NO Contacts, 440V AC LC1D12FE7
Specifications
| Country of Origin | France |
|---|---|
| Brand | Schneider Electric |
| Function | Motor Control, Resistive Load |
| Length | 77mm |
| Model | LC1D12FE7 |
| Depth | 86mm |
| Width | 45mm |
| Mount Type | DIN Rail |
| Series | LC1D |
| Power Rating | 5.5kW |
| Maximum Operating Temperature | 60°C |
| Minimum Operating Temperature | -5°C |
| Terminal type | Screw |
| Number of Poles | 3 |
| Standards/Approvals | CCC, CSA, EAC, EN 60947-5-1, IEC, RoHS, UL |
| Contact Voltage | 440V ac |
| Coil Voltage | 115V ac |
| Normal State Configuration | 3 NO |
| Better World Claim | Designed for Disassembly |
| Contact Current | 12A |
| Number of Auxiliary Contacts | 2 |
| Auxiliary Contact Configuration | 1 NO/1 NC |
| Operational Current Ie | 12A |
| Control Circuit Voltage Uc | 115V ac |
| Contactor Application | Motor Control, Resistive Load |
| Pole and Throw Configuration | 3 |
| Screw connections | IP20 finger-safe terminals with both North American and International terminal markings |
| AC-1 | This applies to all AC devices with a power factor of at least 0.95. Example of use: resistive load, heating, distribution |
| AC-3 | This applies to squirrel cage motors where breaking occurs while the motor is running. Example of use: all squirrel cage motors, lifts, escalators, conveyors, bucket elevators, compressors, pumps, mixers, air conditioning units |
Key Features
- Operates at a coil voltage of 115V AC ensuring reliable activation.
- Equipped with 3 poles and 3 normally open contacts rated for 12 A current.
- Power rated at 5.5 kW suitable for various AC resistive and motor applications.
- Comes with 2 auxiliary contacts configured as 1 NO and 1 NC for additional switching。
- Mountable via DIN rail or panel screws for flexible installation options.
- Designed with IP20 finger-safe screw terminals with dual international markings.
- Operates within -5°C to 60°C temperature range, suitable for industrial environments.
- Includes built-in protection with bidirectional peak limiting diode suppressor for coil.
Product Description
Schneider Electric brand LC1D12FE7 model TeSys D series contactor features a 115V AC coil voltage and 3-pole configuration designed for controlling motors and resistive loads.
This contactor provides a contact current rating of 12 A with a power handling capacity of 5.5 kW at 440V AC contact voltage. It is engineered for industrial and commercial automation and control gear applications.
It includes 3 normally open main contacts and 2 auxiliary contacts (1 NO, 1 NC) allowing extended switching capability. The unit mounts easily on DIN rail or panel using screws, with IP20 finger-safe terminals marked for North American and international use.
The operational temperature range spans from -5°C to 60°C, ensuring robust performance in typical industrial settings. The coil incorporates a bidirectional peak limiting diode suppressor to protect against voltage spikes.
Compliant with international standards such as CCC, CSA, EAC, EN 60947-5-1, IEC, RoHS, and UL, this Schneider Electric contactor guarantees safety and reliability in demanding control systems. The product is made in France and part of Schneider Electric's Better World initiative designed for disassembly and sustainability.
Operates at 115V AC coil voltage with 3 poles and 3 normally open contacts. Supports a contact current of 12 A and power rating of 5.5 kW at 440V AC. Equipped with 2 auxiliary contacts (1 NO, 1 NC) for additional switching control.
Mountable on DIN rail or panel with screw terminals rated IP20 finger-safe. Designed for motor control and resistive load applications with high reliability. Operational temperature range from -5°C to 60°C for industrial use.
Includes bidirectional peak limiting diode for coil protection. Manufactured in France with compliance to multiple international standards. Part of Schneider Electric's Better World program focused on environmental sustainability.
Perfect for electrical, automation, manufacturing, HVAC, and industrial control applications. Explore more Schneider Electric Contactors in the Automation & Control Gear category on EnvMart.
