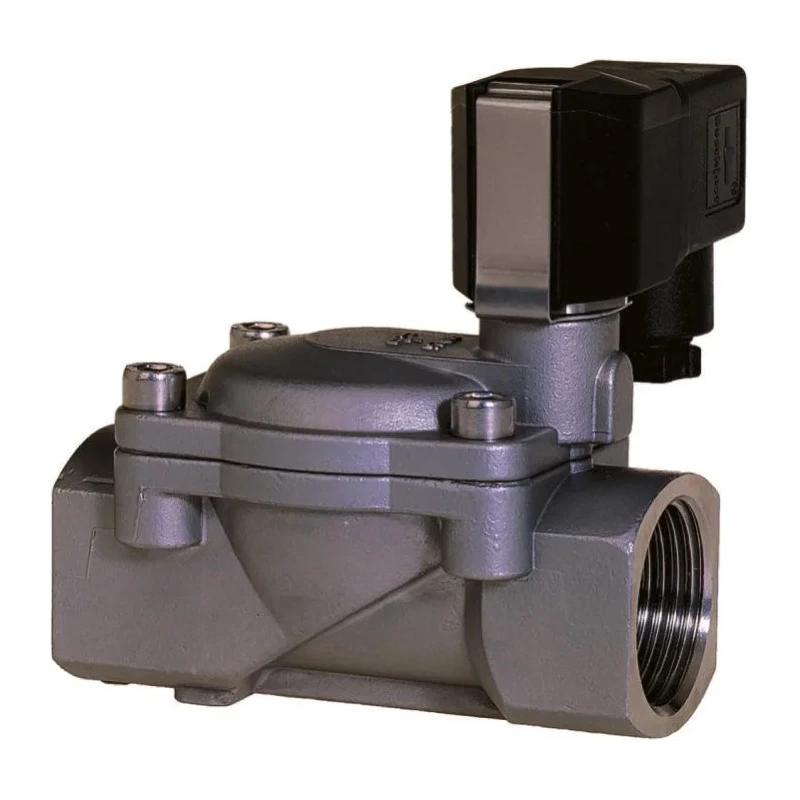

Buschjost Stainless Steel 2 Port NC Solenoid Valve G 3/4 Threaded Internal Thread 24V dc 20mm Orifice 8273300.9101.02400
Specifications
| Country of Origin | Germany |
|---|---|
| Brand | Buschjost |
| Body Material | Stainless Steel |
| Maximum Operating Pressure | 16 bar |
| Inlet Connection Type | Threaded |
| Outlet Connection Type | Internal Thread |
| Series | 82730 |
| Number Of Ports | 2 |
| Maximum Operating Temperature | 50°C |
| Minimum Operating Temperature | -10°C |
| Orifice Diameter | 20mm |
| Supply Voltage | 24V dc |
| Hazardous Area Certification | II 2 GD EEx m II T4 T 130 °C |
| Standards/Approvals | UL Listed, DIN EN 175301-803, EN 60529:IP65, DIN VDE 0580, CSA |
| Inlet Port Size | G 3/4 |
| Default Valve Position | NC |
| Flow Factor Kv | 6.1m³/h |
| Standards/ApprovalsUL Listed, DIN EN 175301-803, EN 60529 | IP65, DIN VDE 0580, CSA |
Key Features
- Valve is normally closed (NC) with 2 ports for fluid control.
- Maximum operating pressure is 16 bar suitable for industrial applications.
- Operating temperature range is from -10°C to 50°C.
- Includes servo assist and complies with UL, DIN EN, VDE, CSA standards ensuring reliable operation.
- Constructed with stainless steel for durability and resistance to aggressive environments.
- Designed for slightly aggressive gases and vacuum applications with compact magnet actuator.
- Magnet is replaceable without tools using the Click-on® system.
- Provides a flow factor Kv of 6.1m³/h ensuring efficient fluid throughput.
Product Description
Buschjost 8273300.9101.02400 is a high-quality 2 port normally closed (NC) solenoid valve constructed from robust stainless steel, designed to handle slightly aggressive gases. Operating at 24V DC, this valve features G 3/4 threaded inlet and internal thread outlet connections, with a 20mm orifice diameter, suitable for precise fluid control in demanding industrial environments.
The valve supports a maximum operating pressure of 16 bar and can withstand temperatures ranging from -10°C to 50°C, making it versatile for a variety of applications including vacuum systems. Its compact actuation magnet with an integrated sleeve allows operation without minimum pressure differential, facilitating smooth control.
Equipped with servo assist for enhanced responsiveness, this valve meets several standards and approvals including UL Listing, DIN EN 175301-803, EN 60529 (IP65 rated), DIN VDE 0580, and CSA certifications, ensuring safety and reliability. Additionally, it holds hazardous area certification II 2 GD EEx m II T4 T 130 °C.
The innovative Click-on® magnet replacement design allows easy maintenance without tools, reducing downtime. With a flow coefficient (Kv) of 6.1m³/h, it efficiently manages flow rates required for industrial processing.
Manufactured in Germany, the solenoid valve exemplifies precision engineering and durability against challenging environments and slightly aggressive gases found in industrial, laboratory, HVAC, manufacturing, and water treatment sectors.
Valve is normally closed with 2 ports for reliable fluid shutoff. Constructed from stainless steel for corrosion resistance and longevity. Operates at 24V DC supply voltage with threaded G 3/4 connections. Supports maximum pressure of 16 bar and temperature range from -10°C to 50°C.
Includes servo assist and meets international safety standards and hazardous area certifications. Click-on® tool-free magnet replacement for easy servicing. Flow factor Kv of 6.1m³/h suitable for efficient flow control. Ideal for slightly aggressive gases and vacuum applications.
Designed for industrial, laboratory, HVAC, manufacturing, and water treatment uses. Manufactured in Germany guaranteeing superior quality and performance. Explore more high-quality Solenoid Valves and related industrial valves at EnvMart for your operational needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating pressure of this solenoid valve is 16 bar.
This model operates within a temperature range of -10°C to 50°C.
The orifice diameter of this solenoid valve is 20mm.
It features a G 3/4 threaded inlet connection and an internal thread outlet connection.
The flow factor (Kv) of this valve is 6.1m³/h, which ensures efficient fluid throughput.
It complies with UL, DIN EN 175301-803, EN 60529 (IP65 rated), DIN VDE 0580, and CSA standards.
Yes, it is designed for slightly aggressive gases and vacuum applications.
The default position of this valve is normally closed (NC).
The magnet can be replaced without tools using the Click-on® system, allowing for easy maintenance.
This model is manufactured in Germany.
The supply voltage required for this solenoid valve is 24V DC.
It is suitable for use in industrial, laboratory, HVAC, manufacturing, and water treatment applications.
