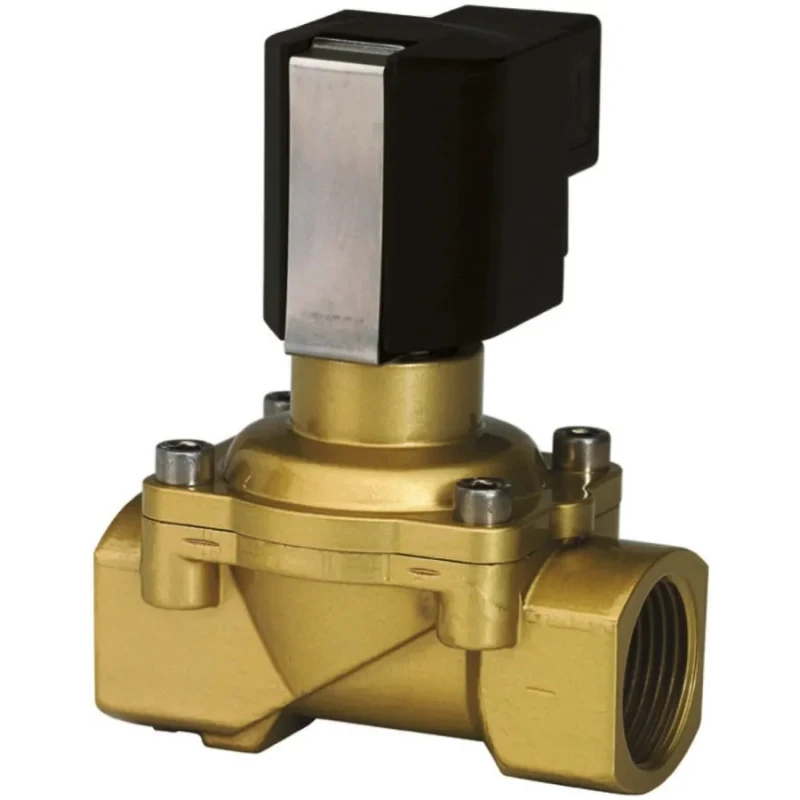

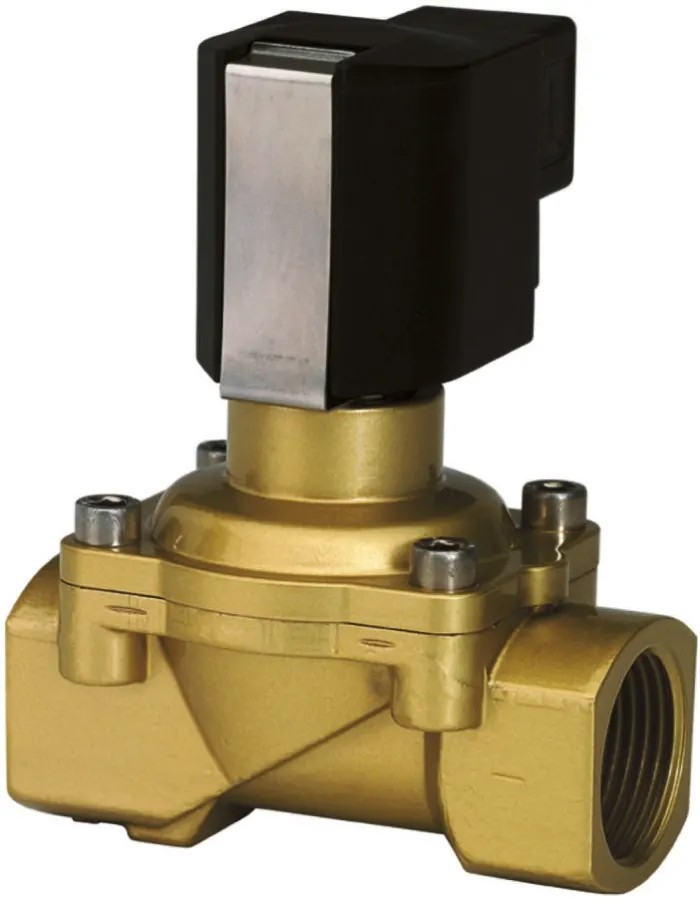

Buschjost Solenoid Valve, 2 Port, Normally Closed, Brass Body, 24V DC, G 3/8, 10mm Orifice Diameter 8254100.9151.02400

Buschjost 8254100.9151.02400 solenoid valve is a 2/2 way normally closed valve with a brass body designed for industrial and manufacturing applications. It operates at 24V DC and has threaded G 3/8 inlet and outlet ports with a 10mm orifice diameter. This valve is ideal for neutral gaseous and liquid fluids including air, oil, and water, making it versatile for fluid power systems.

The valve is engineered to handle low or fluctuating pressure systems effectively without requiring differential pressure and is suitable for vacuum use. Its compact and robust design includes a click-on solenoid feature allowing easy installation and removal without tools. The valve’s body material brass provides durability and resistance to wear.

Operating pressure of up to 10 bar and temperature range from -10°C to +50°C ensure reliability under various industrial conditions. The valve includes servo assist and damped operation for smooth and controlled valve movement.

It meets extensive international standards and approvals such as EN 61000-6-3, EN 60529 IP65 for protection, DIN EN 175301-803, CE marking, DIN VDE 0580, and PED 97/23/EG. Additionally, it holds hazardous area certifications (II 3 GD EEx nA II T4 T 135 °C, II 2 GD EEx me II T3 T 140 °C), making it suitable for use in potentially explosive environments.

The valve’s high flow factor Kv of 3 m³/h supports efficient fluid flow, enhancing system performance. Its reliable construction and compliance with industry standards make it suitable for diverse uses in manufacturing, industrial automation, HVAC, water treatment, and pneumatic systems.

This solenoid valve is suitable for controlling neutral gases and liquids including air, oil, and water. Compact and sturdy brass body with threaded G 3/8 inlet and outlet connections. Operates at 24V DC with a 10mm orifice diameter, providing a flow factor Kv of 3 m³/h.

Designed for low or fluctuating pressure systems and vacuum applications. Includes servo assist for smooth valve operation and is damped for reduced wear. Meets multiple certifications including CE, PED, EN 61000-6-3, and hazardous area approvals.

Maximum operating pressure of 10 bar and temperature range from -10°C to +50°C. Click-on solenoid feature allows easy tool-free maintenance and replacement. Explore more Solenoid Valves and industrial valve fittings of Buschjost and other leading brands on EnvMart for reliable and efficient fluid control solutions.
