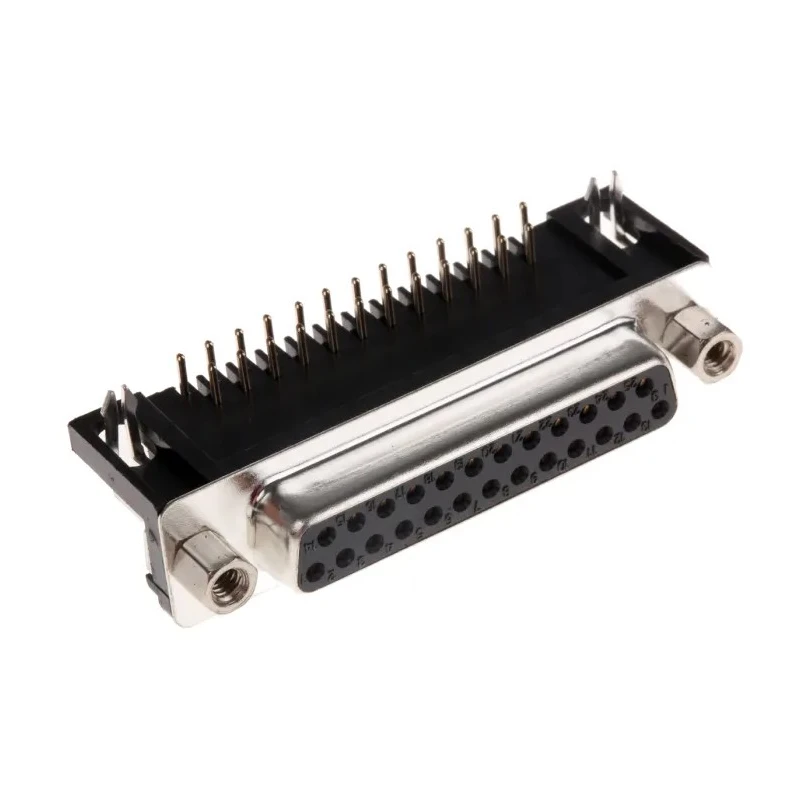

ASSMANN WSW D-Sub Connector Right Angle 25 Contacts 2.77 mm Pitch Through Hole 4 to 40 UNC Screw Lock Female A-DF 25 A/KG-T1

ASSMANN WSW A-DF 25 A/KG-T1 is a high-quality right angle D-Sub connector designed for electronic and industrial applications requiring secure and reliable PCB connections. Featuring 25 contacts with a pitch of 2.77 mm, this connector supports a maximum current of 3 amperes and voltage rating up to 250 volts. It is built with a polybutylene terephthalate housing material that provides excellent durability and insulation under diverse operational environments.

The solder termination type ensures robust and stable mounting on printed circuit boards. The connector includes a 4 to 40 UNC screw lock as mounting hardware, offering a secure mechanical fastening to prevent accidental disconnections in industrial or manufacturing setups. The contact components are made from brass and plated with nickel and gold to enhance conductivity and resist corrosion, supporting long-term performance.

Operating across a broad temperature range from -40°C to 105°C, this component is suitable for various conditions typically encountered in electronics manufacturing, automotive, telecommunications, and instrumentation. The female connector gender and DF-25 shell size conform to standardized D-Sub Connector formats, facilitating compatibility with a wide range of equipment and assemblies.

Although this component does not specify particular certifications, its robust material selection and design make it reliable for industrial, laboratory, and commercial electronic systems. It is made in China and offers a dependable solution for makers and maintainers of electronic hardware requiring durable, high-current rated connector systems.

The connector features a solder termination type for reliable soldering to circuit boards. It supports a maximum current rating of 3A and voltage rating of 250V. Durable polybutylene terephthalate housing offers stability and insulation.

Contact material is brass with nickel and gold plating for corrosion resistance and optimal conductivity. It includes a 4 to 40 UNC screw lock for secure mechanical connection. Operational temperature range is from -40°C to 105°C, suitable for varying environmental conditions.

Connector gender is female with the shell size designated as DF-25. This connector does not carry specific standards or approvals but follows the A-DF series design. Manufactured in China, it is intended for industrial and electronic applications requiring reliable PCB connectivity.
