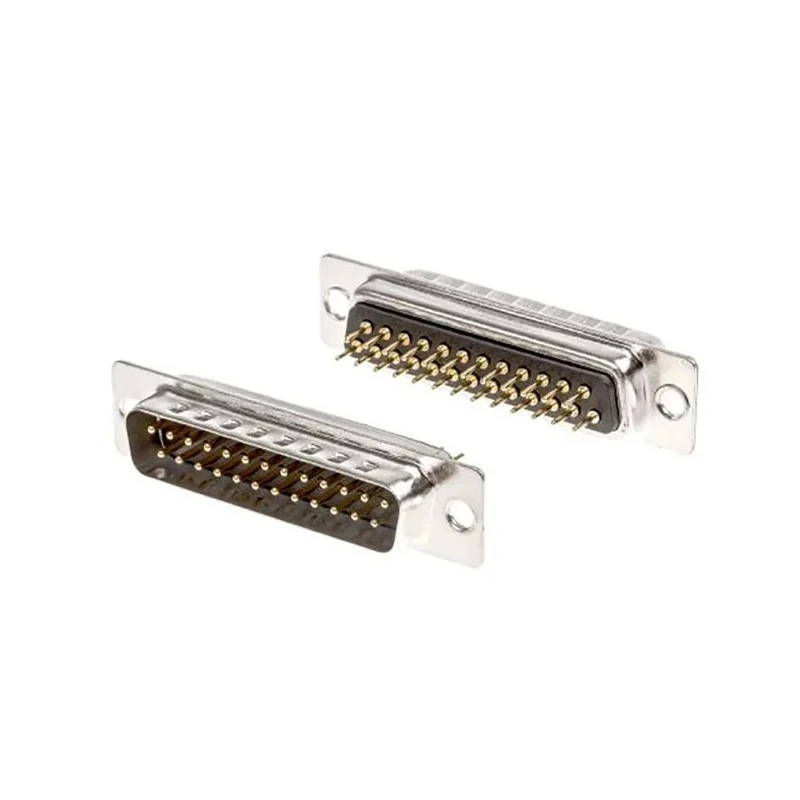

ASSMANN WSW 25 Way Straight 2.77 mm Pitch Through Hole D-Sub Connector Male A-DS 25 PP/Z

Free Delivery in India | Lowest Global Shipping Charges

ASSMANN WSW 25 Way Straight 2.77 mm Pitch Through Hole D-Sub Connector Male A-DS 25 PP/Z

Name: ASSMANN WSW 25 Way Straight 2.77 mm Pitch Through Hole D-Sub Connector Male A-DS 25 PP/Z
Brand: ASSMANN WSW
SKU: 208240
Price: 1.32 USD
Availability: InStock



Category D-Sub Connector Brand ASSMANN WSW Condition New

Specifications

Country of Origin	China
Voltage	250V
Brand	ASSMANN WSW
Orientation	Straight
Current	3A
Model	A-DS 25 PP/Z
Mount Type	Through Hole
Housing Material	Polybutylene Terephthalate
Contact Material	Brass
Series	A-DS
Termination Type	Solder
Maximum Operating Temperature	105°C
Minimum Operating Temperature	-40°C
Pitch	2.77mm
Contact Plating	Gold over Nickel
Number of Contacts	25
Contact Gender	Male
Connector Gender	Male
Connector Type D	D-Sub
D-Sub Shell Size	DS-25

Key Features

Features 25 male contacts with a 2.77 mm pitch for precise connections.
Constructed with polybutylene terephthalate housing for durability.
Designed for through-hole solder mounting on PCBs.
Supports a voltage rating up to 250V for various applications.
Operates reliably between -40°C and 105°C temperature range.
Contact material is brass with gold over nickel plating to prevent corrosion.
Ensures a maximum operating current of 3A for safe electrical performance.
The D-Sub shell size DS-25 meets industry standards for connector compatibility.

Product Description

ASSMANN WSW A-DS 25 PP/Z is a 25 Way Straight 2.77 mm Pitch Through Hole D-Sub Connector Male designed for industrial and electronic applications requiring secure and precise connections.

This connector features 25 male contacts arranged with a 2.77 mm pitch, providing reliable electrical connectivity suitable for PCB mounting via its through-hole solder termination type. The housing material is robust polybutylene terephthalate, ensuring durability and resistance in demanding operating environments.

With a voltage rating of 250V and a maximum current of 3A, this connector is well-suited for a wide range of electronics and power distribution systems. The contact material is brass plated with gold over nickel to guarantee corrosion resistance and maintain signal integrity over time.

Its operational temperature range from -40°C to 105°C makes it suitable for applications spanning harsh industrial, automation, and communications equipment. The connector’s DS-25 shell size conforms to established industry standards, facilitating easy integration within existing assembly designs.

Features 25 male contacts with a 2.77 mm pitch for precise connections. Constructed with polybutylene terephthalate housing for durability. Designed for through-hole solder mounting on PCBs. Supports a voltage rating up to 250V for various applications.

Operates reliably between -40°C and 105°C temperature range. Contact material is brass with gold over nickel plating to prevent corrosion. Ensures a maximum operating current of 3A for safe electrical performance. The D-Sub shell size DS-25 meets industry standards for connector compatibility.

This D-Sub Connector is widely used in industrial automation, telecommunications, computing, and power supply assemblies. It allows for efficient and secure signal transmission in complex electrical systems. Its robust design supports long product lifecycles in factory and laboratory environments.

Explore alternative configurations and accessory parts from EnvMart’s extensive electronic components category to complement this connector.
