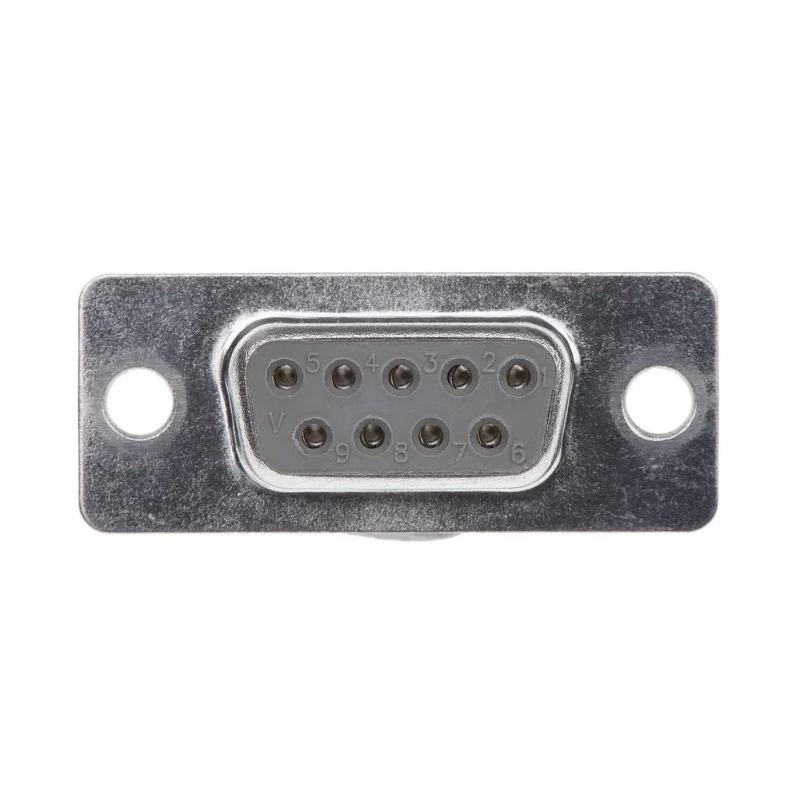

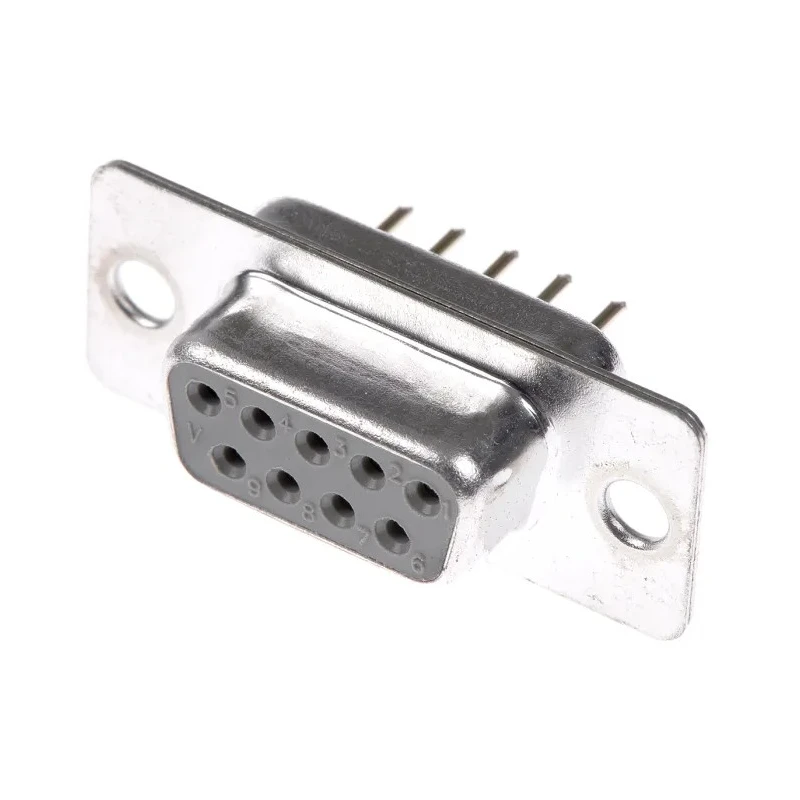

ASSMANN WSW 9 Way Straight 2.77 mm Pitch Through Hole Female D-Sub Connector DF-9 A-DF 09 PP/Z

Free Delivery in India | Lowest Global Shipping Charges

ASSMANN WSW 9 Way Straight 2.77 mm Pitch Through Hole Female D-Sub Connector DF-9 A-DF 09 PP/Z

Name: ASSMANN WSW 9 Way Straight 2.77 mm Pitch Through Hole Female D-Sub Connector DF-9 A-DF 09 PP/Z
Brand: ASSMANN WSW
SKU: 208252
Price: 0.63 USD
Availability: InStock



Category D-Sub Connector Brand ASSMANN WSW Condition New

Specifications

Country of Origin	China
Voltage	250V
Brand	ASSMANN WSW
Orientation	Straight
Current	3A
Model	A-DF 09 PP/Z
Mount Type	Through Hole
Housing Material	Polybutylene Terephthalate
Contact Material	Brass
Series	A-DF
Termination Type	Solder
Maximum Operating Temperature	105°C
Minimum Operating Temperature	-40°C
Pitch	2.77mm
Contact Plating	Gold over Nickel
Number of Contacts	9
Contact Gender	Female
Connector Gender	Female
Connector Type D	D-Sub
D-Sub Shell Size	DF-9

Key Features

Designed for through-hole PCB mounting applications.
Features brass contacts plated with gold over nickel for enhanced conductivity and corrosion resistance.
Operates at a maximum current of 3A and voltage of 250V.
Constructed with a durable polybutylene terephthalate housing for mechanical strength.
Supports operating temperatures from -40°C to 105°C for wide industrial use.
Straight orientation female connector with DF-9 shell size for compact installations.
Termination type is solder ensuring secure electrical connections.
Suitable for electronic, communication, computing, and industrial equipment.

Product Description

ASSMANN WSW A-DF 09 PP/Z is a 9 Way Straight Through Hole Female D-Sub Connector designed for reliable PCB mounting applications. Featuring a 2.77 mm pitch, this connector ensures precise and stable connections in electronic assemblies.

The connector integrates brass contacts plated with gold over nickel, enhancing electrical conductivity and providing resistance to corrosion. It supports a maximum current of 3A and voltage rating of 250V, making it suitable for a broad range of low power industrial and electronic applications.

The housing is made from polybutylene terephthalate, a robust engineering plastic that offers excellent durability and mechanical protection. The connector operates efficiently across a temperature range of -40°C to 105°C, suitable for demanding industrial, manufacturing, and communication equipment environments.

With a straight orientation and DF-9 shell size, the connector fits compact installations while offering solder termination to ensure secure and stable electrical connections. This component is ideal for use in electronic components, power & connectors, computing interfaces, and industrial hardware requiring standardized D-Sub connectors.

Designed for through-hole PCB mounting applications. Brass contacts with gold over nickel plating for enhanced conductivity. Maximum current 3A and voltage 250V rating. Polybutylene terephthalate housing material for durability.

Operational temperature from -40°C to 105°C. Straight orientation with DF-9 shell size. Solder termination type for strong connections. Suitable for industrial, electronic, communication, and computing uses. Manufactured in China to standardized specifications.

This ASSMANN WSW D-Sub connector is engineered to meet high industrial standards and is an essential component for secure, precise electronic connections. It is compatible with many industrial, laboratory, and communication equipment setups, supporting efficient and reliable system assembly.
