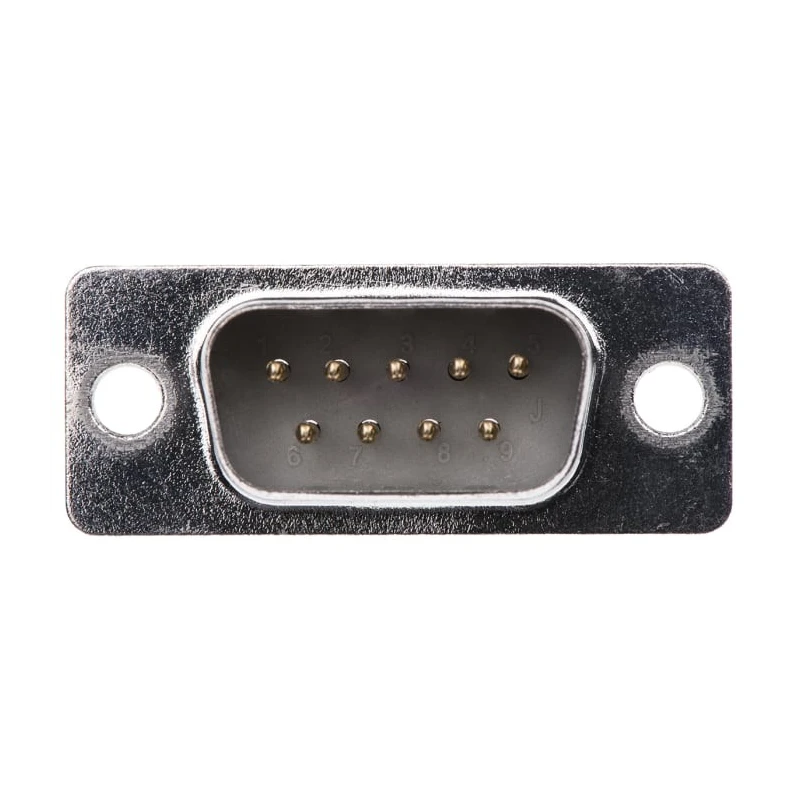

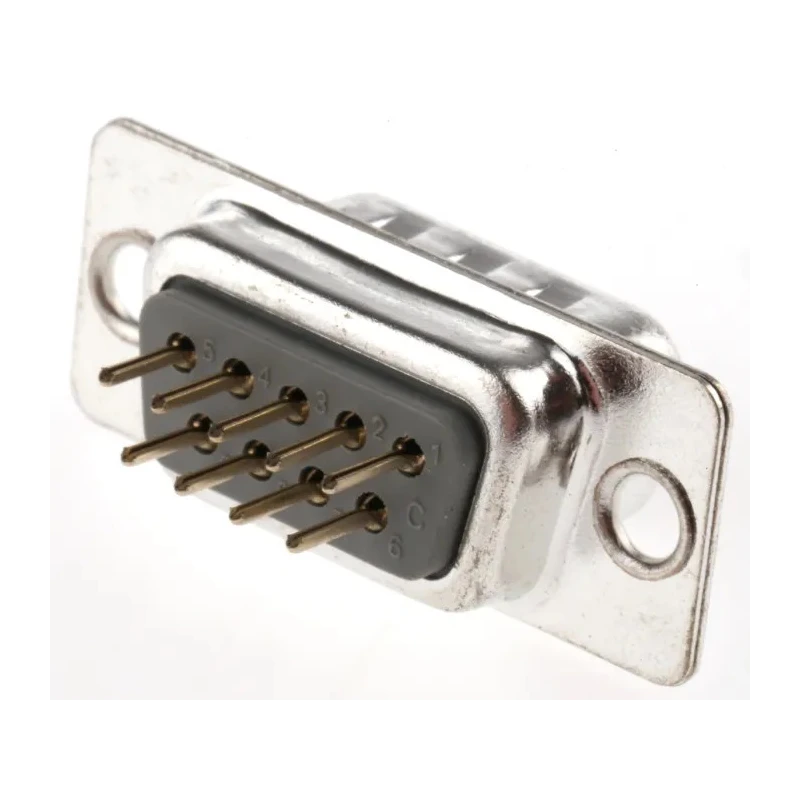

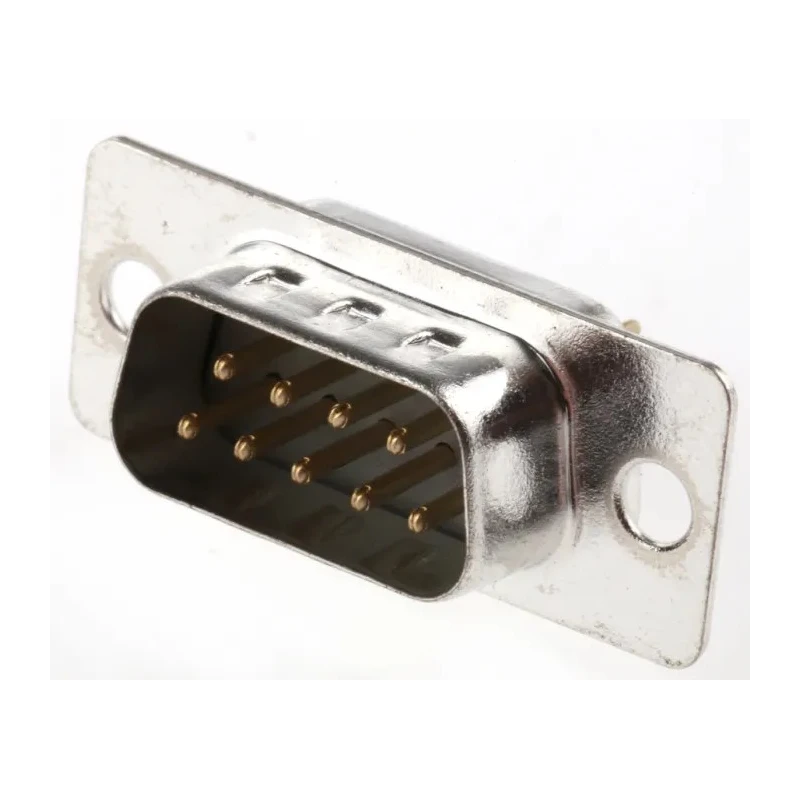

ASSMANN WSW D-Sub Connector 9 Way Straight Through Hole Male 250V 3A A-DS 09 PP/Z

Free Delivery in India | Lowest Global Shipping Charges

ASSMANN WSW D-Sub Connector 9 Way Straight Through Hole Male 250V 3A A-DS 09 PP/Z

Name: ASSMANN WSW D-Sub Connector 9 Way Straight Through Hole Male 250V 3A A-DS 09 PP/Z
Brand: ASSMANN WSW
SKU: 208253
Price: 0.78 USD
Availability: InStock



Category D-Sub Connector Brand ASSMANN WSW Condition New

Specifications

Country of Origin	China
Voltage	250V
Brand	ASSMANN WSW
Orientation	Straight
Current	3A
Model	A-DS 09 PP/Z
Mount Type	Through Hole
Housing Material	Polybutylene Terephthalate
Contact Material	Brass
Series	A-DS
Termination Type	Solder
Maximum Operating Temperature	105°C
Minimum Operating Temperature	-40°C
Pitch	2.77mm
Contact Plating	Gold over Nickel
Number of Contacts	9
Contact Gender	Male
Connector Gender	Male
Connector Type D	D-Sub
D-Sub Shell Size	DF-9
ASSMANN WSW, A-DS Through Hole, 9 Pin Solder D-sub Connector PlugBrand	ASSMANN WSW

Key Features

Features a 2.77 mm pitch for precise connection.
Constructed with brass contacts plated with gold over nickel for durability.
Housing is made of polybutylene terephthalate providing robust insulation.
Operates reliably within temperature range of -40°C to 105°C.
Designed with solder termination for secure PCB mounting.
Connector conforms to the A-DS series from ASSMANN WSW.
Suitable for use in electronic components, power, and connector applications.

Product Description

ASSMANN WSW presents the A-DS 09 PP/Z model, a D-Sub Connector with 9 contacts arranged in a straight orientation designed for through-hole PCB mounting. This male connector is engineered to operate at 250 volts and can handle currents up to 3 amperes effectively, making it suitable for various electronic assembly applications.

Constructed with a housing made from high-quality polybutylene terephthalate, it provides excellent mechanical and thermal stability. The contact pins are crafted from brass with gold plating over nickel, ensuring superior conductivity and corrosion resistance. The connector features a 2.77 mm pitch allowing precise and reliable mate alignment.

It supports solder termination type for secure and permanent connections on printed circuit boards, and its robust build can withstand operating temperatures ranging from -40°C to 105°C, accommodating a broad spectrum of industrial environments.

The D-Sub shell size designated as DF-9 conforms to typical industry standards, providing compatibility with existing systems requiring this connector form factor. While no formal standards approvals are specified, the product aligns with typical expectations for quality and performance in D-Sub connector applications.

This connector is manufactured in China under the reputed ASSMANN WSW brand and belongs to the A-DS series, known for reliability in electronic and power connector segments. Features a 2.77 mm pitch for precise connection.

Constructed with brass contacts plated with gold over nickel for durability. Housing is made of polybutylene terephthalate providing robust insulation. Operates reliably within temperature range of -40°C to 105°C. Designed with solder termination for secure PCB mounting.

Connector conforms to the A-DS series from ASSMANN WSW. Suitable for use in electronic components, power, and connector applications.

This D-Sub Connector is ideal for technical use in electronics manufacturing, instrumentation, communication equipment, and other industrial applications requiring dependable signal and power connections. Discover more of ASSMANN WSW connectors and components in the Electronics & Electricals category at EnvMart.
