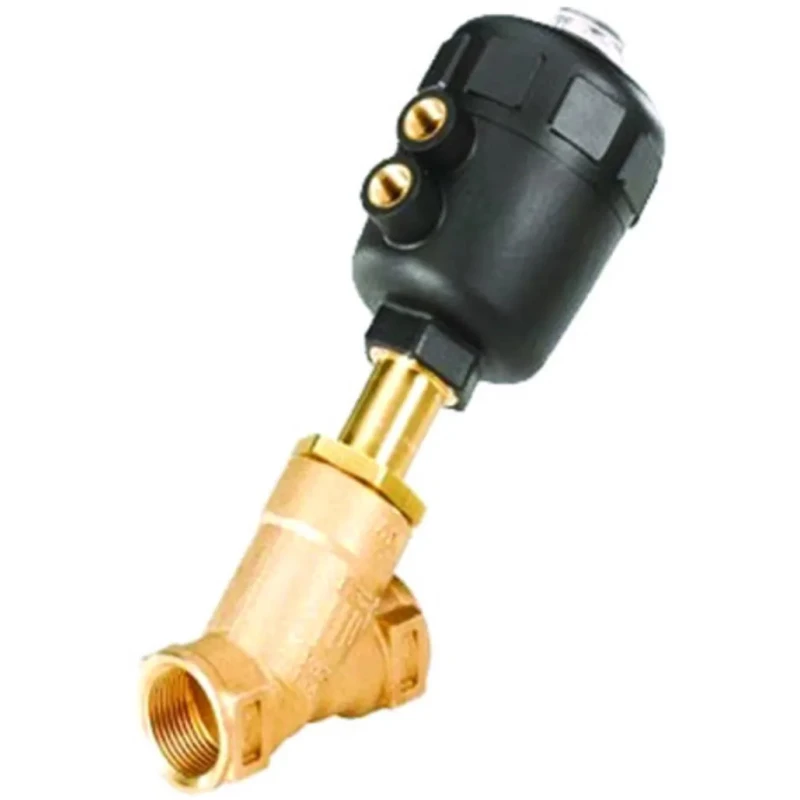

Burkert Angle Type Pneumatic Actuated Valve, 1 in Threaded Inlet/Outlet, Stainless Steel, 16 bar Max Pressure 178850

Burkert 178850 is a high-quality angle type pneumatic actuated valve designed for industrial fluid power and process control applications. This valve features a 1 inch threaded inlet and outlet connection with a robust stainless steel valve body capable of handling maximum operating pressures of up to 16 bar.

The valve operates in a normally open configuration with a spring return mechanism, providing reliable control of fluid flow. It is well suited for neutral gases, air, steam, water, and oil, making it versatile across various industrial environments.

The actuator casing is made from polyamide with a PTFE seal material ensuring durability and extended service life. The valve includes self-adjusting spindle packing glands and a wiper seal to maintain performance while reducing maintenance needs. Its compact angle seat design supports high flow rates while occupying minimal space.

The valve functions optimally within an ambient temperature range of -10 to +60°C and can handle media temperatures up to 180°C, accommodating many demanding applications. The thread standard for connections is G, ensuring compatibility with standard piping systems.

Made in Germany, this valve meets industrial quality standards and is suitable for use in manufacturing, HVAC systems, fluid handling, mechanical machinery, and laboratory equipment. Its durable construction and reliable pneumatic operation help ensure efficient and safe process control.

Constructed with stainless steel valve body for durability and corrosion resistance. Designed for normally open (NO) operation with spring return mechanism. Operating temperature ranges from -10°C ambient to 60°C maximum valve body temperature.

Suitable for neutral gases, air, steam, water, and oil. Threaded inlet and outlet connections with G standard threads. Compact angle seat valve design provides high flow rates. Polyamide actuator casing and PTFE seal material.

Self-adjusting spindle packing glands and wiper seal. Maximum operating pressure of 16 bar. Manufactured in Germany to high quality standards. Discover the full range of Pneumatic Actuated Valves and industrial valve fittings at EnvMart for your mechanical and fluid control equipment needs.
