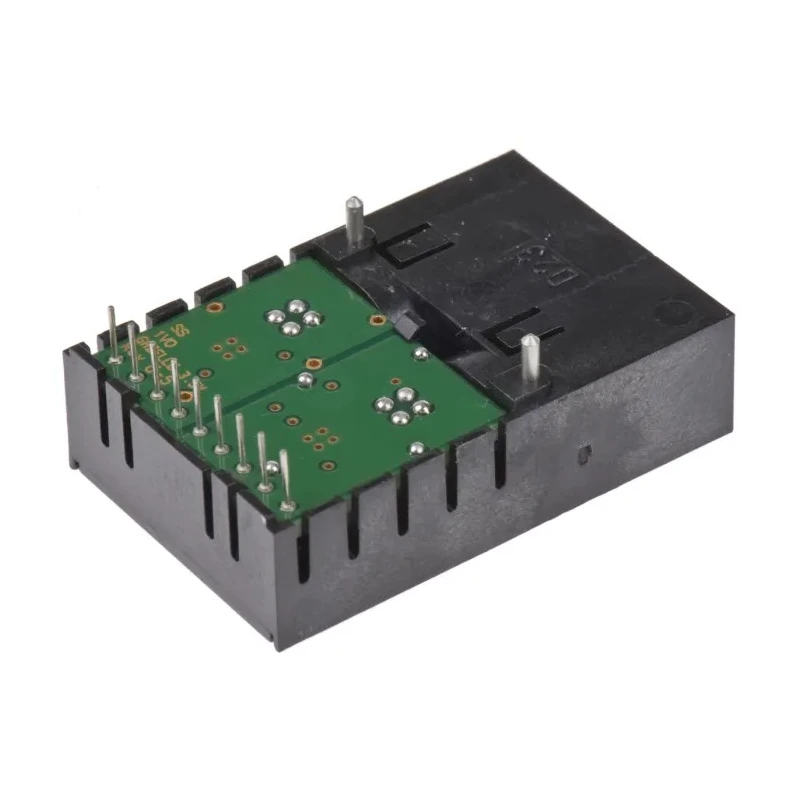

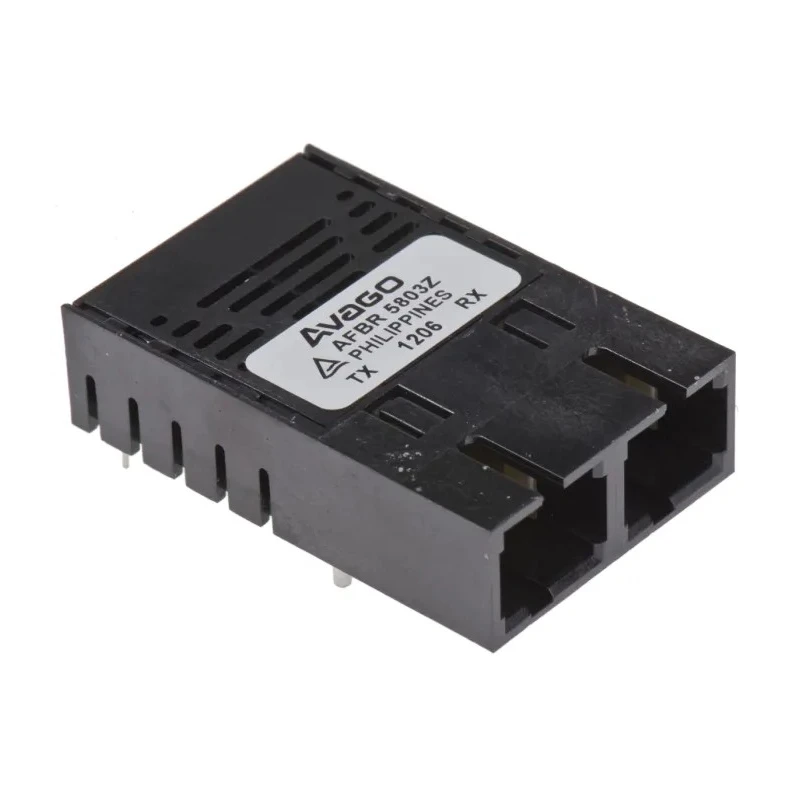

Broadcom Fibre Optic Transceiver SC Connector, 100 Mbps, 1380 nm, 9-Pin AFBR-5803Z
Specifications
| Country of Origin | India |
|---|---|
| Brand | Broadcom |
| Height | 10.35mm |
| Length | 25.4mm |
| Model | AFBR-5803Z |
| Connector Type | SC |
| Width | 12mm |
| Mount Type | Through Hole |
| Series | AFBR-5800Z |
| Standards/Approvals | RoHS, UL |
| Number of Pins | 9 |
| Maximum Data Rate | 100Mbps |
| Output Signal Type | Analogue |
| Connector Shape | Round |
| Wavelength of Peak Sensitivity | 1380nm |
| Transmitter Typical Rise Time | 1.9ns |
| Transmitter Typical Fall Time | 1.6ns |
| Receiver Jitter at Maximum Data Rate | 2.14ns |
| Transmitter Jitter at Maximum Data | 0.6ns |
Key Features
- Operates with a maximum data rate of 100 Mbps ensuring efficient high-speed communication.
- Features an SC type round connector ideal for fiber optic connectivity.
- Utilizes through hole mount type for secure and stable installation.
- Supports analogue output signal type for compatible applications.
- Designed with 9 pins to match standard interface requirements.
- Part of the AFBR-5800Z series optimized for Fast Ethernet transceivers.
- Includes RoHS and UL compliance ensuring industry standards are met.
- Compact dimensions with length 25.4 mm, width 12 mm, and height 10.35 mm for space-efficient deployment.
Product Description
Broadcom AFBR-5803Z fibre optic transceiver is a high-performance device designed for fast Ethernet applications requiring reliable 100 Mbps data transmission. It uses an SC round connector and operates at a wavelength of 1380 nm to ensure efficient optical communication in diverse industrial and commercial environments.
This product features a through-hole mount for robust hardware installation within electronic systems. The device supports analogue output signals, making it suitable for a range of fibre optic communication systems. The 9-pin configuration provides a standard interface for easy integration with existing circuit designs. The transceiver belongs to the AFBR-5800Z series developed by Avago Technologies, well-known for delivering consistent quality in fibre optic transceivers.
Key technical advantages include a typical transmitter rise time of 1.9 ns and fall time of 1.6 ns, which ensure quick and precise signal transmission. The device emits low jitter distortion, with transmitter jitter at 0.6 ns and receiver jitter at 2.14 ns, thereby maintaining data integrity at high speeds. Compactly sized with a length of 25.4 mm, width of 12 mm, and height of 10.35 mm, this transceiver fits well into compact electronic assemblies.
Compliance to RoHS and UL standards guarantees the device meets safety and environmental requirements. This makes it ideal for applications in electronic components manufacturing, telecommunications, industrial automation, laboratory instrumentation, and networking equipment.
Operates at 100 Mbps data rate enabling efficient data transfer. SC round connector supports fiber optic interfaces. Through-hole mount type ensures durable hardware attachment. 9-pin configuration for standard connectivity.
Compact form factor facilitates installation in constrained spaces. Low transmitter and receiver jitter enhances signal quality. Meets RoHS and UL standards for safety and compliance. Explore the Broadcom series of Fibre Optic Transceivers on EnvMart for advanced connectivity solutions suited to demanding industrial and electronic component applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It operates with a maximum data rate of 100 Mbps, ensuring efficient high-speed communication.
This model features an SC type round connector, ideal for fiber optic connectivity.
The transceiver operates at a wavelength of 1380 nm, which is suitable for its optical communication applications.
It utilizes a through-hole mount type for secure and stable installation within electronic systems.
This unit is designed with 9 pins to match standard interface requirements for easy integration.
The typical transmitter rise time is 1.9 ns, which allows for quick signal transmission.
It has compact dimensions with a length of 25.4 mm, width of 12 mm, and height of 10.35 mm, facilitating space-efficient deployment.
It supports an analogue output signal type, making it compatible with various fibre optic communication systems.
It includes RoHS and UL compliance, ensuring that it meets industry safety and environmental standards.
The receiver jitter at maximum data rate is 2.14 ns, which helps maintain data integrity during transmission.
It is suitable for applications in electronic components manufacturing, telecommunications, industrial automation, laboratory instrumentation, and networking equipment.
