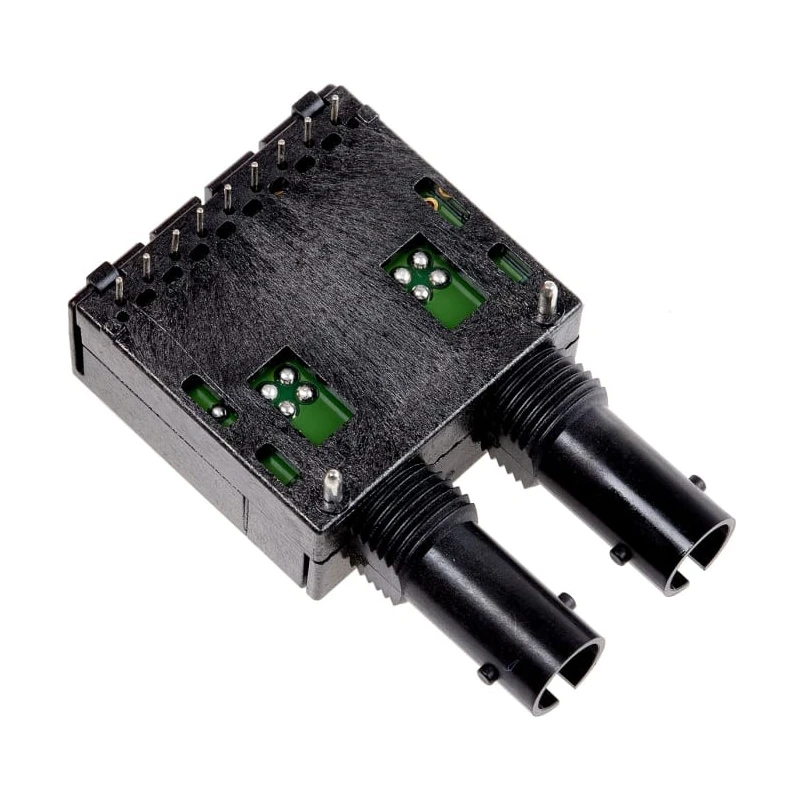

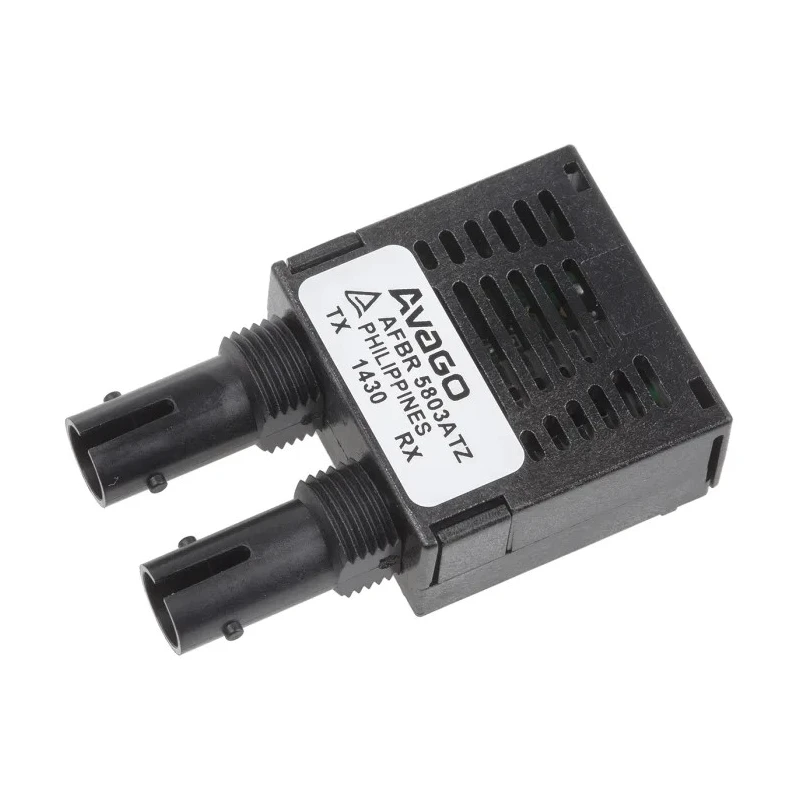

Broadcom Fibre Optic Transceiver ST Connector 100 Mbps 1380 nm 9-Pin AFBR-5803ATZ
Specifications
| Country of Origin | India |
|---|---|
| Brand | Broadcom |
| Height | 24.8mm |
| Length | 25.4mm |
| Model | AFBR-5803ATZ |
| Connector Type | ST |
| Width | 12mm |
| Mount Type | Through Hole |
| Series | AFBR-5800Z |
| Standards/Approvals | UL |
| Number of Pins | 9 |
| Maximum Data Rate | 100Mbps |
| Output Signal Type | PECL |
| Connector Shape | Round |
| Wavelength of Peak Sensitivity | 1380nm |
| Transmitter Typical Rise Time | 1.9ns |
| Transmitter Typical Fall Time | 1.6ns |
| Receiver Jitter at Maximum Data Rate | 2.14ns |
| Transmitter Jitter at Maximum Data | 0.6ns |
Key Features
- Supports a maximum data rate of 100 Mbps for fast Ethernet communications.
- ST style round connector ensures secure and reliable fiber optic connections.
- Utilizes a 1380 nm wavelength peak sensitivity for optimal performance.
- Features 9-pin configuration with through-hole mounting for ease of PCB installation.
- Utilizes PECL output signal type suitable for high-speed data transmission.
- Offers low transmitter rise time of 1.9 ns and fall time of 1.6 ns for signal integrity.
- Complies with UL standards ensuring product safety and quality assurance.
- Part of the AFBR-5800Z series of fast Ethernet fiber optic transceivers.
Product Description
Broadcom AFBR-5803ATZ is a high-performance fibre optic transceiver designed for fast Ethernet applications, providing a maximum data rate of 100 Mbps. It features an ST connector and a 9-pin through-hole mount, optimized for reliable and efficient data transmission at a wavelength of 1380 nm.
This transceiver delivers low transmitter rise and fall times (1.9 ns and 1.6 ns respectively) alongside minimal jitter values, ensuring excellent signal integrity in demanding electronic and communication environments. Its PECL output signal type facilitates high-speed, noise-resistant data signaling.
The device dimensions are compact, measuring 25.4 mm in length, 12 mm in width, and 24.8 mm in height, making it suitable for space-constrained PCB layouts. Manufactured under stringent UL standards, it ensures quality and safety compliance.
The AFBR-5803ATZ belongs to the AFBR-5800Z series, recognized for reliable Fibre Optic Transceivers used in industrial, laboratory, telecommunications, and electronic component systems.
Supports a maximum data rate of 100 Mbps for fast Ethernet communications. ST style round connector ensures secure and reliable fiber optic connections. Utilizes a 1380 nm wavelength peak sensitivity for optimal performance.
Features 9-pin configuration with through-hole mounting for ease of PCB installation. Compact dimensions: 25.4 mm length, 12 mm width, and 24.8 mm height. Utilizes PECL output signal type suitable for high-speed data transmission.
Offers low transmitter rise time of 1.9 ns and fall time of 1.6 ns for signal integrity. Complies with UL standards ensuring product safety and quality assurance. Part of the AFBR-5800Z series of fast Ethernet fiber optic transceivers.
Ideal for electronic and optical communication applications in industrial and commercial settings.
This transceiver is suitable for integration into electronic components, power and connectors, fibre optic communication systems, and optical networking equipment. Its robust design supports demanding industrial environments where reliable high-speed data transmission over fiber optics is critical.
Explore more solutions in EnvMart's Electronics Components category to find compatible fiber optic transceivers and connectors.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum data rate of this transceiver is 100 Mbps, suitable for fast Ethernet communications.
It features an ST style round connector, ensuring secure and reliable fiber optic connections.
The transceiver utilizes a peak sensitivity wavelength of 1380 nm for optimal performance.
This model has a 9-pin configuration, designed for through-hole mounting on PCBs.
The dimensions are 25.4 mm in length, 12 mm in width, and 24.8 mm in height.
It utilizes a PECL output signal type, which is suitable for high-speed data transmission.
The typical rise time is 1.9 ns and the fall time is 1.6 ns, which helps maintain signal integrity.
Yes, it complies with UL standards, ensuring product safety and quality assurance.
It is part of the AFBR-5800Z series of fast Ethernet fiber optic transceivers.
This transceiver is suitable for electronic components, fiber optic communication systems, and optical networking equipment in industrial and commercial settings.
The country of origin for this transceiver is India.
The receiver jitter at maximum data rate is 2.14 ns, which is important for maintaining signal quality.
