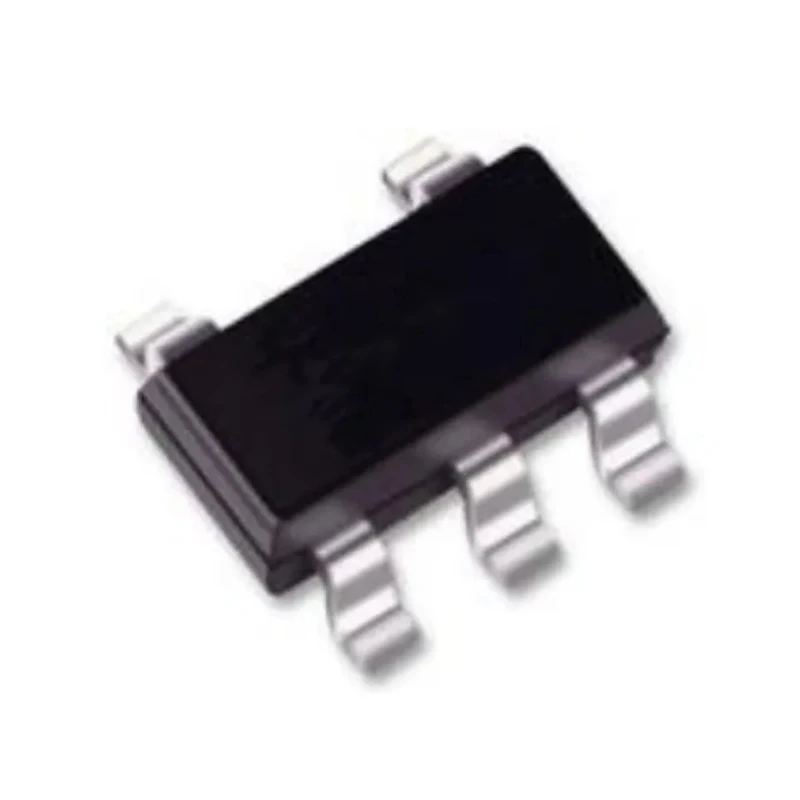

DiodesZetex High Side Power Switch IC, 5-Pin SOT-25, Surface Mount, 90mΩ RdsOn, 3.2A, AP22811AW5-7
Specifications
| Country of Origin | India |
|---|---|
| Brand | DiodesZetex |
| Height | 1.3mm |
| Length | 3.1mm |
| Model | AP22811AW5-7 |
| Width | 1.7mm |
| Mount Type | Surface |
| Number of inputs | 1 |
| Series | AP22811 |
| Maximum Operating Temperature | 85°C |
| Package Type | SOT-25 |
| Minimum Operating Temperature | -40°C |
| Operating Current | 3.2A |
| Number of outputs | 5 |
| Pin Count | 5 |
| Maximum Supply Voltage | 2.4V |
| Minimum Supply Voltage | 2.7V |
| Switch On Resistance RdsOn | 90mΩ |
Key Features
- High side power switch IC suitable for power management applications.
- Features low switch on resistance of 90mΩ for efficient operation.
- Supports maximum supply voltage up to 2.4V and maximum current of 3.2A.
- Compact SOT-25 package ideal for space-constrained PCB designs.
- Wide operating temperature range from -40°C to 85°C for reliable performance.
- Single channel with surface mount design for easy integration.
- 5-pin configuration, enabling flexible circuit integration.
Product Description
The DiodesZetex AP22811AW5-7 is a high side power switch integrated circuit designed for efficient load switching and power management in a variety of electronic devices. Its compact SOT-25 surface mount package and single channel configuration make it especially suitable for modern PCB layouts where space is limited.
This power switch IC offers a low switch on resistance of 90mΩ, ensuring minimal voltage drop and high efficiency during operation. With a maximum supply voltage of 2.4V and support for an operating current up to 3.2A, it is well-suited for USB power switching, consumer electronics, portable devices, and general semiconductor applications.
Providing robust performance, the AP22811AW5-7 has a wide operating temperature range from -40°C to 85°C, making it reliable in both industrial and commercial environments. The 5-pin configuration of the SOT-25 package enables flexible circuit integration and easy surface mount installation.
The IC enables easy management of power lines in system designs, supporting safe and effective high side switching. It is commonly used in power management ICs for protecting circuits and loads in electronic systems.
Ideal use cases include industrial automation, consumer electronics, laboratory instruments, and IoT hardware platforms requiring high efficiency load switching and compact semiconductor solutions.
High side power switch IC suitable for power management applications. Low switch on resistance of 90mΩ for efficient load control. Supports maximum supply voltage up to 2.4V, maximum current up to 3.2A. Surface mount SOT-25 package for compact PCB design.
Reliable operation in temperatures ranging from -40°C to 85°C. Single channel design for efficient management of power loads. Flexible integration with 5-pin configuration. Explore more Power Switch ICs and semiconductor solutions from DiodesZetex in the EnvMart electronics & electricals catalogue.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating current for this model is 3.2A.
It has a low switch on resistance of 90mΩ, which ensures efficient load control.
The maximum supply voltage supported by this unit is 2.4V, with a minimum supply voltage of 2.7V.
The dimensions of the SOT-25 package are 3.1mm in length, 1.7mm in width, and 1.3mm in height.
The operating temperature range for the AP22811AW5-7 is from -40°C to 85°C.
This power switch IC has a 5-pin configuration.
It supports surface mounting, making it suitable for compact PCB designs.
It is suitable for power management applications, including USB power switching and consumer electronics.
This model belongs to the AP22811 series of power switch ICs.
Its primary function is efficient load switching and power management in electronic devices.
The country of origin for this model is India.
The minimum operating temperature for the AP22811AW5-7 is -40°C.
