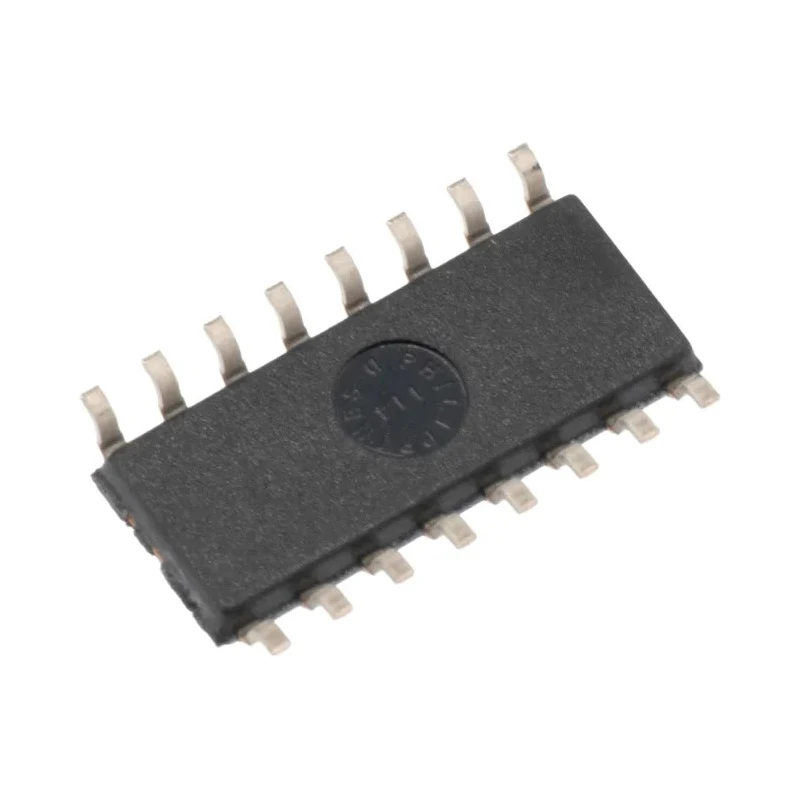

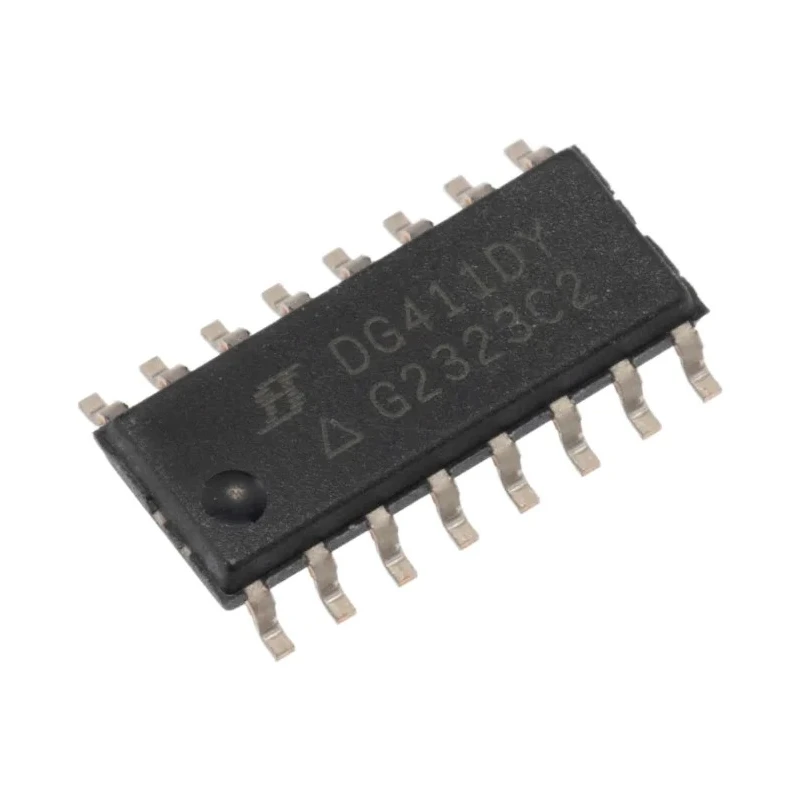

Vishay Analogue Switch 4 CMOS Quad SPST 16-Pin SOIC DG411DY-E3
Specifications
| Country of Origin | India |
|---|---|
| Brand | Vishay |
| Height | 1.55mm |
| Length | 10mm |
| Model | DG411DY-E3 |
| Width | 4mm |
| Mount Type | Surface |
| Output type | CMOS/TTL |
| Series | DG411 |
| Configuration | Quad SPST |
| Maximum Operating Temperature | 85°C |
| Package Type | SOIC |
| Minimum Operating Temperature | -40°C |
| Standards/Approvals | RoHS |
| Pin Count | 16 |
| Number of Elements per Chip | 4 |
| Maximum Supply Voltage | 44V |
| Logic Family | CMOS |
| Minimum Supply Voltage | 5V |
| Maximum On State Resistance | 100Ω |
| Vishay DG411DY-T1-E3 Analogue Switch, 4 CMOS Quad SPST, 16-Pin SOICBrand | Vishay |
Key Features
- Features four independent channels enabling versatile analogue signal switching.
- Operates with a supply voltage range from 5V to 44V for broad system compatibility.
- Maximum on-state resistance is 100Ω ensuring low voltage drop across switched paths.
- Supports CMOS/TTL-compatible control inputs enabling easy digital interface integration.
- Operating temperature range spans from -40°C to 85°C for robust environmental operation.
- SOIC surface-mount package offers compact board-level mounting and reflow compatibility.
- RoHS compliant, ensuring compliance with environmental and hazardous substance regulations.
- Suitable for multiplexing analogue sensor signals and audio-path selection in consumer electronics.
Product Description
Vishay DG411DY-E3 Analogue Switch is a quad single-pole single-throw (SPST) CMOS device in a 16-pin SOIC surface-mount package. It is engineered to efficiently route signals within mixed-signal instrumentations, supporting integrated digital and analogue circuitry.
This component operates reliably over a wide voltage supply of 5V to 44V and features a maximum on-state resistance of 100Ω, enabling minimal voltage loss during switching operations. The control inputs are CMOS/TTL logic-compatible, facilitating direct interfacing with standard logic families without requiring additional level translation.
The DG411DY-E3 offers an operating temperature range from -40°C to 85°C, making it suitable for extended environmental conditions encountered in industrial, laboratory, manufacturing, and consumer electronics applications.
Equipped with four independent channels, each acting as a single-pole single-throw switch, this device supports multiplexing analogue sensor signals, audio-path selection, channel isolation in test equipment, and power-rail-tolerant signal switching in industrial controls.
The compact 16-pin SOIC package ensures efficient space utilization on printed circuit boards (PCBs) and is designed for surface mounting with reflow soldering methods. Additionally, the Vishay DG411DY-E3 is RoHS-compliant, meeting stringent environmental standards for restricted substances in soldered assemblies.
Four independent CMOS quad SPST switching channels. Wide supply voltage range from 5V to 44V. Low maximum on-state resistance of 100Ω. Compatible with CMOS and TTL logic-level controls. Operating temperature range of -40°C to 85°C for harsh environments.
Compact 16-pin SOIC surface-mount package for PCB efficiency. RoHS compliant for environmentally safe manufacturing. Ideal for multiplexing analogue signals and audio-path selection. Suitable for test equipment and industrial control applications.
Explore our Electronics & Electricals categories for more semiconductor and Power Switch IC solutions suited to industrial and commercial electronics needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model operates with a supply voltage range from 5V to 44V, ensuring broad system compatibility.
The maximum on-state resistance is 100Ω, which helps minimize voltage drop across the switched paths.
It has an operating temperature range from -40°C to 85°C, making it suitable for harsh environmental conditions.
This analogue switch features four independent channels, each functioning as a single-pole single-throw (SPST) switch.
It supports CMOS and TTL-compatible control inputs, allowing for easy integration with standard digital logic families.
The component comes in a 16-pin SOIC surface-mount package, designed for compact board-level mounting.
It is suitable for multiplexing analogue sensor signals, audio-path selection, and channel isolation in test equipment.
The DG411DY-E3 measures 10mm in length, 4mm in width, and 1.55mm in height.
Yes, this model is RoHS compliant, ensuring it meets environmental standards for restricted substances.
The output type is CMOS/TTL, making it compatible with various digital logic levels.
The country of origin for this product is India.
There are four elements per chip in this analogue switch, corresponding to its quad SPST configuration.
