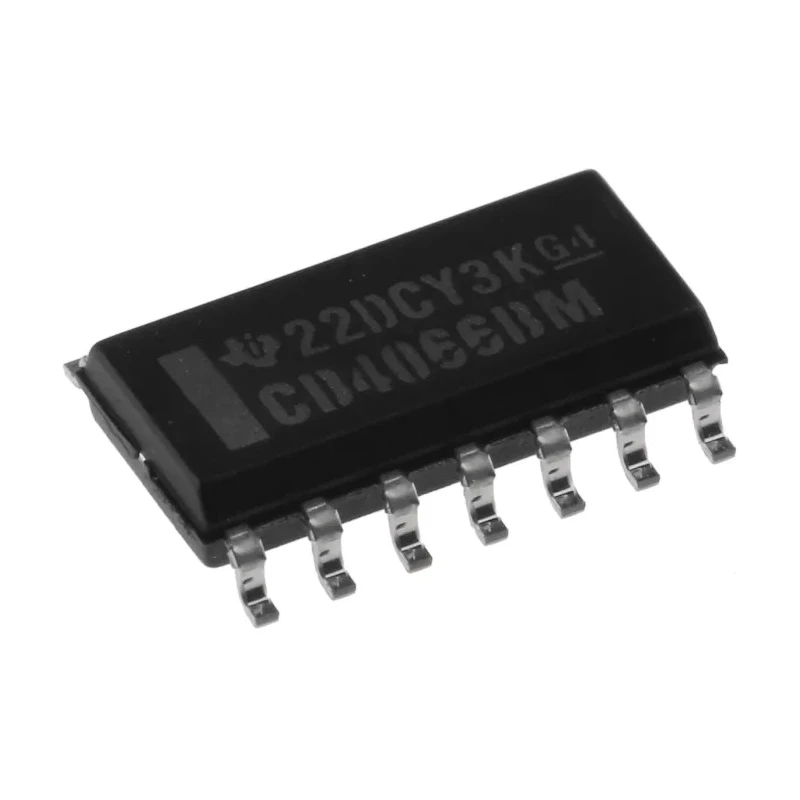

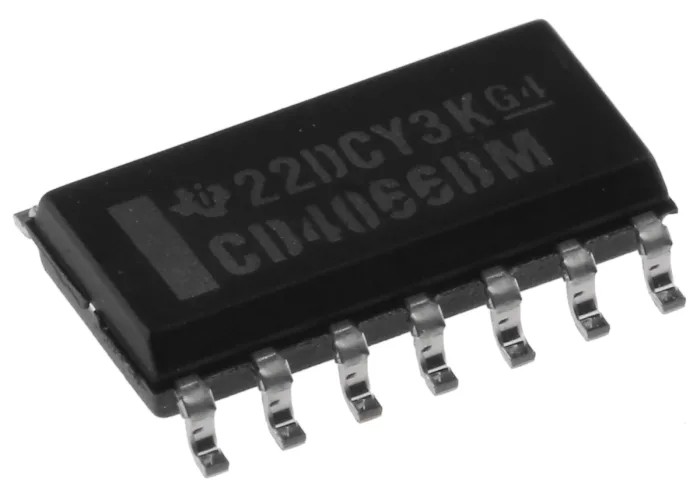

Texas Instruments Analogue Switch 4 CMOS Quad SPST 14-Pin SOIC CD4066BM96

Texas Instruments CD4066BM96 Analogue Switch is a high-quality component designed as a 4 CMOS Quad SPST switch integrated circuit, housed in a compact 14-pin SOIC package suitable for surface mounting.

This IC belongs to the CMOS logic family, providing low power consumption and wide operating voltage flexibility with minimum supply voltage of 3V and maximum of 18V. It is capable of operating reliably in harsh industrial environments thanks to its wide operating temperature range from -55°C up to 125°C.

The device features four independent analogue switches that allow the switching of analog or digital signals, making it versatile for multiplexing, demultiplexing, and signal routing applications in electronics and instrumentation.

Physical dimensions of 8.65mm length, 3.91mm width, and 1.58mm height make it compact and ideal for space-constrained PCB designs. The maximum on-state resistance of 1.3kΩ ensures effective signal conduction with minimal loss.

Designed in compliance with RoHS directives, this component supports environmentally responsible manufacturing practices. It is commonly deployed in industrial electronics, laboratory instrumentation, automation controls, and consumer electronic devices.

This analogue switch belongs to the CMOS logic family, ensuring low power consumption. Operates within a wide supply voltage range from 3V to 18V. Compact SOIC package dimensions of 8.65mm length, 3.91mm width, and 1.58mm height.

Designed for reliable operation across a wide temperature range from -55°C to 125°C. Maximum on-state resistance of 1.3kΩ offers effective signal conduction. Contains 4 independent single-pole single-throw (SPST) switches in one chip, configured as a quad arrangement.

Surface mount device suitable for quick and efficient PCB assembly. Complies with RoHS standards for environmental safety. Ideal for diverse industrial electronics, instrumentation, and control system applications. Explore the full range of semiconductor devices and switch ICs at EnvMart for your industrial and laboratory needs.
