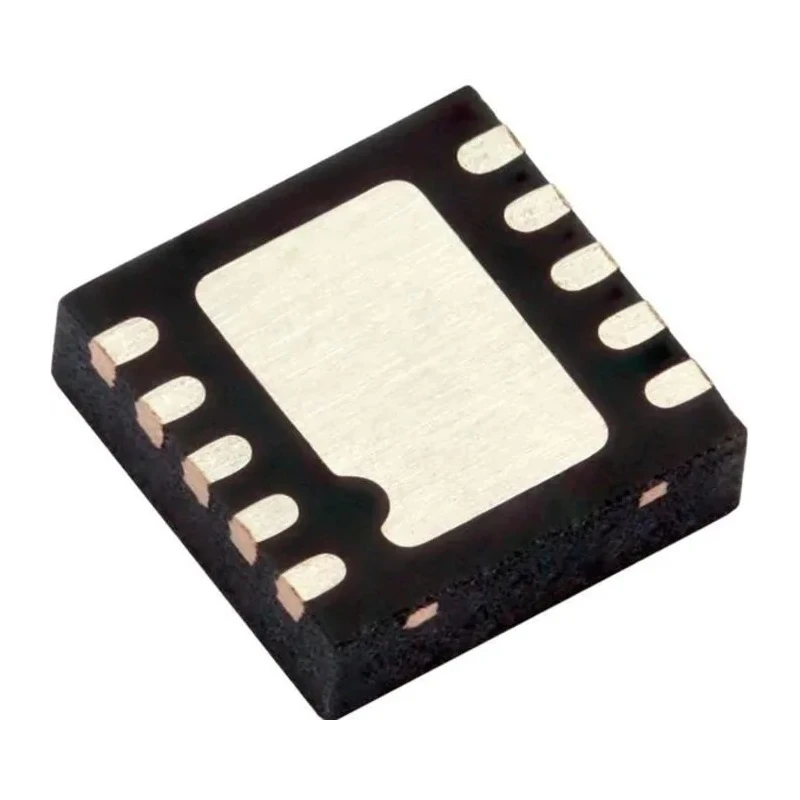

Vishay High Side Load Switch Power Switch IC 10-Pin DFN-10 SIP32434ADN-T1E4
Specifications
| Country of Origin | India |
|---|---|
| Brand | Vishay |
| Length | 3mm |
| Model | SIP32434ADN-T1E4 |
| Width | 3mm |
| Mount Type | Surface |
| Number of inputs | 1 |
| Series | SiP32434 |
| Maximum Operating Temperature | 150°C |
| Package Type | DFN-10 |
| Minimum Operating Temperature | -40°C |
| Operating Current | 6A |
| Number of outputs | 5 |
| Pin Count | 10 |
| Maximum Supply Voltage | 23V |
| Minimum Supply Voltage | 2.8V |
| Switch On Resistance RdsOn | 33mΩ |
Key Features
- Operates at a supply voltage range from 2.8V to 23V for versatile system compatibility.
- Supports continuous operating current of 6A to handle high load applications.
- Features a low 33mΩ on-resistance for reduced conduction losses and improved efficiency.
- Includes five independent outputs controlled by a single input for centralized power management.
- Encased in a compact DFN-10 surface mount package measuring 3mm by 3mm.
- Rated for operation at temperatures from -40°C to 150°C ensuring reliability under thermal stress.
- Optimized for use in server blade power sequencing, telecoms equipment, industrial modules, and portable battery management.
- High side switching topology provides simplified load protection with common ground reference.
Product Description
Vishay SIP32434ADN-T1E4 is a high side load switch power switch IC designed to efficiently manage power distribution across multiple load channels in compact surface-mount assemblies. Operating within a voltage range of 2.8V to 23V and capable of continuous currents up to 6A, this device supports diverse system voltage requirements.
Featuring a low 33mΩ on-resistance, the SIP32434ADN-T1E4 minimizes conduction losses, leading to improved power efficiency. It integrates five independent outputs controllable via a single input, providing centralized enablement schemes suitable for multi-rail power control applications.
This power switch IC is housed in a space-saving 10-pin DFN package measuring 3mm by 3mm, optimized for compact PCB layouts. The device is rated to operate over a broad temperature range from -40°C to 150°C, making it suitable for demanding industrial and telecom environments with high thermal stress.
Applications include server blade power sequencing and distribution, telecom equipment multi-rail control, industrial modules exposed to elevated temperatures, portable assembly battery management, and power-sensitive consumer devices requiring low loss switching.
The high side switching topology employed allows disconnecting loads from the supply rail while maintaining a common ground reference, simplifying load protection and power sequencing in systems with single-ended grounds.
For thermal management, designers are advised to implement effective copper spreads and thermal vias underneath the DFN-10 package to dissipate heat efficiently and leverage the device's high maximum operating temperature.
Operates at supply voltages from 2.8V to 23V. Supports 6A continuous operating current. Low 33mΩ on-resistance reduces conduction losses. Five independent outputs controlled by one input. Compact 3mm by 3mm DFN-10 surface mount package.
Wide operating temperature range from -40°C to 150°C. Ideal for server blades, telecom, industrial, portable battery management, and consumer devices. High side switching topology simplifies load protection. Requires thermal vias and copper pour for efficient heat dissipation.
Explore Vishay and other related Power Switch ICs at EnvMart for advanced power management solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The Vishay SIP32434ADN-T1E4 operates at a supply voltage range from 2.8V to 23V.
It supports a continuous operating current of up to 6A, suitable for high load applications.
The SIP32434ADN-T1E4 features a low on-resistance of 33mΩ, which helps reduce conduction losses.
This model includes five independent outputs that are controlled by a single input for centralized power management.
The device is encased in a compact DFN-10 surface mount package measuring 3mm by 3mm.
It is rated for operation at temperatures from -40°C to 150°C, ensuring reliability under thermal stress.
It is optimized for applications such as server blade power sequencing, telecom equipment, industrial modules, and portable battery management.
This power switch IC has a pin count of 10, suitable for compact PCB layouts.
The maximum supply voltage for the SIP32434ADN-T1E4 is 23V.
The minimum operating temperature for this power switch is -40°C.
It employs a high side switching topology, which simplifies load protection with a common ground reference.
The country of origin for this power switch IC is India.
