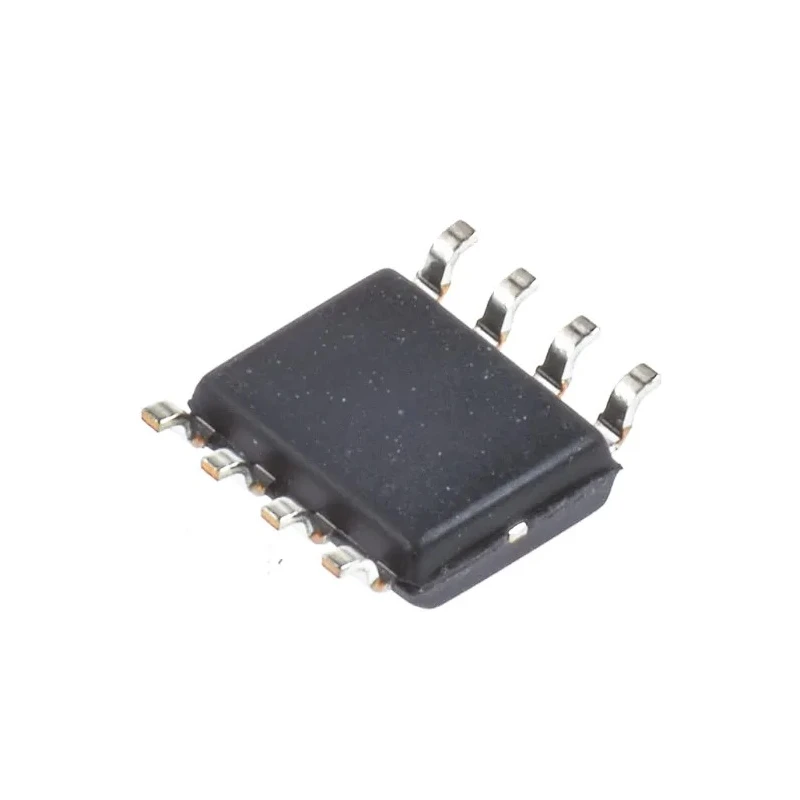

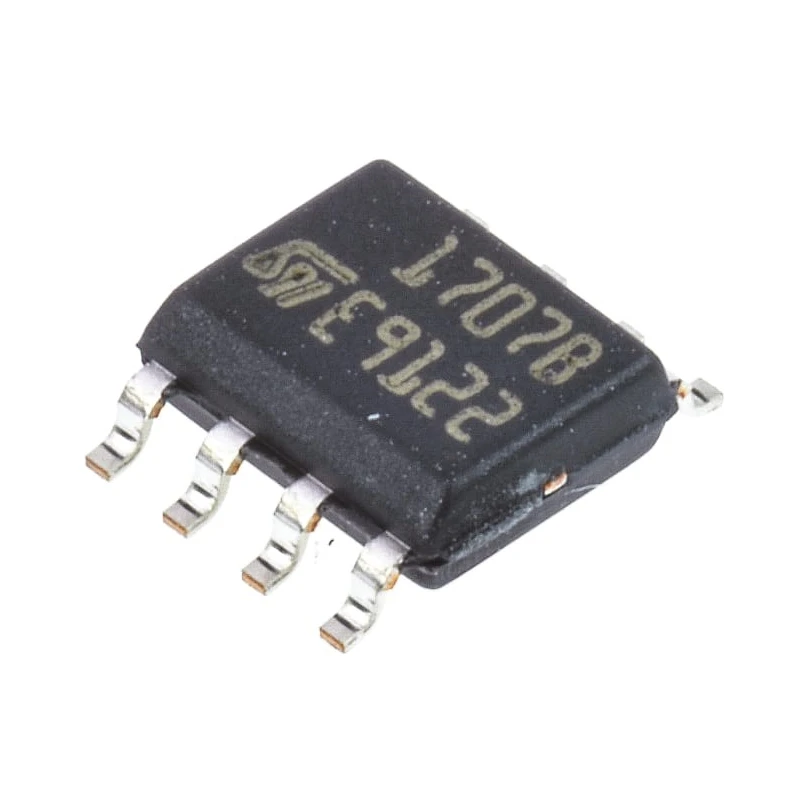

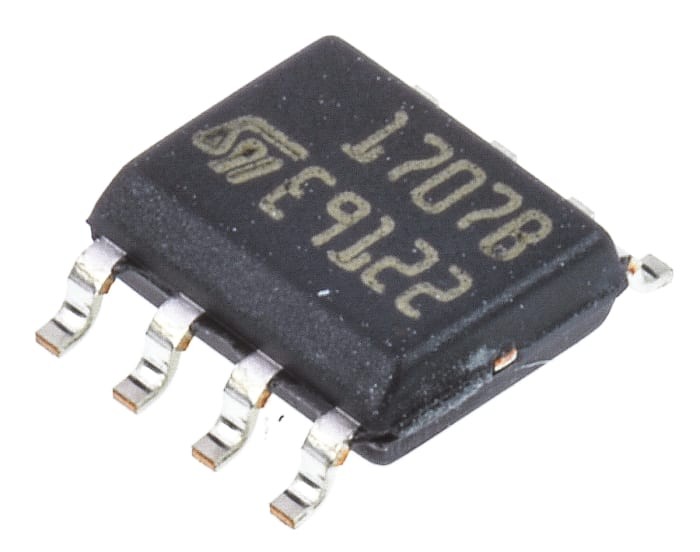

STMicroelectronics Power Switch IC 8-Pin SOIC 500mA Operating Current TDE1707BFP
Specifications
| Country of Origin | India |
|---|---|
| Brand | STMicroelectronics |
| Height | 1.25mm |
| Length | 5mm |
| Model | TDE1707BFP |
| Width | 4mm |
| Mount Type | Surface |
| Number of inputs | 1 |
| Maximum Operating Temperature | 85°C |
| Package Type | SOIC |
| Minimum Operating Temperature | -25°C |
| Operating Current | 500mA |
| Number of outputs | 2 |
| Pay online using | Or choose to pay later via bank transfer |
| RS Stock No. | 714-7897Brand: STMicroelectronicsManufacturers Part No.: TDE1707BFP |
| Pin Count | 8 |
| Maximum Supply Voltage | 50V |
| Minimum Supply Voltage | -10V |
| Two output configurations | Load to Ground (High Side Mode) and Load to positive Supply Voltage (Low side Mode) |
Key Features
- Supports up to 48 V power supply for versatile industrial use.
- Integrated indicator status LED driver for clear operation status.
- Features adjustable delay at switch-on ensuring controlled power application.
- Includes built-in thermal shutdown and supply/output reversal protection.
- High burst immunity with +5 V regulated auxiliary voltage.
- Compact 8-pin SOIC surface mount package with dimensions 5mm x 4mm x 1.25mm.
Product Description
STMicroelectronics TDE1707BFP Power Switch IC is an intelligent high and low side switch designed for power management in various electronic applications. This device is housed in an 8-pin SOIC package measuring 5mm in length, 4mm in width, and 1.25mm in height, suitable for surface mount technology on printed circuit boards.
Operating with a supply voltage range from -10 V to 50 V and an operating current of 500 mA, the IC supports two main output configurations enabling flexible load switching: high side (load to ground) and low side (load to positive supply). The device includes an indicator LED driver to signal status, adjustable power-on delay, and protection features such as thermal shutdown and supply/output reversal safeguarding.
The TDE1707BFP is designed for enhanced electromagnetic compatibility featuring high burst immunity and a built-in +5 V regulated auxiliary voltage. Its robust temperature operating range from -25°C to 85°C makes it suitable for industrial, automotive, and consumer electronic applications demanding reliable power switch control.
Supports up to 48 V power supply for versatile industrial use. Offers two output configurations: Load to Ground (High Side Mode) and Load to Positive Supply Voltage (Low Side Mode). Integrated indicator status LED driver for clear operation status.
Features adjustable delay at switch-on ensuring controlled power application. Includes built-in thermal shutdown and supply/output reversal protection. High burst immunity with +5 V regulated auxiliary voltage. Compact 8-pin SOIC surface mount package.
This power switch IC is ideal for use in power management and control circuits in industrial control systems, automotive electronics, HVAC equipment, and consumer electronics. Its intelligent functions and protections help improve system reliability and efficiency.
Explore more semiconductor power management solutions and Power Switch ICs in EnvMart’s extensive electronics catalog.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The TDE1707BFP has an operating current of 500 mA.
It operates within a supply voltage range of -10 V to 50 V.
This model has dimensions of 5 mm in length, 4 mm in width, and 1.25 mm in height.
The TDE1707BFP supports two output configurations: Load to Ground (High Side Mode) and Load to Positive Supply Voltage (Low Side Mode).
The maximum operating temperature for the TDE1707BFP is 85°C.
The minimum operating temperature is -25°C.
It is housed in an 8-pin SOIC package, suitable for surface mount technology.
Yes, it includes built-in thermal shutdown and supply/output reversal protection.
The integrated indicator LED driver signals the operational status of the device.
The TDE1707BFP features high burst immunity with a +5 V regulated auxiliary voltage.
This model is designed for surface mounting.
It is suitable for industrial control systems, automotive electronics, HVAC equipment, and consumer electronics.
