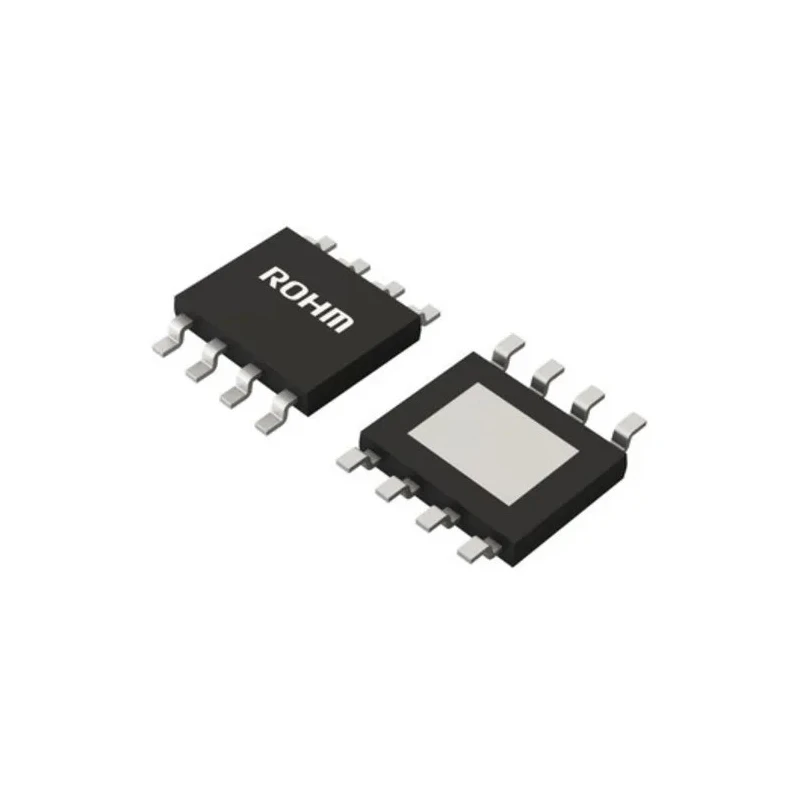

ROHM Low Side 1 Channel Power Switch IC 80mΩ RdsOn 7.5A Operating Current 8-Pin HTSOP-J BV1LF080EFJ-CE2
Specifications
| Country of Origin | India |
|---|---|
| Brand | ROHM |
| Model | BV1LF080EFJ-CE2 |
| Mount Type | Surface |
| Number of inputs | 1 |
| Maximum Operating Temperature | 150°C |
| Package Type | HTSOP-J |
| Minimum Operating Temperature | -40°C |
| Operating Current | 7.5A |
| Number of outputs | 1 |
| Interface Type | CMOS |
| Standards/Approvals | RoHS |
| Pin Count | 8 |
| Automotive Standard | AEC-Q100 |
| Maximum Supply Voltage | 6.5V |
| Minimum Supply Voltage | 3.5V |
| Switch On Resistance RdsOn | 80mΩ |
Key Features
- Built-in output slew rate control allows variable control by external resistance.
- Features integrated overcurrent protection and dual thermal shutdown.
- Active clamp functionality enhances device protection.
- Output diagnostic functions include thermal shutdown indication.
- Directly controllable via CMOS logic interface.
- Supports surface mount technology for compact PCB integration.
- Wide temperature operation range from -40°C to 150°C supports harsh environments.
- Minimum supply voltage is 3.5V with a maximum voltage of 6.5V.
Product Description
ROHM BV1LF080EFJ-CE2 is a low side single-channel power switch integrated circuit tailored for automotive and industrial applications, housed in an 8-pin HTSOP-J package. It delivers a low on-resistance (RdsOn) of 80mΩ and supports an operating current of 7.5A.
This power switch IC incorporates advanced safety features such as built-in overcurrent protection (OCP), dual thermal shutdown (TSD), and active clamp functions to safeguard the device under fault conditions. It also offers output slew rate control via an external resistor connected to the SR terminal, ensuring tailored switching speeds and reducing electromagnetic interference.
The device features an output diagnostic function that provides thermal shutdown status, enhancing system monitoring and reliability. Designed for direct control from CMOS logic inputs, it simplifies integration within digital control systems.
With an operating temperature range from -40°C to 150°C and a supply voltage range from 3.5V to 6.5V, it is well-suited for demanding automotive environments. The surface-mount HTSOP-J package facilitates efficient PCB layout and thermal dissipation.
Built-in slew rate control for EMI reduction and customized switching. Overcurrent and thermal protection ensure device safety. Diagnostic output provides real-time thermal shutdown feedback. CMOS logic interface allows seamless digital control.
Wide operating temperature supports harsh automotive conditions.
This power switch IC is ideal for automotive power management, industrial load switching, and other applications requiring robust, reliable, and compact power switching elements. The product complies with RoHS and AEC-Q100 automotive standards ensuring environmental and industry reliability compliance.
Explore the Electronics & Electricals > Semiconductor > Power Switch ICs category at EnvMart for this product and similar advanced power management components.
