Texas Instruments Bus Transceiver, 2-Bit Non-Inverting LVTTL Logic, Surface Mount, 8-Pin VSSOP SN74LVC2T45DCUT

Free Delivery in India | Lowest Global Shipping Charges

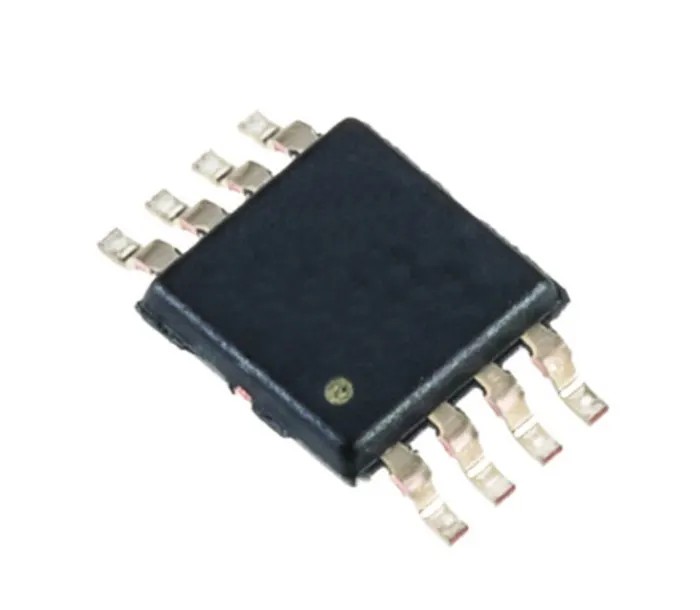

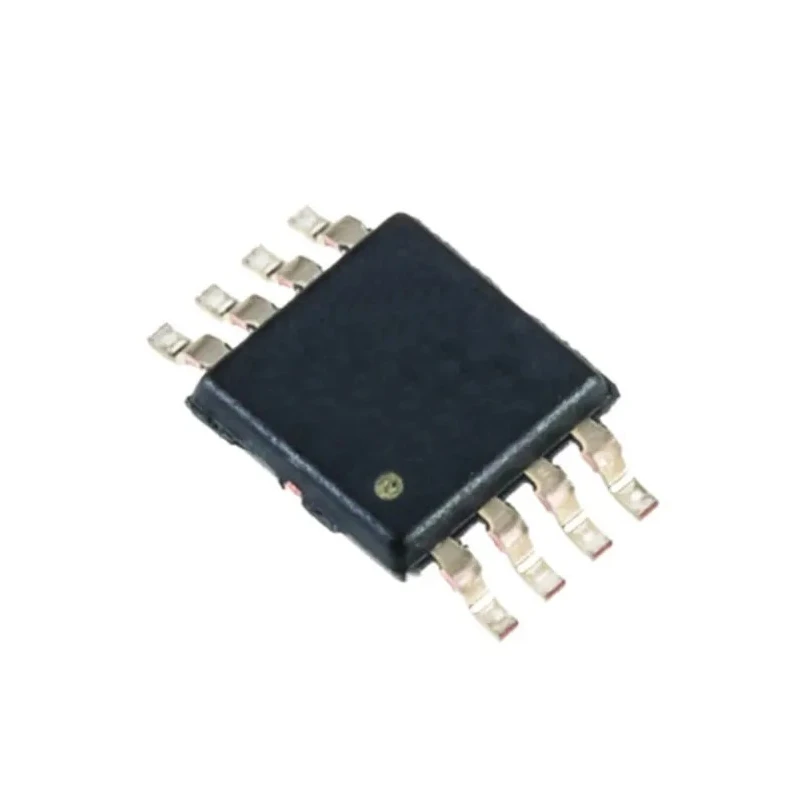

Texas Instruments Bus Transceiver, 2-Bit Non-Inverting LVTTL Logic, Surface Mount, 8-Pin VSSOP SN74LVC2T45DCUT

Name: Texas Instruments Bus Transceiver, 2-Bit Non-Inverting LVTTL Logic, Surface Mount, 8-Pin VSSOP SN74LVC2T45DCUT
Brand: Texas Instruments
SKU: 203434
Price: 1.56 USD
Availability: InStock



Category Bus Transceivers Brand Texas Instruments Condition New

Specifications

Country of Origin	India
Brand	Texas Instruments
Height	850μm
Length	2.3mm
Model	SN74LVC2T45DCUT
Mount Type	Surface
Compatibility	Input LVTTL/TTL, Output LVCMOS
Output type	3 State
Series	SN74LVC2T45
Maximum Operating Temperature	85°C
Package Type	VSSOP
Minimum Operating Temperature	-40°C
Polarity	Non-Inverting
Number Of Channels	2
Operating Voltage	1.65 to 5.5 V
Pin Count	8
Maximum Supply Voltage	5.5V
Logic Family	LVC
Logic Function	Bus Transceiver
Minimum Supply Voltage	1.65V
Maximum High Level Output Current	-32mA
Maximum Propagation Delay Time @ CL	15.1ns
Maximum Low Level Output Current	32mA
Output Level	LVTTL
Input Level	LVTTL

Key Features

Operates within a wide supply voltage range of 1.65 to 5.5 volts.
Features 2 channels with non-inverting bus transceiver logic function.
Supports LVTTL input and output levels with 3-state output type.
Low propagation delay time of 15.1 nanoseconds at specified conditions.
Designed for surface mounting in compact 8-pin VSSOP package with 2.3 mm length.
Wide operating temperature range from -40°C to 85°C for industrial applications.
Maximum output current of ±32 mA with compatibility for LVTTL and TTL logic levels.
Compliant with SN74LVC2T45 series from Texas Instruments with no automotive standard compliance.

Product Description

Texas Instruments SN74LVC2T45DCUT bus transceiver offers a versatile and compact solution for electronic applications requiring 2-bit, non-inverting bus transceiver functionality under low-voltage CMOS logic conditions. It supports operation over a wide voltage range from 1.65V to 5.5V, making it compatible with modern low-voltage systems.

This device features two channels, providing efficient bidirectional data transfer capabilities, and supports input LVTTL/TTL and output LVCMOS signal levels. The VSSOP surface mount package allows for a compact design with an overall length of 2.3 mm and height of 850 micrometers, ideal for space-constrained PCBs.

With a maximum propagation delay time of 15.1 ns at the rated load capacitance, it ensures timely signal transmission for high-speed digital circuits. The maximum high and low level output current ratings of ±32 mA enable it to drive various loads while maintaining signal integrity.

Operational across a temperature range of -40°C to 85°C, this bus transceiver is suitable for many industrial and commercial electronic environments. Though it does not conform to automotive standards, it adheres to the SN74LVC2T45 series specification for reliable and consistent performance.

This device is widely used in electronic circuits for bus interfacing, data buffering, and communication sub-systems. The compatibility with LVTTL logic levels ensures integration with multiple digital systems. It is also surface mountable, facilitating automated assembly processes.

Operates from 1.65 V to 5.5 V supply voltage. 2-bit non-inverting bus transceiver function. 3-state outputs for bus interface control. Compact 8-pin VSSOP surface mount package. Maximum propagation delay of 15.1 ns for fast switching.

Wide temperature operation range suitable for industrial use. Maximum output currents of ±32 mA. Compatible with LVTTL and TTL input and LVCMOS output levels. Height 850 µm to enable low profile electronic assemblies. Designed by Texas Instruments for reliable semiconductor performance.

Discover more bus transceiver solutions and Texas Instruments products on EnvMart to enhance your electronic designs.

Explore more products in our Bus Transceivers category.
