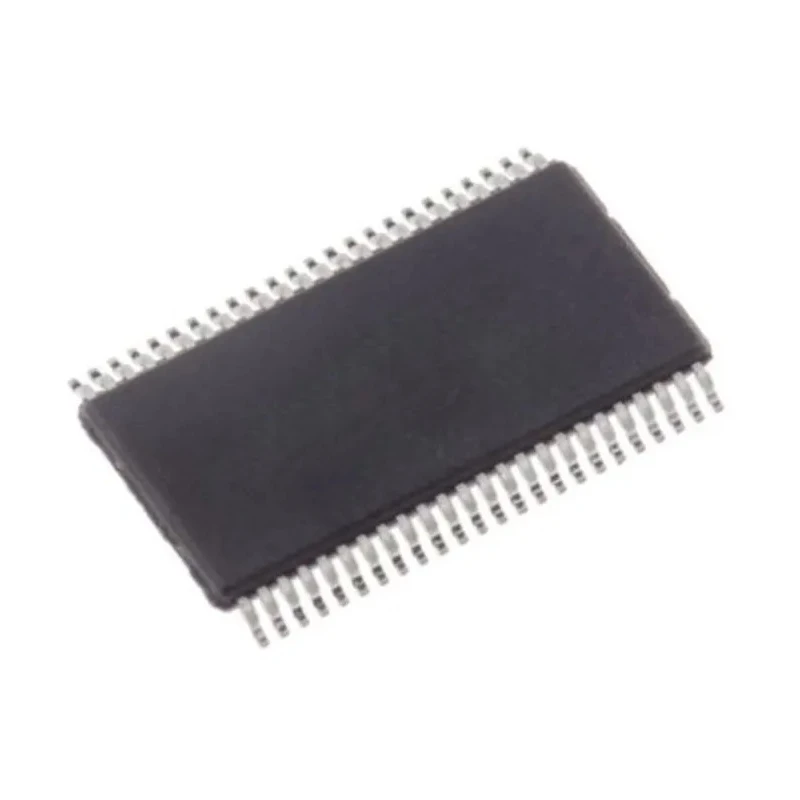

Renesas Electronics 8-Bit Non-Inverting 3 State Bus Transceiver, CMOS Logic Family, 48-Pin TSSOP 74ALVC164245PAG8

Free Delivery in India | Lowest Global Shipping Charges

Renesas Electronics 8-Bit Non-Inverting 3 State Bus Transceiver, CMOS Logic Family, 48-Pin TSSOP 74ALVC164245PAG8

Name: Renesas Electronics 8-Bit Non-Inverting 3 State Bus Transceiver, CMOS Logic Family, 48-Pin TSSOP 74ALVC164245PAG8
Brand: Renesas Electronics
SKU: 412205
Price: 1.22 USD
Availability: InStock



Category Bus Transceivers Brand Renesas Electronics Condition New

Specifications

Country of Origin	India
Brand	Renesas Electronics
Height	1mm
Length	12.5mm
Model	74ALVC164245PAG8
Mount Type	Surface
Output type	3 State
Series	74ALVC
Maximum Operating Temperature	85°C
Package Type	TSSOP
Minimum Operating Temperature	-40°C
Polarity	Non-Inverting
Number Of Channels	8
Pin Count	48
Maximum Supply Voltage	6V
Logic Family	CMOS
Logic Function	Bus Transceiver
Minimum Supply Voltage	-0.5V
Maximum High Level Output Current	50mA
Maximum Propagation Delay Time @ CL	5.8ns
Maximum Low Level Output Current	-50mA
Output Level	3 State
Input Level	CMOS

Key Features

Implements 8 non-inverting data channels supporting bidirectional bus operation.
Features 3-state output enabling high impedance mode for bus sharing.
Ensures maximum propagation delay of 5.8 nanoseconds at capacitive load.
Meets operating temperature range from -40°C to 85°C for robust performance.
Comes in a compact 48-pin TSSOP surface-mount package.
Output currents up to ±50 mA for high drive capability.
Utilizes CMOS technology for low static power consumption of about 0.4 µW.

Product Description

Renesas Electronics 74ALVC164245PAG8 is an 8-bit bus transceiver designed for level shifting and data transmission between two separate voltage domains. It features a non-inverting architecture and 3-state outputs ideal for bus-oriented systems requiring isolation and control.

This device supports dual power supply rails; the A port operates at 2.7V to 3.6V (typical 3.3V), while the B port is set for 5V ±0.5V, enabling seamless interfacing between different logic levels. It is housed in a 48-pin TSSOP package suitable for surface mounting in compact boards and systems.

The 74ALVC164245PAG8 guarantees fast signal propagation with a maximum delay time of 5.8 nanoseconds under a capacitive load, making it appropriate for high-speed applications. Its operational temperature range from -40°C to 85°C makes it suitable for industrial, automotive, and commercial environments.

Utilizing CMOS technology, this device ensures ultra-low static power consumption in typical operation. The rail-to-rail output swing design provides increased noise margin and signal integrity.

Typical applications include industrial automation, data communication systems, embedded systems, and electronic instrumentation where reliable bidirectional data transfer and voltage level adaptation are essential.

8 non-inverting channels for bidirectional data transfer. 3-state output drivers for bus multiplexing. Dual power supply rails for voltage level shifting. Fast switching with 5.8ns maximum propagation delay. Extended temperature range for industrial use.

Compact 48-pin TSSOP surface-mount package. High drive capability of ±50mA output current. Low static power consumption CMOS design. Discover a wide range of advanced semiconductor components on EnvMart, including Bus Transceivers like the 74ALVC164245PAG8, to customize and optimize your electronic designs.
