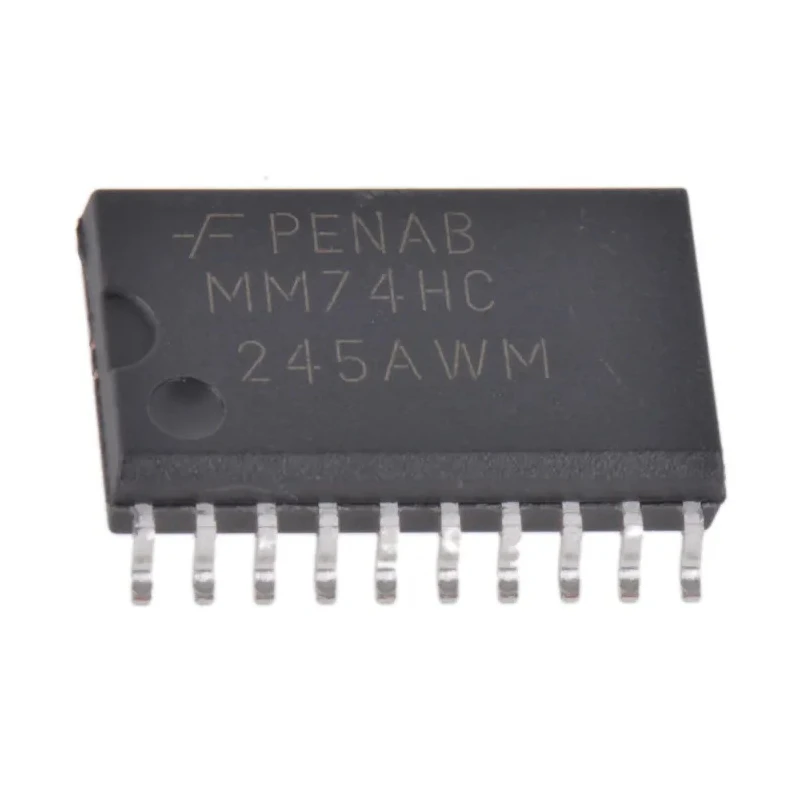

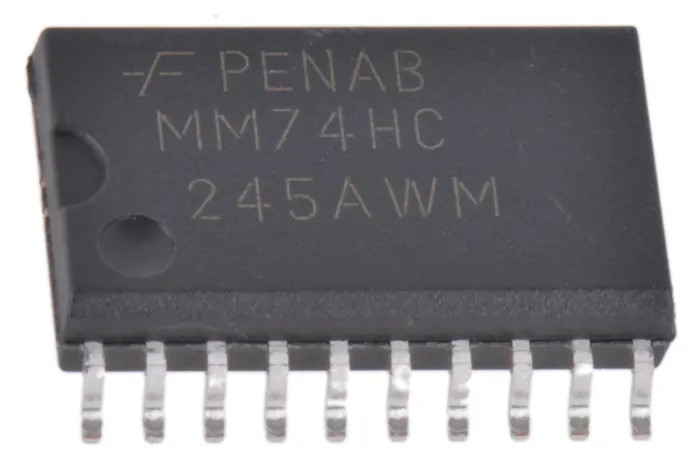

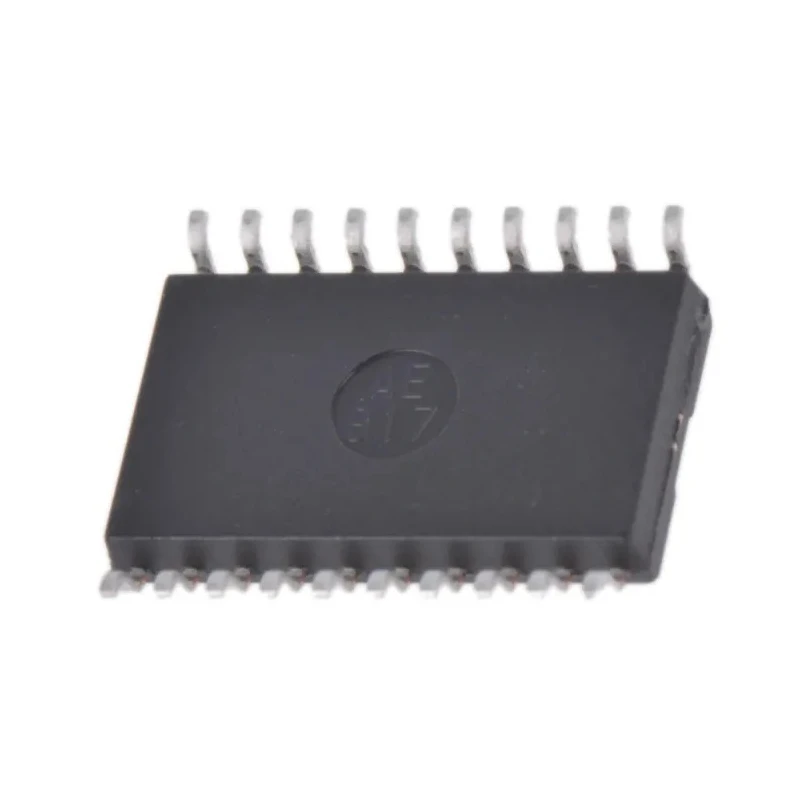

onsemi Bus Transceiver 8-Bit Non-Inverting CMOS, 20-Pin SOIC MM74HC245AWMX

The onsemi MM74HC245AWMX is a high-performance 8-bit bus transceiver belonging to the 74HC logic family. It features non-inverting CMOS technology and comes in a 20-pin SOIC surface mount package, making it suitable for compact and space-sensitive electronic designs. Power supply requirements range from 2 volts minimum to 6 volts maximum, providing flexibility for various logic voltage levels.

This transceiver supports 8 communication channels, providing efficient bidirectional data transfer with three-state output capability, which is essential for bus-oriented applications. It ensures compatibility with CMOS input and output levels, enabling seamless integration with other CMOS logic devices.

The device delivers a maximum propagation delay of 113 nanoseconds, supporting fast data switching in high-speed applications. It is rated to operate reliably in harsh industrial environments with operating temperatures ranging from -40°C to +85°C.

Physically, the MM74HC245AWMX occupies minimal PCB space with its 13 mm length, 7.595 mm width, and 2.35 mm height packaging. The robust electrical characteristics include output currents of ±35 mA, suitable for driving medium loads.

This bus transceiver IC is ideal for use in industrial controls, embedded systems, telecommunications equipment, and other electronic devices requiring reliable and efficient bidirectional data bus management.

Operates on 2 to 6 V supply voltage. Non-inverting, 8-channel communication. Three-state output for bus management. Compatible with CMOS input and output levels. Compact 20-pin SOIC packaging. High-speed switching with 113 ns propagation delay.

Industrial temperature range support. Output current ±35 mA capable. Dimensions optimized for tight PCB layouts.

The onsemi MM74HC245AWMX is part of a comprehensive family of 74HC logic devices, favored for their low power consumption and high noise immunity. This device supports various industrial and commercial applications requiring precise and efficient bus transceiver solutions.

Explore a wide range of related semiconductor and electronic components in the Bus Transceivers category at EnvMart for integrated, reliable, and efficient circuit designs.
