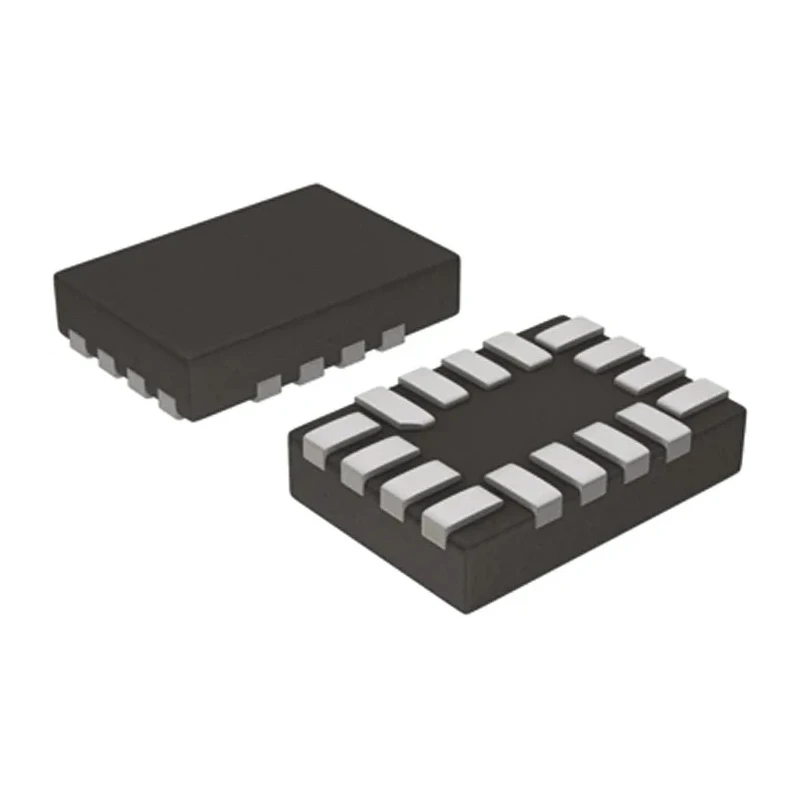

Texas Instruments 4-Bit Non-Inverting 3 State Bus Transceiver 16-Pin UQFN SN74AVC4T245RSVR

Texas Instruments SN74AVC4T245RSVR is a 4-bit bus transceiver designed for high-speed, non-inverting data transmission with 3-state outputs, ideal for modern semiconductor applications.

This logic IC operates over a supply voltage from 1.2V to 3.6V, providing low power operation compatible with a wide range of digital systems. The device features 4 bidirectional channels enabling efficient bus interfacing while supporting CMOS input logic levels and 3-state outputs to minimize bus contention.

Housed in a compact 16-pin UQFN surface-mount package with a length of 2.65mm and height of 500μm, this transceiver facilitates space-saving PCB designs. It delivers a maximum propagation delay of 5.6ns under standard load conditions, ensuring prompt signal switching suitable for data communication and control applications.

Texas Instruments’ SN74AVC4T245RSVR supports operating temperatures from -40°C to 85°C, qualifying it for use in industrial and commercial electronic equipment. The device also provides maximum high and low-level output currents of -12mA and 12mA respectively, enabling it to drive a variety of loads directly.

Applications include bus interfacing in computers, communication systems, and instrumentation where fast switching and signal integrity are critical. The device complies with standard semiconductor specifications but has no specific automotive rating or certifications.

Operates on very low minimum supply voltage of 1.2V for power sensitive designs. Provides 4 non-inverting, 3-state bidirectional channels in one IC. Low propagation delay time of 5.6ns improves system data throughput. Compact 16-pin UQFN package suitable for dense PCB layouts.

Wide operating temperature range of -40°C to 85°C supports harsh environments. Supports CMOS input logic levels and 3-state output levels for versatile interfacing. Maximum output current ±12mA securely drives connected devices.

Optimized for industrial, laboratory, and electronic manufacturing applications.

This product is ideal for electronic components, power, and connector applications requiring efficient bus transceiver functionality. It is suitable for industrial, laboratory, and commercial electronic systems.
