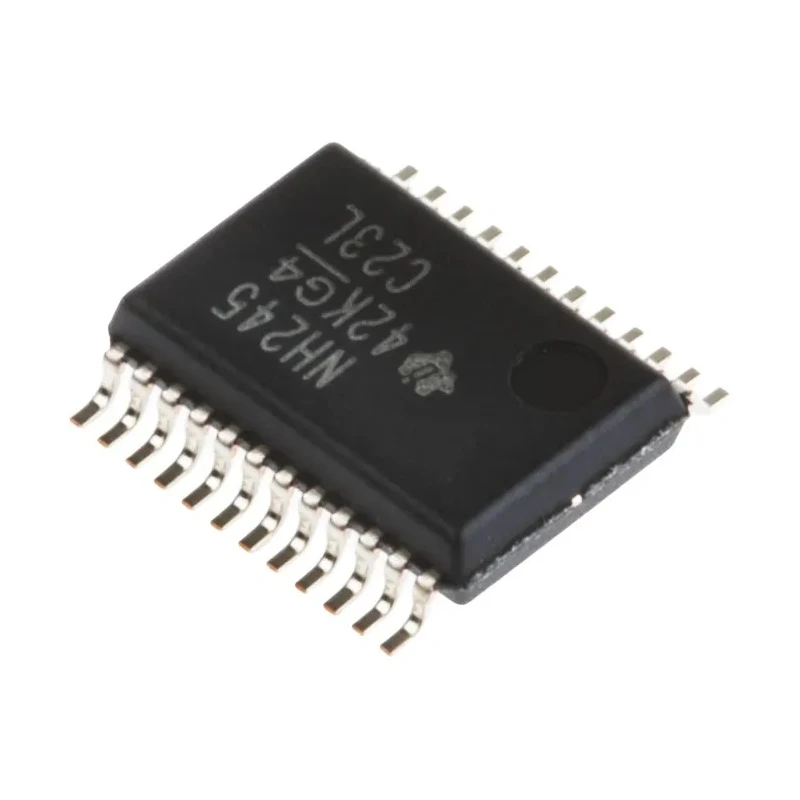

Texas Instruments 8-Bit Non-Inverting LVTTL Bus Transceiver, 24-Pin SSOP SN74LVC8T245DBR
Specifications
| Country of Origin | India |
|---|---|
| Brand | Texas Instruments |
| Height | 1.95mm |
| Length | 8.2mm |
| Model | SN74LVC8T245DBR |
| Mount Type | Surface |
| Compatibility | Input LVTTL/TTL, Output LVCMOS |
| Output type | 3 State |
| Series | SN74LVC8T245 |
| Maximum Operating Temperature | 85°C |
| Package Type | SSOP |
| Minimum Operating Temperature | -40°C |
| Polarity | Non-Inverting |
| Number Of Channels | 8 |
| Operating Voltage | 1.65 to 5.5 V |
| Pin Count | 24 |
| Maximum Supply Voltage | 5.5V |
| Logic Family | LVC |
| Logic Function | Bus Transceiver |
| Minimum Supply Voltage | 1.65V |
| Maximum High Level Output Current | -32mA |
| Maximum Propagation Delay Time @ CL | 23.4ns |
| Maximum Low Level Output Current | 32mA |
| Output Level | LVTTL |
| Input Level | LVTTL |
Key Features
- Operates with a voltage range from 1.65 V to 5.5 V.
- Implements a 3-state output type for flexible bus control.
- Features low-voltage CMOS logic compatible with LVTTL input and output levels.
- Includes 8 data channels supporting non-inverting operation.
- Has a compact package with 1.95 mm height and 8.2 mm length dimensions.
- Supports operating temperatures from -40°C to 85°C for industrial environments.
- Offers maximum propagation delay of 23.4 ns under specified load conditions.
- Designed for surface mount applications with a 24-pin SSOP footprint.
Product Description
Texas Instruments SN74LVC8T245DBR is an 8-bit non-inverting bus transceiver operating with LVTTL logic levels and supplied in a 24-pin SSOP surface mount package. This device supports voltage operation from 1.65 V up to 5.5 V, making it suitable for a wide range of low-voltage applications.
Designed for seamless bidirectional data communication, the transceiver features a 3-state output for bus contention management and flexible control on data channels. Its compatibility with input LVTTL and TTL levels, and output LVCMOS, enables integration with various digital logic families.
The device delivers a maximum propagation delay of 23.4 ns at specified load conditions and can operate reliably in harsh industrial environments within temperatures ranging from -40°C to 85°C.
The compact 24-pin SSOP package measures 8.2 mm in length and 1.95 mm in height, optimized for high-density PCB layouts and surface mounting applications.
This transceiver is ideal for use in electronic components and semiconductor systems requiring robust and low-power bus interfacing, including industrial automation, embedded systems, and data communication interfaces.
Operates over a wide supply voltage range from 1.65 V to 5.5 V. Offers 8 non-inverting data channels. Features a 3-state output for bus control flexibility. Compact 24-pin SSOP package supports surface mount technology. Compatible with LVTTL input levels and LVCMOS output levels.
Protected for industrial temperature range from -40°C to 85°C. Maximum propagation delay of 23.4 ns.
Explore more products in our Bus Transceivers category.
