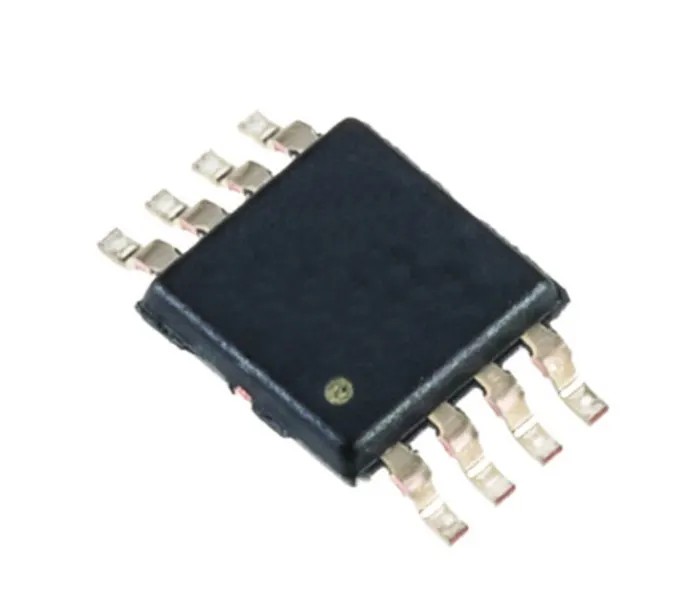

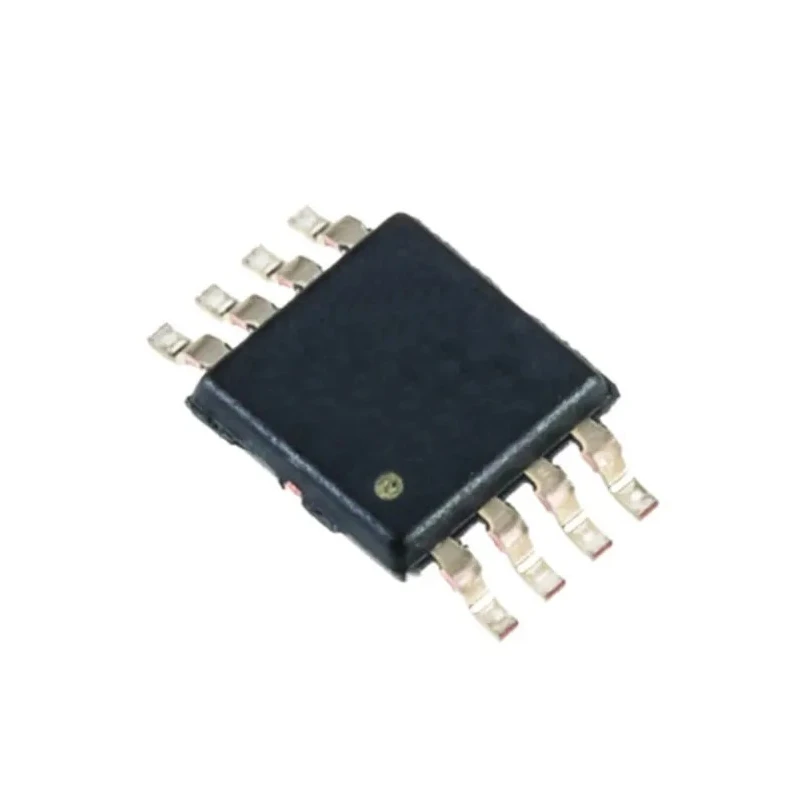

Texas Instruments Voltage Level Shifter 8-Pin VSSOP Bi-Directional Logic Translator TCA9406DCUR
Specifications
| Country of Origin | India |
|---|---|
| Brand | Texas Instruments |
| Height | 800μm |
| Length | 2.1mm |
| Model | TCA9406DCUR |
| Mount Type | Surface |
| Output type | 3 State |
| Series | TCA9406 |
| Maximum Operating Temperature | 85°C |
| Package Type | VSSOP |
| Minimum Operating Temperature | -40°C |
| Pin Count | 8 |
| Number of Elements per Chip | 1 |
| Maximum Supply Voltage | 5.5V |
| Logic Family | Translator |
| Logic Function | Voltage Level Translator |
| Minimum Supply Voltage | 1.65V |
| Maximum High Level Output Current | -50mA |
| Maximum Propagation Delay Time @ CL | 6.8ns |
| Direction Type | Bi-Directional |
| Maximum Low Level Output Current | 50mA |
| Translation | Voltage Level |
Key Features
- This device supports bi-directional voltage level shifting without the need for a direction pin.
- Maximum propagation delay time at capacitive load is 6.8 nanoseconds, ensuring fast signal translation.
- Operates efficiently between 1.65 V minimum and 5.5 V maximum supply voltage.
- Features 3-state output logic functionality for effective signal control.
- Compact surface mount package type facilitates easy PCB integration in electronics design.
- Functions reliably within operating temperatures ranging from -40°C to +85°C.
- Suitable for applications requiring voltage translation in digital systems and interfaces.
Product Description
Texas Instruments TCA9406DCUR is a bi-directional voltage level shifter designed to facilitate voltage translation between different logic families in digital circuits. Packaged in a compact 8-pin VSSOP surface mount form, this device enables seamless logic level conversion while supporting a wide operating voltage range from 1.65 V to 5.5 V.
This voltage level translator IC provides a maximum propagation delay time of 6.8 nanoseconds at capacitive load, ensuring efficient and rapid signal translation which is vital for modern digital communication and embedded electronics.
The TCA9406DCUR supports three-state output logic, allowing improved control in multiplexed or shared bus systems. It is rated for maximum low level output current of 50 mA and includes robust thermal and electrical characteristics to operate reliably across a broad industrial temperature range from -40°C to 85°C.
This surface mount technology device is well suited for applications in semiconductor logic ICs, embedded system interfaces, and industrial electronic components where voltage level translation is necessary to ensure compatibility and performance.
Enables bi-directional voltage level shifting without direction control pin. Compact 8-pin VSSOP package for PCB surface mounting. Fast propagation delay of 6.8 nanoseconds at load. Supports wide supply voltage range from 1.65 V to 5.5 V.
3-state output logic functionality for effective signal management. Industrial-grade operating temperature range (-40°C to 85°C). Suitable for semiconductor and electronic components requiring logic translation.
Texas Instruments products are recognized for their quality and innovation in the semiconductor industry. The TCA9406DCUR fits into a broad portfolio of logic ICs providing reliable performance for industrial, commercial, and laboratory-level electronic projects.
Explore more Semiconductor and logic IC products to find solutions optimized for specific voltage translation and electronic design challenges on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum supply voltage for this model is 5.5V.
The minimum operating temperature is -40°C.
The maximum propagation delay time at capacitive load is 6.8 nanoseconds.
This voltage level shifter has a pin count of 8.
It provides a 3-state output type for effective signal control.
The height of this model is 800μm.
It operates efficiently between 1.65 V and 5.5 V.
This device is designed for surface mount installation.
The maximum low level output current is 50 mA.
It is suitable for applications requiring voltage translation in digital systems and interfaces.
The country of origin for this model is India.
It can operate reliably within a temperature range from -40°C to 85°C.
