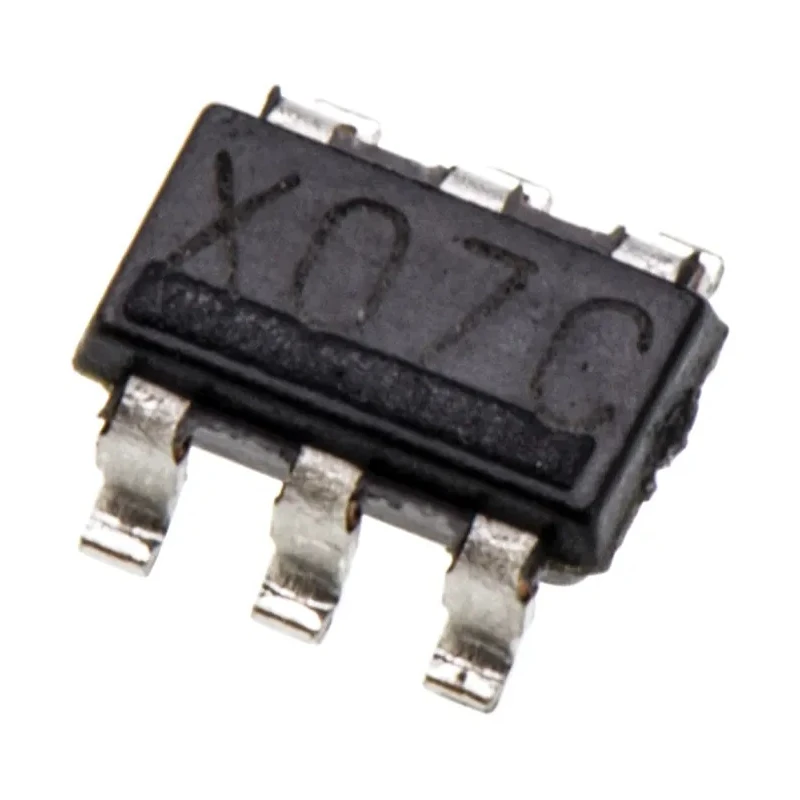

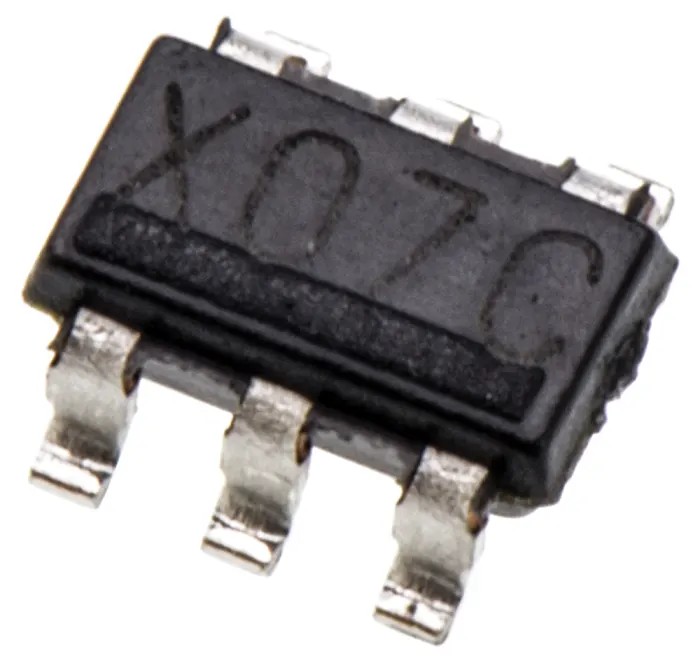

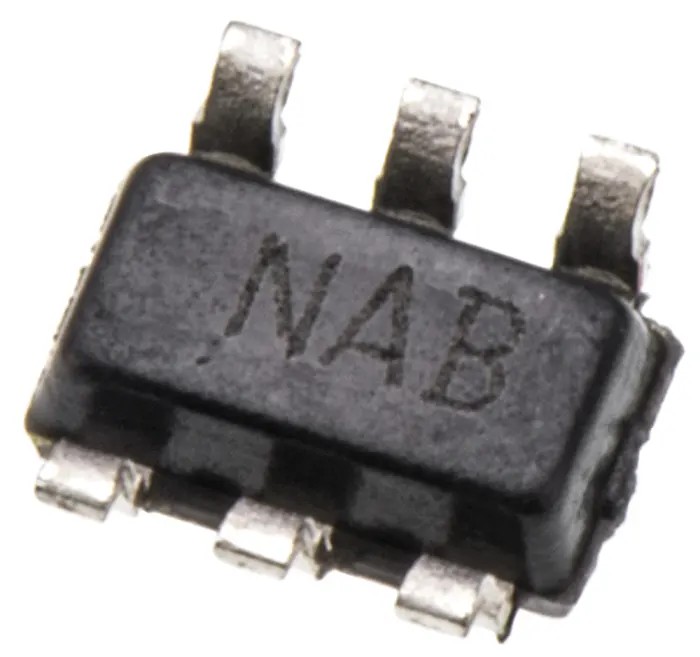

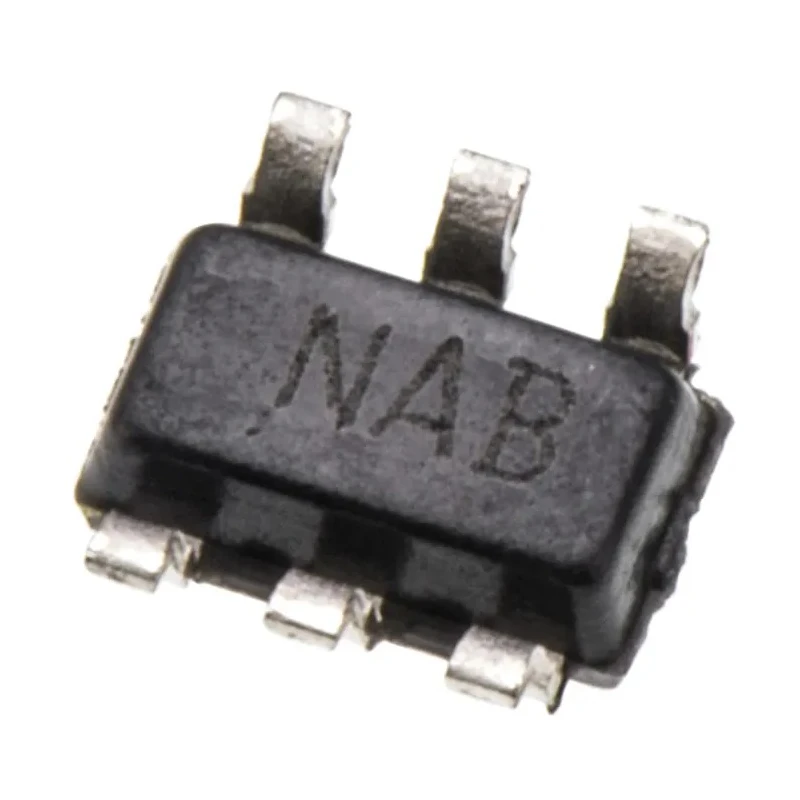

Texas Instruments 12-Bit Single-Channel SAR ADC 200 ksps, 6-Pin SOT-23 ADC121S021CIMF/NOPB
Specifications
| Country of Origin | India |
|---|---|
| Resolution | 12 bit |
| Brand | Texas Instruments |
| Height | 1.45mm |
| Length | 3.1mm |
| Model | ADC121S021CIMF/NOPB |
| Mount Type | Surface |
| Sampling rate | 200ksps |
| Series | ADC121S021 |
| Input Type | Voltage |
| Maximum Operating Temperature | 85°C |
| Package Type | SOT-23 |
| Minimum Operating Temperature | -40°C |
| Interface Type | SPI |
| Architecture | SAR |
| Pin Count | 6 |
| Minimum Supply Voltage | 3.3V |
| Number of ADCs | 1 |
Key Features
- Operates with a minimum supply voltage of 3.3 V for low power consumption.
- Interface supports SPI communication for easy integration into digital systems.
- Wide operating temperature range from -40°C to 85°C enables industrial and commercial use.
- Compact dimensions of 3.1 mm length and 1.45 mm height allow for space-constrained designs.
- Provides high accuracy 12-bit resolution conversion for precise analog signal measurement.
- Implements SAR architecture for fast and efficient signal sampling.
- Ideal for analog data acquisition in embedded and instrumentation applications.
Product Description
Texas Instruments ADC121S021CIMF/NOPB is a high-performance 12-bit analog to digital converter (ADC) featuring a single SAR ADC channel capable of sampling rates up to 200 ksps. This device is packaged in a compact 6-Pin SOT-23 surface mount package, which supports easy PCB integration while maintaining a small footprint.
This ADC operates on a minimum supply voltage of 3.3 V and supports SPI interface communication, making it compatible with a wide range of microcontrollers and digital systems. Its operating temperature range of -40°C to 85°C qualifies it for demanding industrial and automotive environments, though it is not rated as automotive standard.
The SAR architecture provides fast signal acquisition with efficient power usage, making it suitable for precise measurement applications such as sensor interfaces, portable instrumentation, and data acquisition systems. Its 12-bit resolution ensures detailed analog signal quantization, delivering accurate digital representations.
The device measures 3.1 mm in length and 1.45 mm in height, fitting easily into compact electronic assemblies. It features 6 pins arranged in the SOT-23 package style, facilitating reliable surface mount assembly.
Minimum supply voltage of 3.3 V for efficient low-voltage operation. Sampling rate of 200 ksps for high-speed data capture. SPI interface protocol for straightforward digital communication. Operational temperature range from -40°C to 85°C for robust performance.
Compact SOT-23 6-pin surface mount package. Single ADC channel architecture using SAR technology. 12-bit resolution for precise analog measurement conversion.
This ADC module is widely used in electronic components, power and connectors, semiconductor data converters for laboratory instruments, industrial equipment, and consumer electronics. It supports seamless integration into systems requiring reliable and accurate analog-to-digital conversion.
Discover more high-quality Semiconductor components like the ADC121S021CIMF/NOPB on EnvMart for your industrial and laboratory instrument applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has a maximum sampling rate of 200 ksps, allowing for high-speed data capture.
It provides a 12-bit resolution for precise analog signal measurement.
The ADC operates with a minimum supply voltage of 3.3 V, which supports low power consumption.
It supports SPI communication, making integration into digital systems straightforward.
The operating temperature range is from -40°C to 85°C, suitable for industrial and commercial use.
This ADC measures 3.1 mm in length and 1.45 mm in height, making it compact for space-constrained designs.
It features a single ADC channel architecture using SAR technology for efficient signal sampling.
It is designed for surface mounting, specifically in a 6-pin SOT-23 package.
The input type is voltage, suitable for various analog signal sources.
It implements SAR (Successive Approximation Register) architecture for fast and efficient signal sampling.
While it is qualified for industrial environments, it is not rated as automotive standard.
It is widely used in electronic components, power and connectors, and data acquisition systems for precise measurement.
