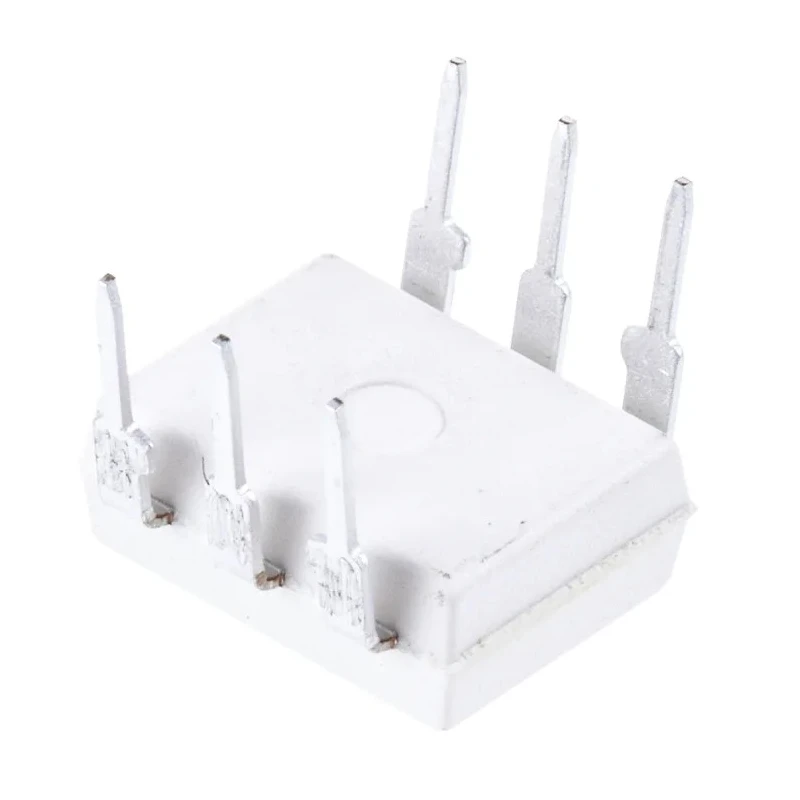

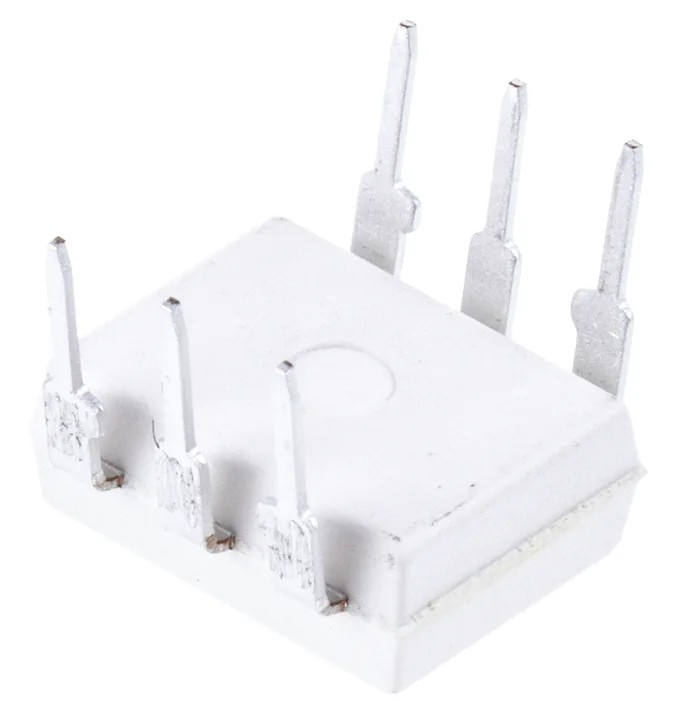

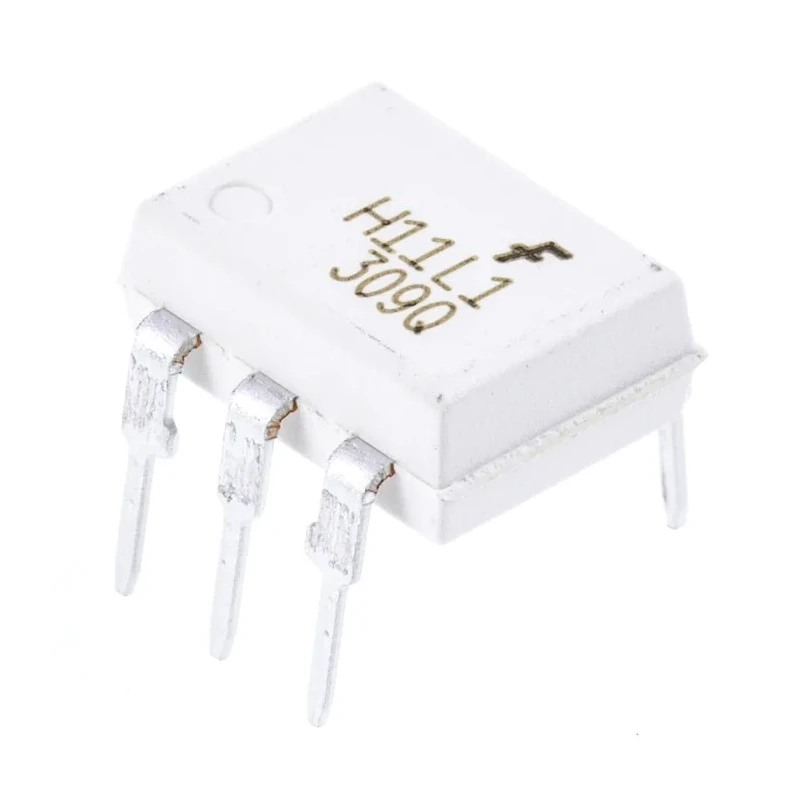

Fairchild Semiconductor DC Input Optocoupler, Through Hole Mount, 6-Pin DIP Package, 1 Channel, 1.5V Max Forward H11L1M
Specifications
| Country of Origin | India |
|---|---|
| Brand | Fairchild Semiconductor |
| Model | H11L1M |
| Packaging | Tape & Reel |
| Mount Type | Through Hole |
| Series | H11LXM |
| Maximum Operating Temperature | 85°C |
| Package Type | DIP |
| Minimum Operating Temperature | -40°C |
| Maximum input current | 60mA |
| Number Of Channels | 1 |
| Standards/Approvals | UL1577, DIN-EN/IEC60747-5-5 |
| Maximum Forward Voltage | 1.5V |
| Number of Pins | 6 |
| Input Current Type | DC |
| Typical Rise Time | 0.1μs |
Key Features
- This optocoupler uses a DC input current type suitable for signal isolation.
- It has a typical rise and fall time of 0.1 microseconds each, ensuring fast switching performance.
- The device can operate reliably within the temperature range of -40°C to 85°C.
- It offers an isolation voltage rating of 7.5 kVrms for high voltage isolation.
- Compliant with UL1577 and DIN-EN/IEC60747-5-5 standards for safety and performance.
- Packaged in tape and reel format, optimized for automated assembly processes.
- Designed without automotive standard compliance, intended for general electronic applications.
- Compatible with 1 channel logic output systems in various industrial and electronic equipment.
Product Description
Fairchild Semiconductor presents the H11L1M optocoupler, a high-performance device featuring a DC input with through-hole mounting and a 6-pin DIP package design. It is engineered to provide efficient electrical isolation between input and output signals using optical coupling, ideal for industrial, electronic, and automation systems.
The H11L1M supports a maximum forward voltage of 1.5V and a maximum input current of 60mA, allowing for reliable signal transmission with logic output compatibility. Its typical rise and fall times are both 0.1 microseconds, enabling fast switching necessary for dynamic electronic applications.
Designed to operate in temperatures ranging from -40°C to 85°C, this optocoupler is suitable for diverse environmental conditions spanning industrial and laboratory contexts. With an isolation voltage of 7.5 kVrms, it ensures safety and integrity of sensitive circuits by providing high voltage isolation between input and output.
The device complies with critical safety standards including UL1577 and DIN-EN/IEC60747-5-5, affirming its quality and adherence to international norms for optoelectronic components.
DC input current type for signal isolation applications. Fast switching with 0.1μs typical rise and fall times. High isolation voltage of 7.5 kVrms for safety assurance. Suitable for through-hole mounting in 6-pin DIP form factor.
Operating temperature range from -40°C to 85°C for versatility. Packaged in tape and reel format for automated production. No automotive standard compliance; general electronics application focus. Single channel logic output configuration for electronic circuits.
Fairchild Semiconductor H11L1M optocoupler is broadly used in electronic component assemblies, power and display electronics, and signal isolation solutions. Its robust construction and compliance with international standards make it suitable for industrial automation, telecommunications, power management systems, and general electronics manufacturing.
Explore the Fairchild Semiconductor category on EnvMart for detailed selections of optocouplers designed to meet stringent industrial and electronic specifications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum input current for this optocoupler is 60mA.
It has an isolation voltage rating of 7.5 kVrms, ensuring high voltage isolation between input and output.
The typical rise and fall time for the H11L1M is 0.1 microseconds each, allowing for fast switching performance.
This model operates reliably within a temperature range of -40°C to 85°C.
The H11L1M is designed for through-hole mounting and comes in a 6-pin DIP package.
It complies with UL1577 and DIN-EN/IEC60747-5-5 standards for safety and performance.
The H11L1M is packaged in tape and reel format, optimized for automated assembly processes.
This optocoupler features a single channel logic output configuration.
The maximum forward voltage for this model is 1.5V.
It utilizes a DC input current type suitable for signal isolation applications.
This optocoupler is suitable for various industrial and electronic applications, particularly for signal isolation.
The H11L1M belongs to the H11LXM series.
