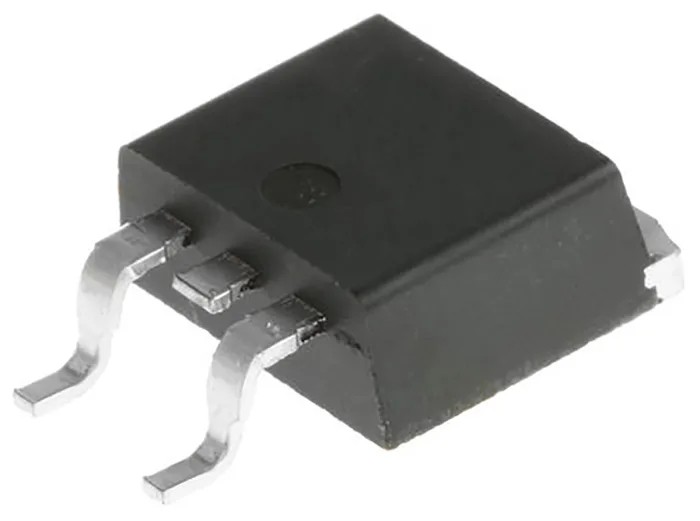

Fairchild Semiconductor N-Channel IGBT, 46 A, 390 V, 250 W, 3-Pin TO-263 Surface Mount ISL9V5036S3ST

Free Delivery in India | Lowest Global Shipping Charges

Fairchild Semiconductor N-Channel IGBT, 46 A, 390 V, 250 W, 3-Pin TO-263 Surface Mount ISL9V5036S3ST

Name: Fairchild Semiconductor N-Channel IGBT, 46 A, 390 V, 250 W, 3-Pin TO-263 Surface Mount ISL9V5036S3ST
Brand: Fairchild Semiconductor
SKU: 260043
Price: 4.61 USD
Availability: InStock



Category IGBT Brand Fairchild Semiconductor Condition New

Specifications

Country of Origin	India
Brand	Fairchild Semiconductor
Model	ISL9V5036S3ST
Mount Type	Surface
Series	EcoSPARK
Energy Rating	500mJ
Maximum Operating Temperature	175°C
Package Type	TO-263
Minimum Operating Temperature	-40°C
Standards/Approvals	RoHS Compliant
Pin Count	3
Maximum Continuous Collector Current Ic	46A
Maximum Collector Emitter Voltage Vceo	390V
Maximum Collector Emitter Saturation Voltage VceSAT	1.6V
Automotive Standard	AEC-Q101
Channel Type	N
Maximum Power Dissipation Pd	250W
Maximum Gate Emitter Voltage VGEO	±10 V

Key Features

This IGBT offers high efficiency and fast switching for power electronics applications.
Maximum power dissipation is 250 W, supporting substantial load conditions.
The device supports a maximum gate emitter voltage of ±10 V for reliable switching control.
Operates reliably between temperatures of -40°C to 175°C suitable for automotive and industrial environments.
The package type is TO-263 enabling surface mounting for compact circuit design.
Complies with RoHS, is AEC-Q101 automotive standard certified, ensuring quality and safety.
Energy rating is 500 mJ ensuring robustness for transient energy absorption.
Designed for use in industrial power control, automotive electronics, and discrete semiconductor applications.

Product Description

Fairchild Semiconductor ISL9V5036S3ST is a high-performance N-Channel Insulated Gate Bipolar Transistor (IGBT) designed for efficient power switching and control in demanding electronic circuits. This device features a maximum continuous collector current of 46 amperes and can tolerate up to 390 volts between collector and emitter, making it well-suited for robust power applications.

The transistor's low saturation voltage of 1.6 volts and high maximum power dissipation rating of 250 watts provide efficient conduction and thermal performance. It is housed in a 3-pin TO-263 surface mount package, which facilitates compact PCB layouts and improved thermal management in electronic assemblies.

Operating within a temperature range of -40°C to 175°C, the ISL9V5036S3ST meets the stringent requirements of automotive AEC-Q101 standards. Its ±10 V maximum gate emitter voltage ensures compatibility with typical gate drive circuits.

This IGBT is RoHS compliant, reflecting its adherence to environmental standards. It is ideal for use in industrial power controls, automotive electronics, and other semiconductor-based switching applications requiring fast switching and high current capability.

High continuous collector current of 46 A supports demanding power loads. Maximum collector emitter voltage of 390 V suitable for various industrial circuits. Allows power dissipation of up to 250 W for heat-intensive applications.

Compact TO-263 surface mount package enhances board space efficiency. Wide operating temperature range from -40°C to 175°C. Complies with RoHS and automotive AEC-Q101 standards. Energy rating of 500 mJ for transient resilience.

N-Channel type for common power switching architectures.

This product is a component for electronics manufacturing, including power management systems, motor drives, and automotive control units. It is part of the EcoSPARK series of Fairchild Semiconductor discrete IGBTs designed to optimize switching efficiency and thermal performance.
