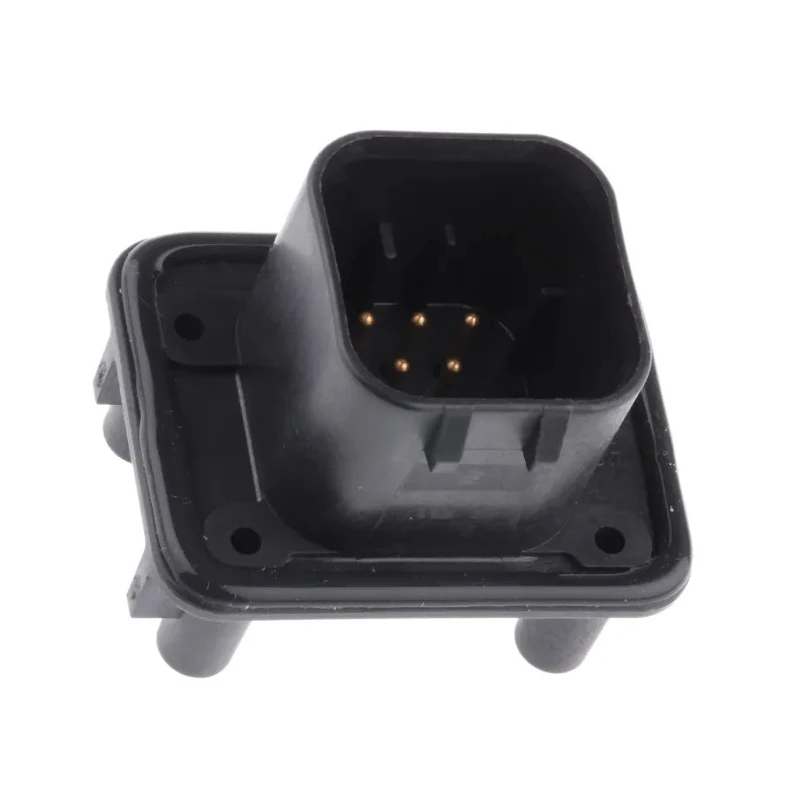

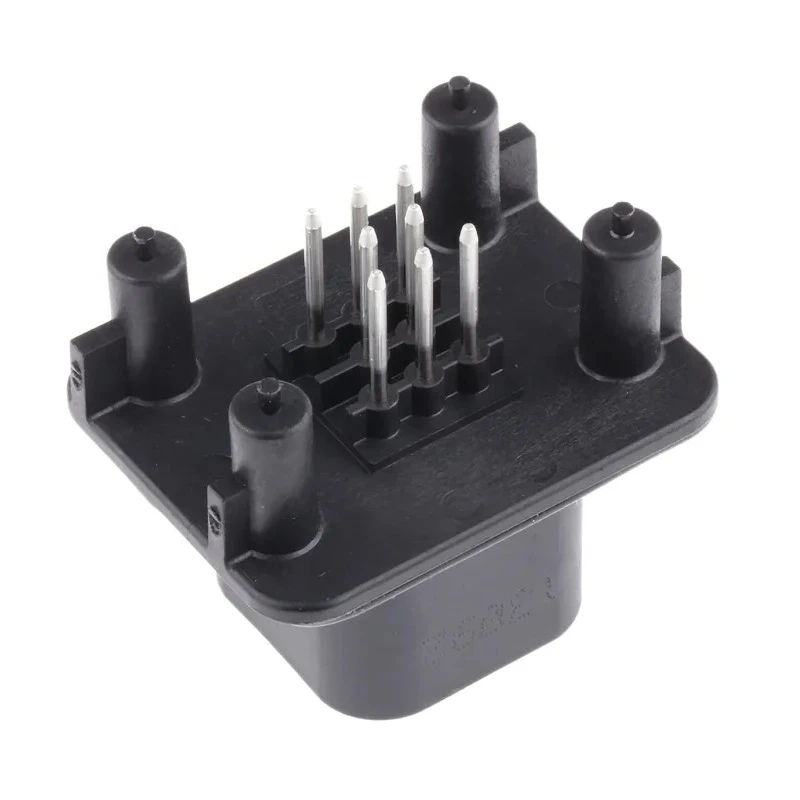

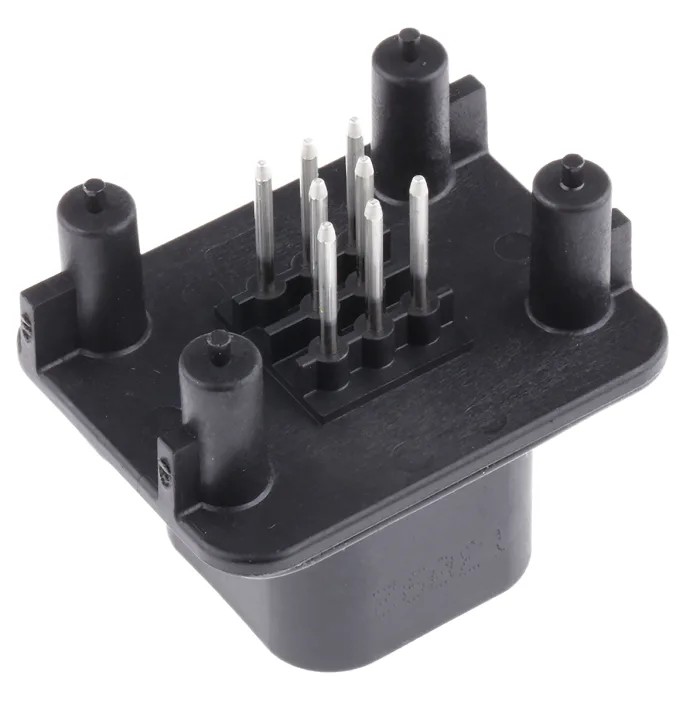

TE Connectivity Ampseal Automotive Connector Male Panel Mount 8 Way Solder Termination 1-776276-1
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Colour | Black |
| Current | 17A |
| Height | 32.1mm |
| Depth | 34.3mm |
| IP Rating | IP6K9K |
| Width | 40.8mm |
| Gender | Male |
| Mount Type | Panel Mount |
| Housing Material | Fibreglass Reinforced Polybutylene Terephthalate |
| Contact Material | Brass |
| Series | Ampseal |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Sub Type | PCB Connector |
| Minimum Operating Temperature | -40°C |
| Number of Rows | 3 |
| Contact Plating | Gold |
| Number of Contacts | 8 |
Key Features
- Designed for panel mount with solder termination and 8 contact points.
- Current rating of 17A suitable for automotive electrical systems.
- IP6K9K rated providing high resistance to dust and high-pressure water jets.
- Operating temperature range from -40°C to 125°C ensures durability in extreme environments.
- Constructed with fibreglass reinforced polybutylene terephthalate housing for ruggedness.
- Contacts made of brass with gold plating to ensure excellent conductivity and corrosion resistance.
- Male connector with 3 rows providing easy integration into automotive wiring systems.
- Series Ampseal designed for shock and vibration resistance in vehicles and industrial use.
Product Description
TE Connectivity 1-776276-1 Ampseal Automotive Connector Male Panel Mount is engineered for durable performance in harsh automotive and industrial conditions. It features solder termination with 8 contacts arranged in 3 rows, enabling secure electrical connections with a current rating of 17A. The connector housing is made from fibreglass reinforced polybutylene terephthalate, providing superior ruggedness and thermal stability over a wide operating temperature range of -40°C to +125°C.
This connector is IP6K9K rated, offering complete protection against dust ingress and high-pressure, high-temperature water jets, making it ideal for off-road vehicles, trucks, buses, construction, agriculture, marine, and two-wheeler applications. The gold-plated brass contacts enhance conductivity and provide excellent corrosion resistance even under vibration and shock stress.
The Ampseal series connectors are widely used in automotive electrical systems where reliability and robustness are critical. Its panel mount design allows for easy installation and maintenance while ensuring secure mating for long-lasting operation. This model, 1-776276-1, is suited for use in emergency service vehicles and other special circumstances requiring high performance under extreme conditions.
Panel mount automotive connector with solder termination and 8 contacts. Male gender connector with 3 rows configuration. Rated for 17A current carrying capacity. IP6K9K certified for dust and high-pressure water ingress protection.
Operating temperature range from -40°C to +125°C. Housing made of fibreglass reinforced polybutylene terephthalate for mechanical strength. Gold-plated brass contacts provide high conductivity and corrosion resistance. Series Ampseal designed for rugged industrial and automotive applications.
This TE Connectivity automotive connector supports industrial, automotive, marine, and heavy machinery applications where vibration, shock, and environmental protection are essential. Perfectly suitable for trucks, buses, agricultural equipment, and emergency vehicles requiring reliable electrical interconnections. Explore more Automotive Connectors and high-quality components with EnvMart to meet your demanding engineering needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has a current rating of 17A, making it suitable for automotive electrical systems.
It is rated IP6K9K, providing high resistance to dust and protection against high-pressure water jets.
The housing is made from fibreglass reinforced polybutylene terephthalate, while the contacts are made of brass with gold plating for enhanced conductivity and corrosion resistance.
The operating temperature range is from -40°C to +125°C, ensuring durability in extreme environments.
This model features 8 contacts arranged in 3 rows, facilitating secure electrical connections.
It uses solder termination, which allows for a secure and reliable connection.
The dimensions are 40.8mm in width, 34.3mm in depth, and 32.1mm in height.
It is suitable for automotive, marine, and heavy machinery applications, particularly where vibration, shock, and environmental protection are essential.
This connector is a male gender type, designed for panel mount installation.
This model belongs to the Ampseal series, which is designed for rugged industrial and automotive applications.
The country of origin for this connector is India.
The connector is black in color, which is typical for many automotive connectors.
