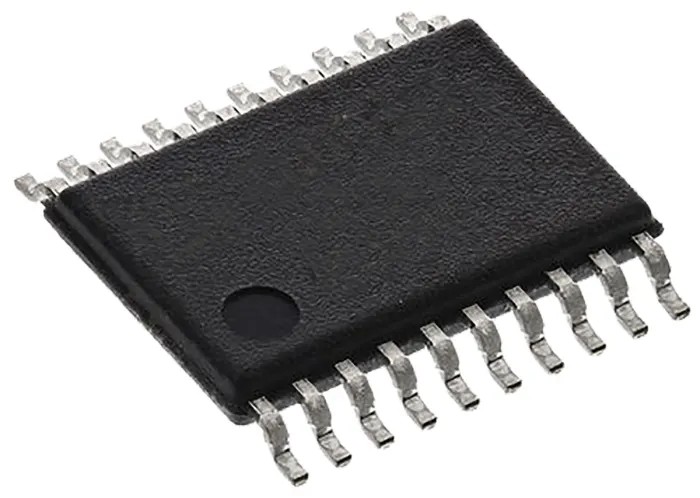

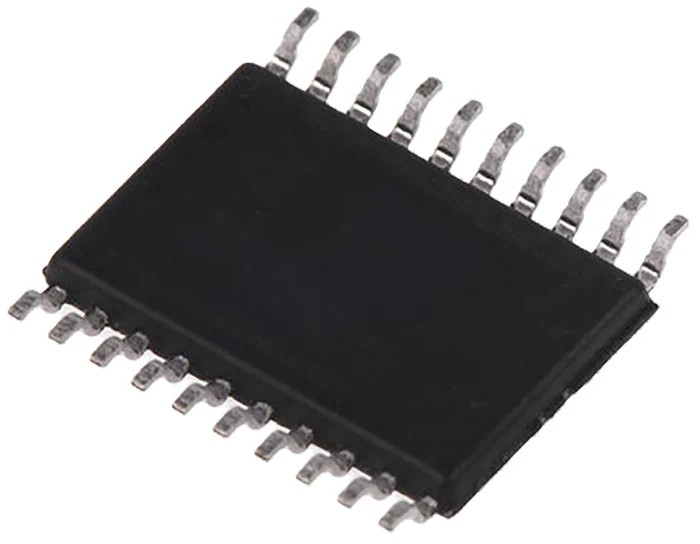

Fairchild Semiconductor 8-Bit Non-Inverting 3 State Bus Transceiver, 20-Pin TSSOP 74VCX245MTCX

Fairchild Semiconductor 74VCX245MTCX is an 8-bit non-inverting bus transceiver designed for high-performance data transfer in digital electronic systems. Packaged in a 20-pin Thin Shrink Small Outline Package (TSSOP), it supports surface mount technology suitable for compact PCB layouts and high-density assemblies.

The device operates within a supply voltage range of 1.4V to 3.6V, compatible with the VCX logic family, providing efficient low-voltage operation. It features eight channels capable of bidirectional data transfer with non-inverting logic polarity, allowing seamless integration into a variety of digital bus systems.

With a maximum propagation delay of 3.5 nanoseconds at load capacitance, this transceiver ensures rapid data communication. The 3-state output capability enables multiple devices to share a common bus line without interference, enhancing system flexibility and scalability.

Designed for use in industrial and electronic manufacturing applications, it performs reliably across a wide temperature range of -40°C to +85°C. The maximum output current is rated at ±24 milliamps, providing sufficient drive strength for connected loads.

The compact 6.5mm length and 900μm height of the TSSOP package facilitate high-density placements on PCBs, making it ideal for modern electronics assembly including computing, communications, and control systems.

Operates with a logic family of VCX, ensuring compatibility with modern CMOS designs. Supports 8 bidirectional channels for versatile data transfer capabilities. Operates over a voltage range of 1.4V to 3.6V to accommodate low-power applications.

Maximum propagation delay time of 3.5 nanoseconds enables fast signal switching. Designed for surface mount applications with a compact 6.5mm length and 900μm height package. Features non-inverting polarity and 3-state output levels for flexible bus control.

Reliable operation in temperatures from -40°C to +85°C suits industrial environments. Maximum output current ratings of ±24mA support robust load driving.

This Fairchild Semiconductor bus transceiver is well-suited for use in industrial electronics, computing hardware, communication equipment, and embedded system designs. It supports efficient data communication across electronic buses in demanding applications requiring speed and reliability.
