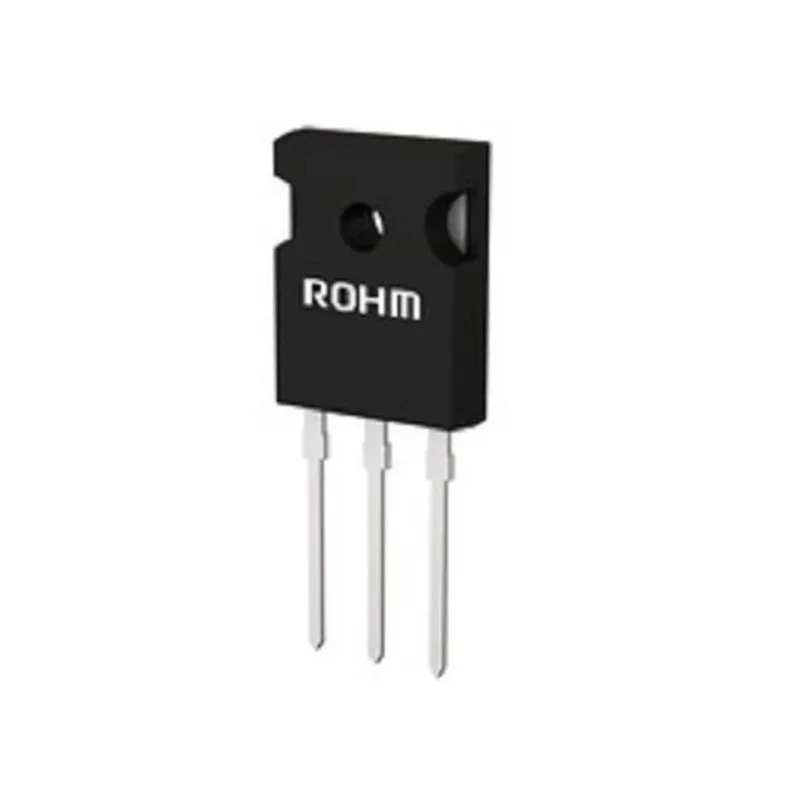

ROHM IGBT 30 A 600 V 3-Pin TO-247GE Through Hole RGCL60TS60DGC13
Specifications
| Country of Origin | India |
|---|---|
| Brand | ROHM |
| Model | RGCL60TS60DGC13 |
| Mount Type | Through Hole |
| Series | RGCL60TS60DGC13 |
| Maximum Operating Temperature | 175°C |
| Package Type | TO-247GE |
| Minimum Operating Temperature | -40°C |
| Standards/Approvals | RoHS |
| Pin Count | 3 |
| Maximum Continuous Collector Current Ic | 30A |
| Maximum Collector Emitter Voltage Vceo | 600V |
| Maximum Collector Emitter Saturation Voltage VceSAT | 1.4V |
| Maximum Power Dissipation Pd | 111W |
| Maximum Gate Emitter Voltage VGEO | ±30 V |
Key Features
- Maximum continuous collector current is 30 A for robust operation.
- Maximum collector emitter voltage rating is 600 V ensuring high voltage tolerance.
- Low collector emitter saturation voltage of 1.4 V reduces power losses.
- Robust TO-247GE through hole package with 3 pins allows reliable mounting and thermal management.
- Built-in very fast and soft recovery freewheeling diode supports soft switching.
- Operation temperature range from -40°C to 175°C suits various environments.
- RoHS compliant and Pb-free lead plating ensure environmental safety.
- Maximum power dissipation rating of 111 W supports high power applications.
Product Description
ROHM RGCL60TS60DGC13 IGBT is a high-performance insulated gate bipolar transistor module designed for a wide range of high voltage and high current power applications. Featuring a continuous collector current rating of 30 A and a maximum collector emitter voltage of 600 V, it supports energy-saving operation through its low collector emitter saturation voltage of 1.4 V, contributing to high efficiency in power switching.
Encapsulated in a 3-pin TO-247GE package, this IGBT supports through hole mounting ensuring robust mechanical stability and efficient heat dissipation, making it suitable for industrial and manufacturing environments.
The device features a built-in very fast and soft recovery freewheeling diode, suitable for soft switching applications that reduce switching losses and electromagnetic interference.
Operating reliably within a wide temperature range from -40°C to 175°C, it complies with RoHS standards and implements Pb-free lead plating to meet environmental safety requirements.
This IGBT is ideal for use in motor drives, power inverters, and other industrial power control systems requiring high current and voltage capability with efficient operation. Maximum continuous collector current: 30 A. Maximum collector emitter voltage: 600 V.
Low collector emitter saturation voltage: 1.4 V. Package type: TO-247GE. Mount type: Through hole. Operating temperature range: -40°C to 175°C. Built-in very fast and soft recovery diode for soft switching. RoHS compliant and Pb-free lead plating.
Maximum power dissipation: 111 W. Maximum gate emitter voltage: ±30 V.
Explore more high-quality semiconductor components and IGBT modules in our Electronics & Electricals category at EnvMart for industrial, manufacturing, and power management applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous collector current for this model is 30 A.
This IGBT has a maximum collector emitter voltage rating of 600 V.
The low collector emitter saturation voltage is 1.4 V, which helps in reducing power losses.
It operates reliably within a temperature range from -40°C to 175°C.
The IGBT is encapsulated in a TO-247GE package, which supports through hole mounting.
The maximum power dissipation rating for this model is 111 W.
Yes, it features a built-in very fast and soft recovery freewheeling diode, suitable for soft switching applications.
The maximum gate emitter voltage for this IGBT is ±30 V.
Yes, it is RoHS compliant and features Pb-free lead plating to ensure environmental safety.
It is suitable for use in motor drives, power inverters, and other industrial power control systems requiring high current and voltage capability.
This model has a pin count of 3.
The country of origin for this IGBT is India.
