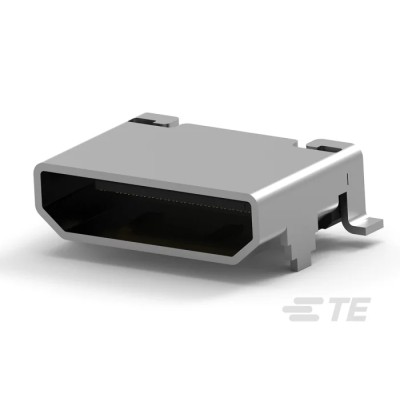

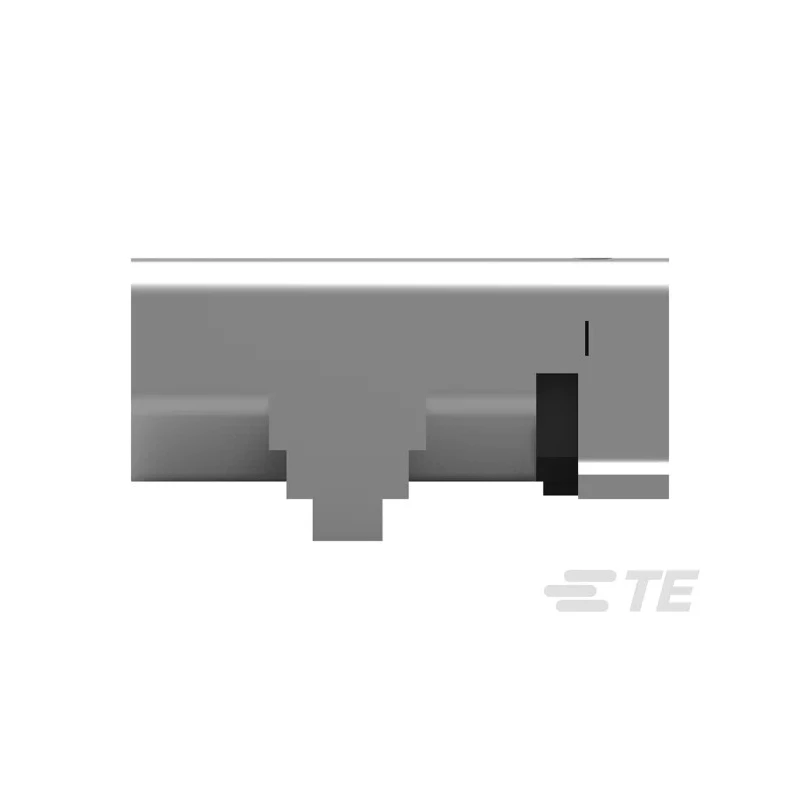

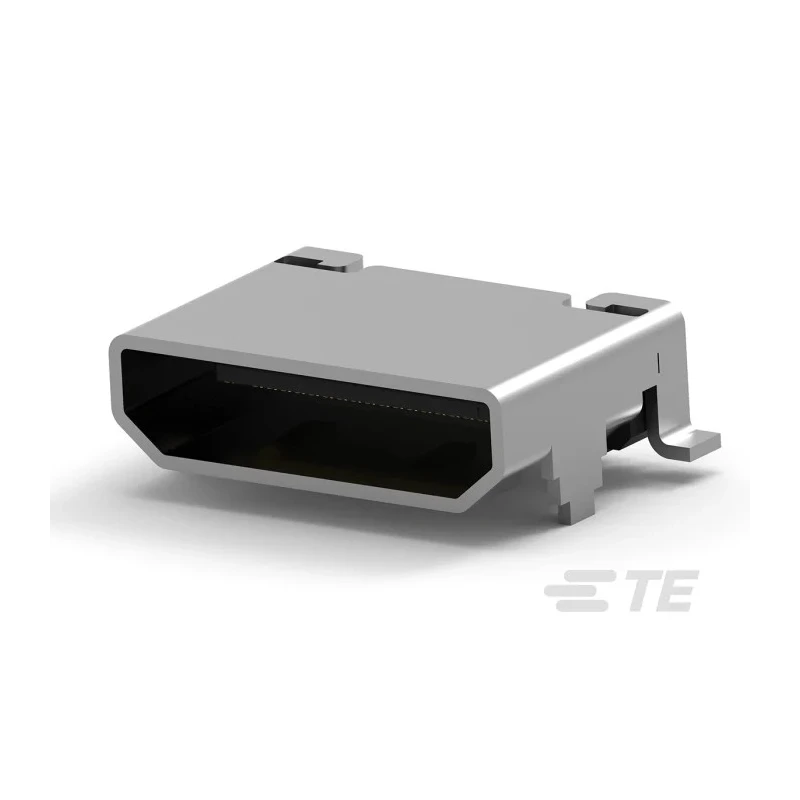

TE Connectivity Miniature 19 Way Right Angle Female HDMI Connector 40V 2013978-1

TE Connectivity 2013978-1 Miniature 19 Way Right Angle Female HDMI Connector is engineered for high-performance electronic applications requiring compact connectors. It features a 19-contact layout with gold-plated copper alloy contacts ensuring excellent signal integrity and corrosion resistance.

The connector's miniature size and right angle orientation make it ideal for space-constrained printed circuit board (PCB) installations, especially in signal transmission roles. Designed for surface mount applications, it offers a solder termination method with PCB mount retention via straight legs on top of PCBs with standard 1.6 mm thickness.

This HDMI connector supports a maximum current rating of 500mA and is rated for voltages up to 40V, providing suitable electrical characteristics for various consumer and industrial electronic devices.

Its thermoplastic black housing offers durability and insulation across an operating temperature range of -25°C to 70°C, ensuring reliable performance under diverse environmental conditions.

The connector supports a mating cycle life of up to 5000 cycles, with a maximum soldering temperature specification of 250°C, ensuring longevity and robustness during manufacturing and usage.

Features 19 gold-plated copper alloy contacts for excellent conductivity and durability. Miniature right angle female design optimizes PCB space utilization. Solder termination with surface mount technology ensures reliable connections.

Compact housing made from thermoplastic provides robust insulation and protection. Rated for 40V voltage and 500mA current for electronic signal applications. Operates efficiently within temperature ranges from -25°C to 70°C.

Supports up to 5000 mating cycles for long-lasting use. Packaging on tape and reel facilitates automated assembly processes.

This TE Connectivity HDMI connector is widely used in industrial electronics, consumer devices, telecommunications, and testing equipment applications where compact, reliable AV connectors are essential. Its high-quality plating and robust design make it suitable for manufacturing, laboratory, and commercial electronic assembly environments.
