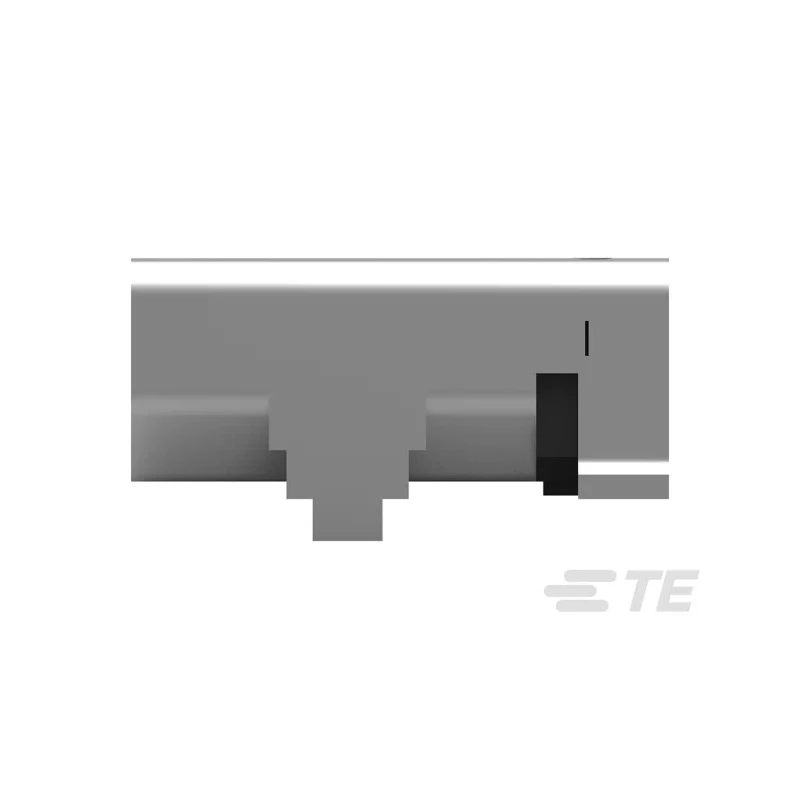

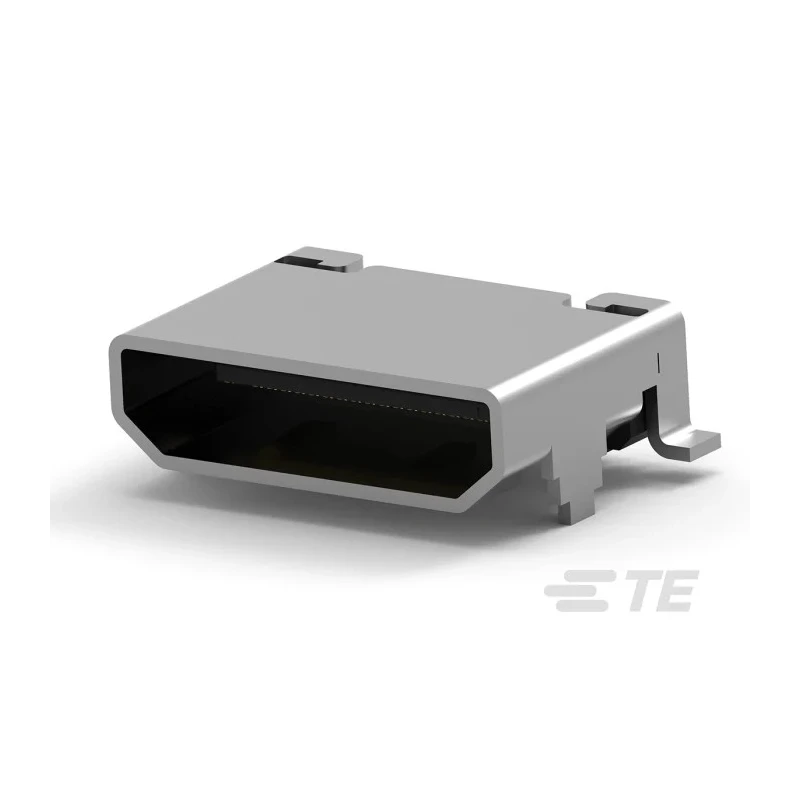

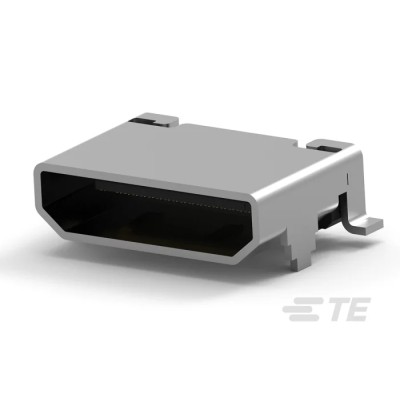

TE Connectivity Miniature 19 Way Right Angle Female HDMI Connector 40V 2013978-1

TE Connectivity 2013978-1 Miniature 19 Way Right Angle Female HDMI Connector 40V is a high-quality electronic component engineered for reliable signal transmission in HDMI applications. This miniature connector features a right angle style female receptacle with 19 gold-plated contacts made from copper alloy, designed for superior electrical conductivity and long service life.

The connector is surface mount type, suitable for direct soldering onto printed circuit boards. It is engineered to withstand operating temperatures from -25°C to 70°C and supports a current rating up to 500mA with voltage resistance up to 40V, making it ideal for diverse industrial, consumer electronic, and AV equipment environments.

The robust thermoplastic housing provides durable insulation and protection, while the right angle configuration enables efficient PCB layout and space savings. Featuring a mating cycle rating of up to 5000 cycles, this connector is suitable for repeated connections in high-use applications. The termination is carried out by soldering, capable of withstanding soldering temperatures up to 250°C for secure and reliable mounting.

TE Connectivity 2013978-1 series connectors have no specified standards or approvals but maintain industry-grade quality expected of TE products. Their black color housing and matte shell plating finish (tin over nickel) complement modern PCB designs.

This connector is commonly used in electronic manufacturing, AV device assembly, consumer electronics, and other applications requiring high-reliability HDMI connections. The product is supplied on tape & reel packaging to facilitate automated placement and assembly lines.

Features a 19-contact female interface ideal for miniature HDMI connections. Constructed with copper alloy contacts plated in gold to ensure superior conductivity. Designed for surface mount with a right angle orientation suitable for PCB board mounting.

Operates safely at a voltage rating of 40V with a current rating of 500mA. Housing made of durable thermoplastic material and finished in black color. Supports a temperature range from -25°C to 70°C for versatile application environments.

Termination type is solder, with a maximum soldering temperature of 250°C. Intended for signal circuit applications with a maximum of 5000 mating cycles. Connector series 2013978 with country of origin specified as China.

Offered with tape & reel packaging for ease of automated assembly processes. Explore a wide range of HDMI Connectors and components at EnvMart for your electronic assembly and manufacturing needs with trusted TE Connectivity quality.
