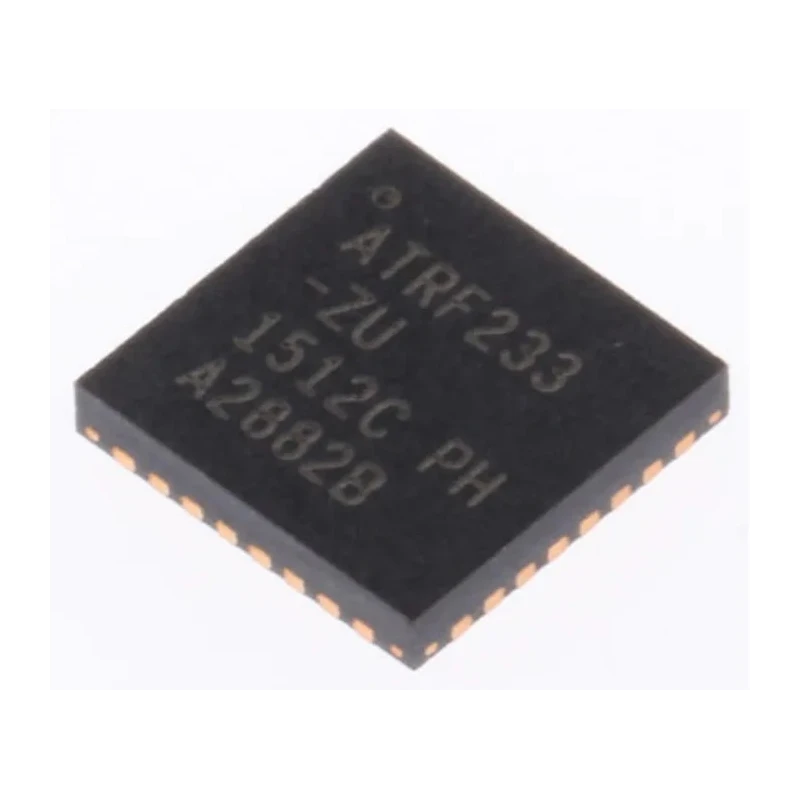

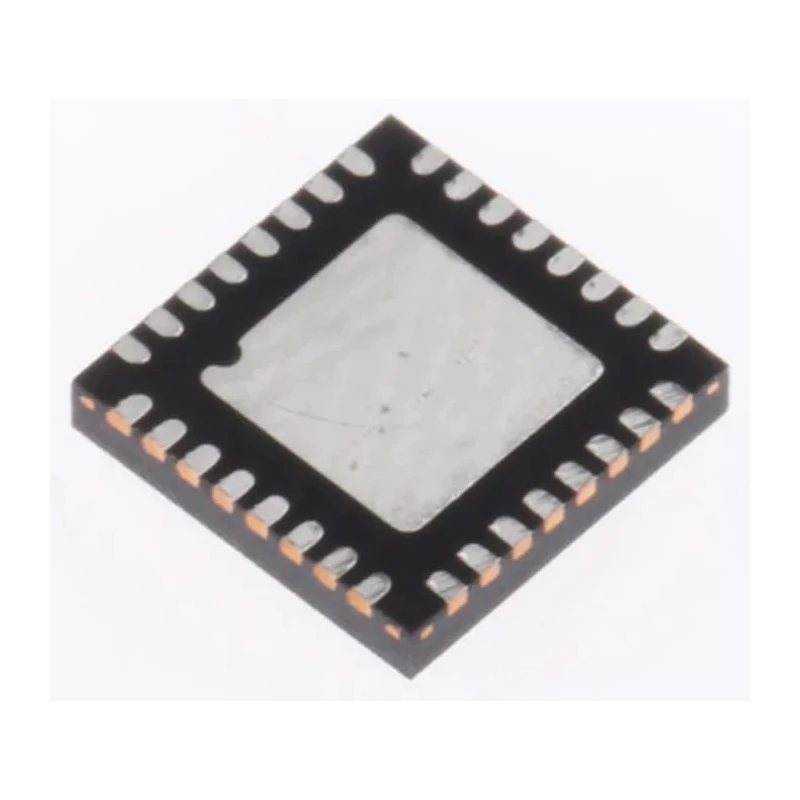

Microchip ZigBee Transceiver 2.4GHz IEEE 802.15.4 O-QPSK Modulation 32-Pin QFN Surface Mount AT86RF233-ZU
Specifications
| Country of Origin | India |
|---|---|
| Brand | Microchip |
| Height | 1mm |
| Operating Temperature Range | -40 to +85°C |
| Length | 5mm |
| Model | AT86RF233-ZU |
| Technology | IEEE 802.15.4 |
| Width | 5mm |
| Mount Type | Surface |
| Series | AT86RF231-ZU |
| Maximum Operating Temperature | 85°C |
| Package Type | QFN |
| Sub Type | Transceiver |
| Minimum Operating Temperature | -40°C |
| RF Frequency Range | 2405 to 2480MHz |
| Receiver Sensitivity | -101dBm @ 250kbps, 1% PER |
| Interface Type | SPI |
| Pin Count | 32 |
| Maximum Supply Voltage | 3.6V |
| Minimum Supply Voltage | 1.8V |
| Host communication | serial SPI |
| Modulation Technique | O-QPSK |
| Modulation | O-QPSK with 2000kchip/sec DSSS |
| OTA Data Rate | up to 2Mbps |
| Operating Band 1 Frequency | 2527MHz |
| Operating Band 2 Frequency | 2480MHz |
| Number of Operating Bands | 2 |
| Microchip AT86RF233-ZU, Zigbee Transceiver 2.32GHz to 2.5GHz 32-Pin QFNBrand | Microchip |
Key Features
- Supports O-QPSK modulation with data rates up to 2000Mbps.
- Features a 32-pin QFN surface mount package with SPI interface.
- Operates at supply voltages from 1.8V to 3.6V with low power consumption.
- Provides excellent receiver sensitivity of -101dBm at 250kbps with 1% packet error rate.
- Compliant with multiple approvals including RoHS, FCC, EN 300 328/440 and IEEE 802.15.4 standards.
- Includes AES-128 security module and supports frequency hopping spread spectrum.
- Operating temperature range from -40°C to +85°C suitable for harsh environments.
- Ideal for ZigBee, 6LoWPAN, RF4CE systems, and IoT wireless sensor networks.
Product Description
Microchip AT86RF233-ZU ZigBee Transceiver is a 2.4GHz IEEE 802.15.4-2011 compliant low-power radio transceiver designed for both industrial and consumer high data rate wireless communication applications.
This 32-pin QFN surface mount device supports O-QPSK modulation with a maximum data rate of 2Mbps, providing robust and efficient wireless communication. It operates over a frequency range of 2405MHz to 2480MHz with RF output power up to +4dBm, and features exceptional receiver sensitivity of -101dBm at 250kbps with 1% packet error rate, ensuring reliable data transmission in challenging conditions.
The transceiver includes an SPI interface for seamless host communication and incorporates advanced features such as AES-128 encryption for secure transmissions, frequency hopping spread spectrum (FHSS) for improved interference immunity, clear channel assessment, automated acknowledgements, and link quality indication.
Designed for versatility, it operates with supply voltages ranging from 1.8V to 3.6V and ambient temperatures from -40°C to +85°C, suitable for demanding industrial, laboratory, and commercial wireless networking environments.
Typical applications include home and building automation, lighting control systems, wireless sensor networks, and Internet of Things (IoT) devices, where reliable and secure wireless connectivity is critical.
Supports O-QPSK modulation with data rates up to 2000Mbps. Features a 32-pin QFN surface mount package with SPI interface. Operates at supply voltages from 1.8V to 3.6V with low power consumption. Provides excellent receiver sensitivity of -101dBm at 250kbps with 1% packet error rate.
Compliant with multiple approvals including RoHS, FCC, EN 300 328/440 and IEEE 802.15.4 standards. Includes AES-128 security module and supports frequency hopping spread spectrum. Operating temperature range from -40°C to +85°C suitable for harsh environments.
Ideal for ZigBee, 6LoWPAN, RF4CE systems, and IoT wireless sensor networks. Explore more microchip communication modules and RF ICs at EnvMart to enhance your wireless design projects.
Explore more products in our RF Transceiver IC category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports a maximum data rate of up to 2Mbps using O-QPSK modulation.
The receiver sensitivity is -101dBm at 250kbps with a 1% packet error rate.
It operates on supply voltages ranging from 1.8V to 3.6V.
This unit uses a serial SPI interface for host communication.
It utilizes O-QPSK modulation for data transmission.
The transceiver comes in a 32-pin QFN surface mount package.
It operates within the RF frequency range of 2405MHz to 2480MHz.
It is suitable for applications such as home and building automation, lighting control systems, and wireless sensor networks.
It is compliant with RoHS, FCC, EN 300 328/440, and IEEE 802.15.4 standards.
The height is 1mm and the width is 5mm.
Yes, it includes an AES-128 security module for secure transmissions.
