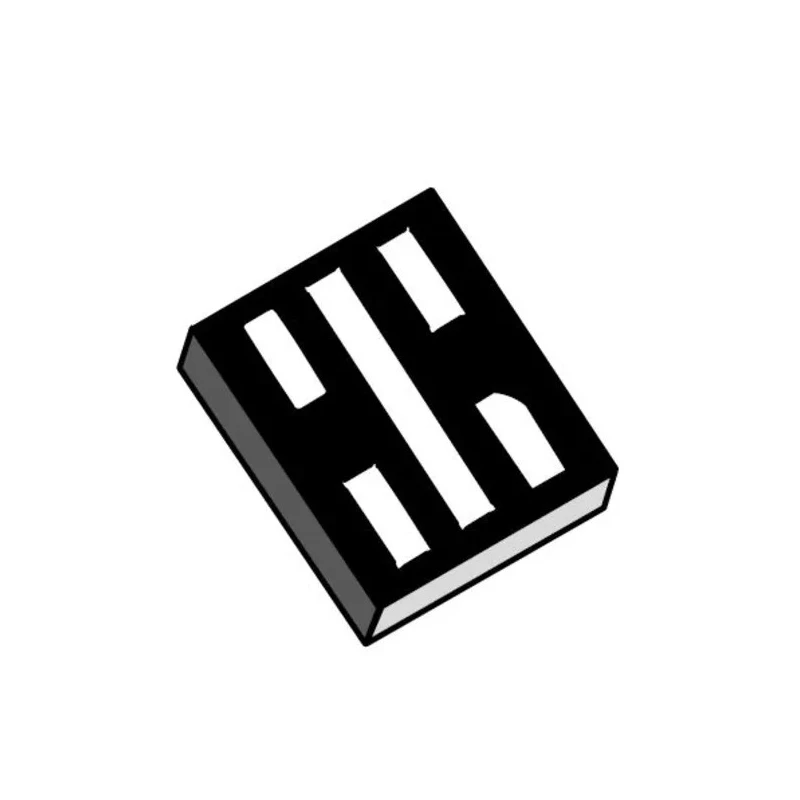

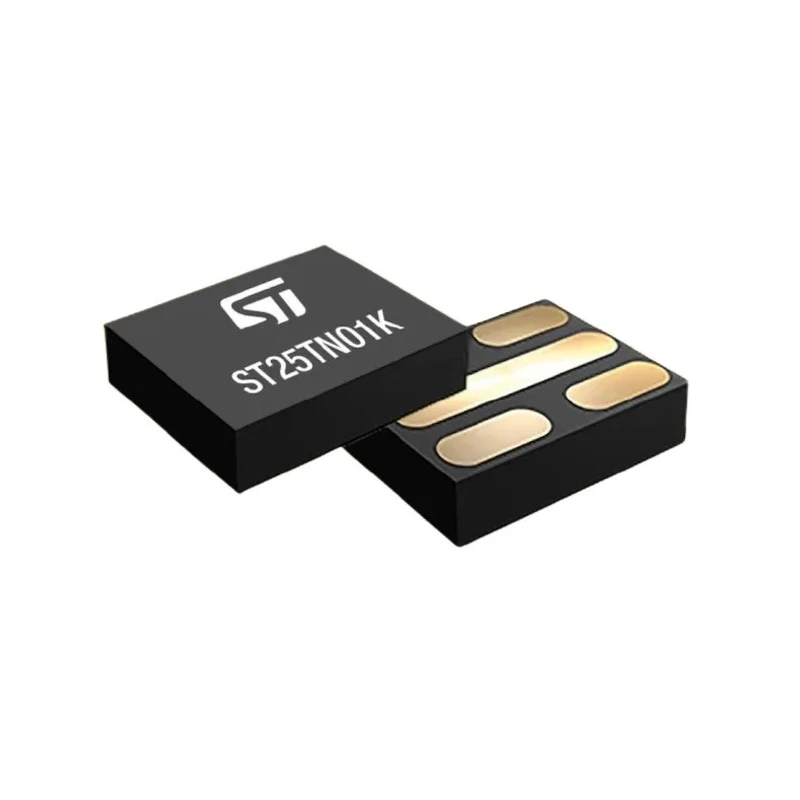

STMicroelectronics RF Transceiver IC NFC Forum Type 2 Tag, ASK Modulation, 106kbps, 5-Pin DFN-5 ST25TN01K-AFH5
Specifications
| Country of Origin | India |
|---|---|
| Brand | STMicroelectronics |
| Height | 0.5mm |
| Length | 1.7mm |
| Model | ST25TN01K-AFH5 |
| Technology | NFC |
| Width | 1.4mm |
| Mount Type | Surface |
| Series | ST25TN01K |
| Maximum Operating Temperature | 85°C |
| Package Type | DFN-5 |
| Minimum Operating Temperature | -40°C |
| Pin Count | 5 |
| Modulation Technique | ASK |
Key Features
- Complies with ISO/IEC 14443-2 and 14443-3 Type A standards and NFC Forum Type 2 tag specification.
- Equipped with 5-Pin DFN-5 package for surface mounting.
- Operates within temperature range of -40°C to 85°C with internal tuning capacitance.
- Embedded EEPROM provides up to 208 bytes for user content supporting NFC Forum NDEF format.
- Supports data retention for 40 years at 55°C for reliable performance.
- Provides configurable kill mode for permanent tag deactivation.
- Compatible with Android and iOS NFC-enabled phones natively.
- Compact dimensions of 1.7mm length, 1.4mm width, and 0.5mm height.
Product Description
STMicroelectronics ST25TN01K-AFH5 RF Transceiver IC is a highly integrated NFC Forum Type 2 tag device designed for seamless contactless communication. Equipped with ASK modulation and supporting a data rate of 106kbps, this device meets ISO/IEC 14443-2 and 14443-3 Type A standards, ensuring interoperability across NFC-enabled devices.
The 5-Pin DFN-5 surface mount package offers a compact form factor with dimensions of 1.7mm by 1.4mm by 0.5mm, making it ideal for embedded applications requiring space saving.
This IC integrates an electrically erasable programmable memory (EEPROM) that provides up to 208 bytes for user data, stored in NFC Forum NDEF format for easy compatibility with smartphones and other NFC devices. It features an internal tuning capacitance and harvests operating power directly from the NFC RF field, eliminating the need for external power components.
Engineered to operate reliably from -40°C to +85°C, the ST25TN01K-AFH5 supports data retention for up to 40 years at an ambient temperature of 55°C, making it suitable for long-term use in industrial, commercial, and consumer electronics applications.
The device also includes a configurable kill mode to permanently deactivate the tag, enabling privacy and security options in NFC implementations. It is natively supported by Android and iOS smartphones, facilitating broad compatibility for mobile and embedded NFC applications.
Complies with NFC Forum Type 2 and ISO/IEC 14443 standards. Compact 5-Pin DFN-5 surface mount package. Internal tuning capacitance for simplified design. Up to 208 bytes user EEPROM memory for NDEF formatted data. Wide operating temperature range from -40°C to 85°C.
Harvests power from NFC field, requiring no external supply. Configurable kill mode for secure deactivation. Extensive compatibility with Android and iOS devices. Long data retention of 40 years at 55°C.
Applications include industrial, consumer electronics, access control, inventory management, and other NFC-enabled communication systems. The ST25TN01K-AFH5 enables designers to implement secure and efficient wireless data transfer with minimal external components.
Explore more NFC and RF IC solutions in the Semiconductor and RF IC categories at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The STMicroelectronics ST25TN01K-AFH5 uses ASK (Amplitude Shift Keying) modulation for its communication.
This model has compact dimensions of 1.7mm in length, 1.4mm in width, and 0.5mm in height.
The operating temperature range for the ST25TN01K-AFH5 is from -40°C to 85°C.
The ST25TN01K-AFH5 integrates an EEPROM that provides up to 208 bytes for user data.
This RF transceiver IC complies with ISO/IEC 14443-2 and 14443-3 Type A standards as well as the NFC Forum Type 2 tag specification.
The ST25TN01K-AFH5 supports a data rate of 106kbps.
It comes in a 5-Pin DFN-5 surface mount package, which is suitable for compact applications.
Yes, it is natively compatible with Android and iOS NFC-enabled smartphones.
Yes, it includes a configurable kill mode for permanently deactivating the tag, enhancing security options.
This model is suitable for various applications, including industrial, consumer electronics, access control, and inventory management.
The ST25TN01K-AFH5 is manufactured in India.
