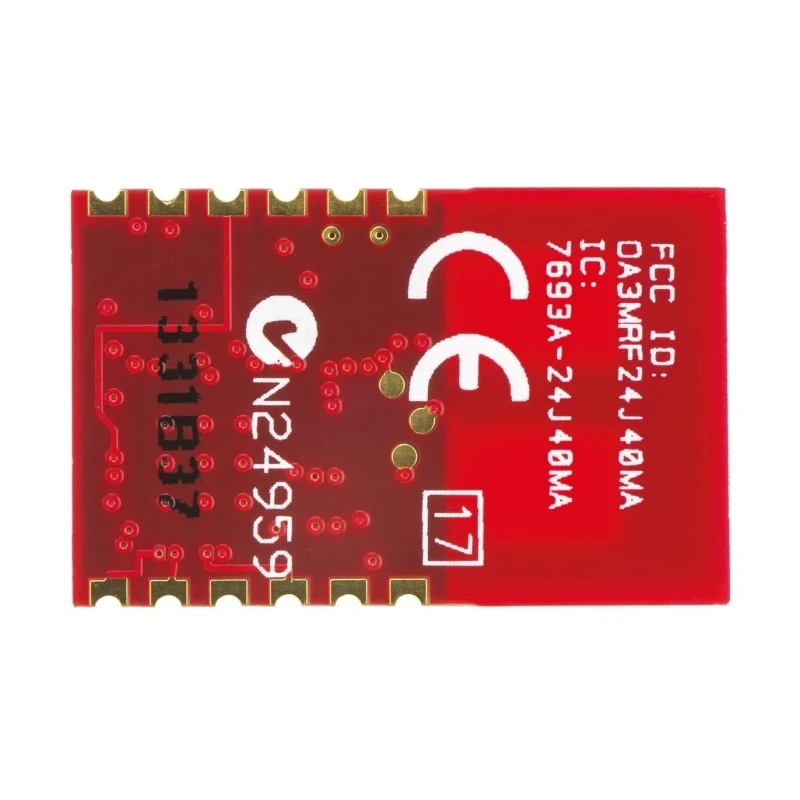

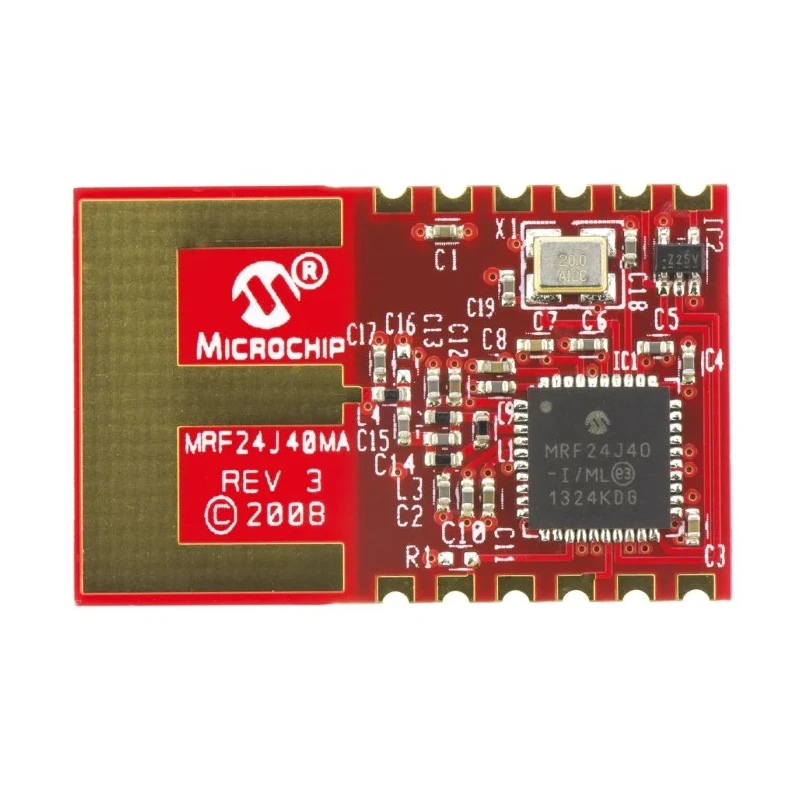

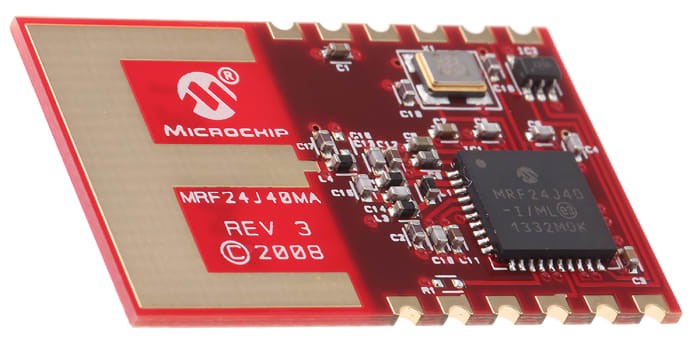

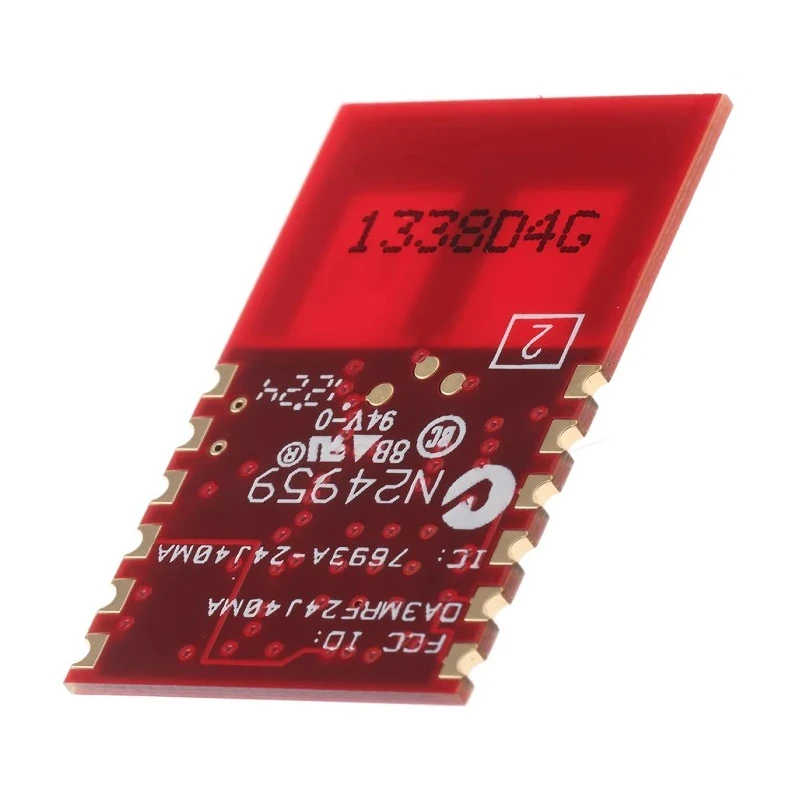

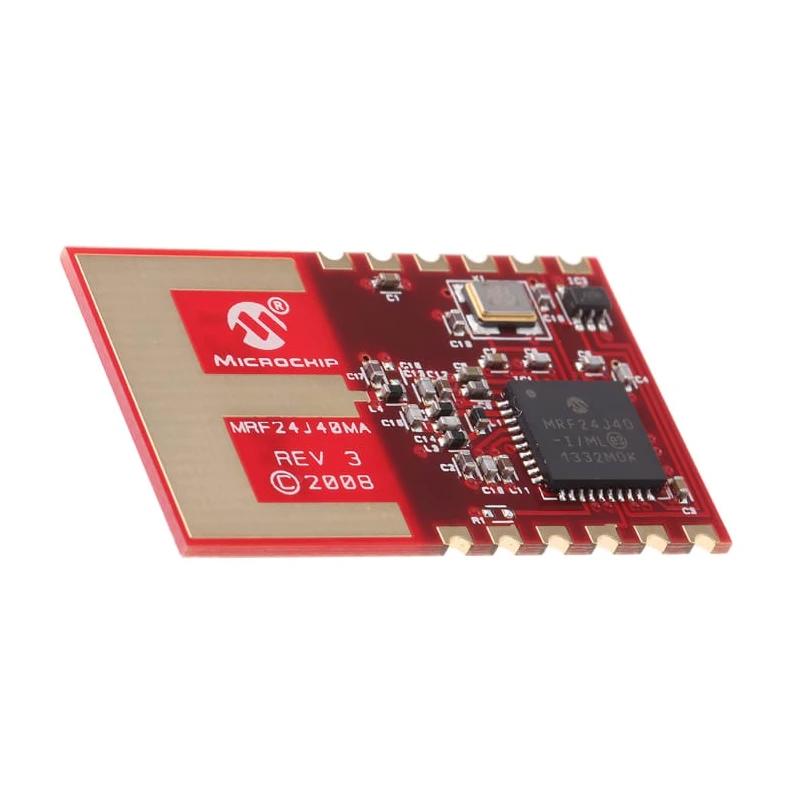

Microchip ZigBee Transceiver Module 2.4 GHz IEEE 802.15.4, Surface Mount, SPI Interface 12-Pin MRF24J40MA-I/RM

Microchip MRF24J40MA-I/RM ZigBee Transceiver Module is a new, compact, surface mount wireless transceiver designed for IEEE 802.15.4 standard applications operating at 2.4 GHz frequency. It includes an integrated PCB antenna, internal voltage regulator, and crystal oscillator, facilitating easy integration into complex wireless network designs.

This 12-pin module supports SPI interface with maximum data speeds of 250 kbps using O-QPSK modulation technique. It operates over a supply voltage range from 3.0 V to 3.6 V and withstands operating temperatures from -40°C to 85°C, making it suitable for harsh industrial and commercial environments.

Equipped with AES-128 encryption, the MRF24J40MA-I/RM module ensures secure communications for sensitive data in applications such as wireless sensor networks, home automation, building automation, and consumer electronics. Its compatibility with Microchip's PIC16F, PIC18F, PIC24F/H, dsPIC33, and PIC32 microcontroller families facilitates broad software support using ZigBee, MiWi, and MiWi P2P protocols.

The compact form factor with dimensions of 27.94 mm by 17.78 mm by 0.89 mm and surface mount packaging supports space-efficient PCB designs. Its certified compliance with FCC, IC, and ETSI standards ensures reliability in global wireless markets.

Key features include an on-board crystal oscillator and voltage regulator, four-wire SPI interface, and the ability to achieve wireless ranges up to 120 meters, dependent on deployment conditions. This module effectively supports robust, low-power, high-security wireless networking solutions in industrial, laboratory, HVAC, manufacturing, water treatment, agricultural, and commercial applications.

Supports IEEE 802.15.4 with ZigBee and MiWi protocol compatibility. Uses O-QPSK modulation at a 2.48 GHz operating band. Integrated PCB antenna and voltage regulation on module. 12-pin, surface mount SPI interface for easy system integration.

Wide operating temperature range and supply voltage tolerance. Strong AES-128 encryption for data security. Compact size with dimensions 27.94 x 17.78 x 0.89 mm. Compatible with multiple Microchip PIC microcontroller families.

Up to 120 meters effective wireless range. Suitable for various automation and sensor network applications. Explore more RF ICs and communication modules on EnvMart for your industrial and embedded design needs.
