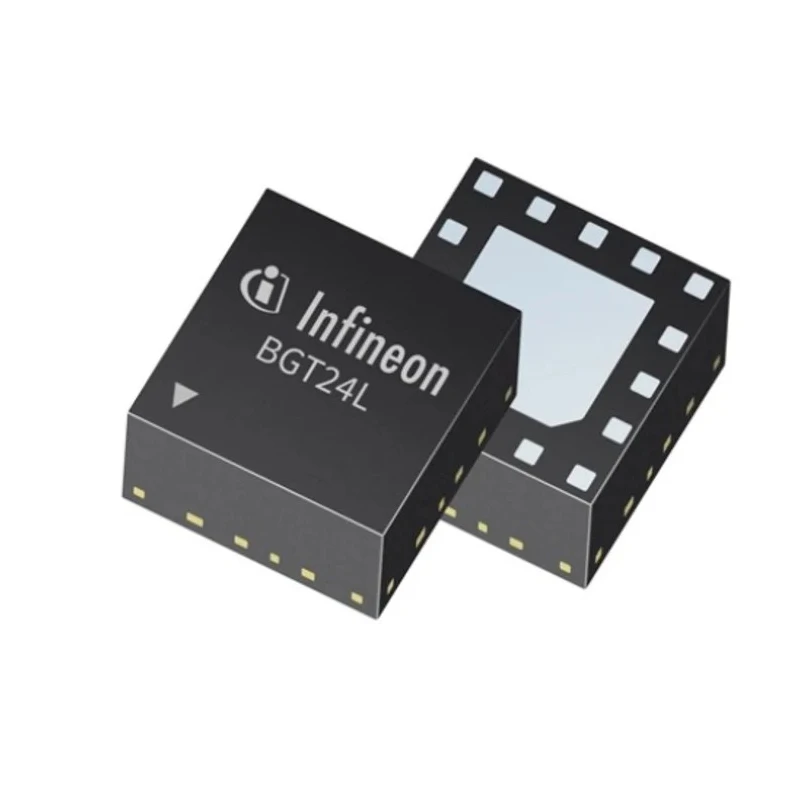

Infineon RF Transceiver IC 16-Pin TSNP Package SiGe C Technology 24.25GHz Operating Band BGT24LTR11N16E6327XTSA1
Specifications
| Country of Origin | India |
|---|---|
| Brand | Infineon |
| Height | 0.73mm |
| Length | 2.4mm |
| Model | BGT24LTR11N16E6327XTSA1 |
| Technology | SiGe C |
| Width | 2.4mm |
| Mount Type | Surface |
| Series | BGT24LTR11N16 |
| Maximum Operating Temperature | 85°C |
| Package Type | TSNP |
| Sub Type | Transceiver |
| Minimum Operating Temperature | -40°C |
| Pin Count | 16 |
| Maximum Supply Voltage | 3.6V |
| Minimum Supply Voltage | -0.3V |
| Operating Band 1 Frequency | 24.25MHz |
| Operating Band 2 Frequency | 24.25GHz |
| Number of Operating Bands | 2 |
Key Features
- Operates within 24 GHz to 24.25 GHz frequency range for versatile applications.
- Utilizes SiGe C technology for advanced performance and stability.
- Compact TSNP-16-9 surface mount package supports space-efficient PCB designs.
- Wide operating voltage range from -0.3V to 3.6V ensures compatibility with diverse systems.
- Extends functional temperature range from -40°C to +85°C with robust temperature compensation.
- Integrated voltage-controlled oscillator (VCO) stabilisation provides improved frequency accuracy.
- High resilience with advanced electrostatic discharge (ESD) protection to maintain operational integrity.
- Suitable for precision radar systems, wireless communication devices, and electronic monitoring applications.
Product Description
Infineon BGT24LTR11N16E6327XTSA1 RF Transceiver IC is a high-performance semiconductor device specially engineered for precision radar applications and wireless communication operating at a frequency band up to 24.25 GHz. It employs SiGe C technology allowing efficient operation with low power consumption and excellent stability.
The device is housed in a compact 16-pin TSNP package measuring 2.4mm in length, 2.4mm in width, and 0.73mm in height, optimizing it for small PCB footprints and surface mount technology implementation. It operates with a supply voltage ranging from -0.3V to 3.6V and maintains functionality under extreme temperature conditions from -40°C to +85°C, thanks to integrated temperature compensation techniques.
Distinct features include integrated voltage-controlled oscillator stabilisation which enhances frequency accuracy, and advanced ESD protection contributing to its reliability in sensitive electronic environments. This transceiver IC supports two operating bands around 24 GHz, facilitating diverse industrial, automotive radar, and communication uses.
Key applications include integration into precision radar systems for automation, electronic monitoring equipment for enhanced signal processing, and wireless communication setups requiring high signal integrity and low noise amplification.
Operates from 24 GHz to 24.25 GHz enabling versatile applications. SiGe C technology ensures advanced performance and energy efficiency. Compact 16-pin TSNP package supports space-saving designs. Wide supply voltage compatibility from -0.3V to 3.6V.
Robust temperature range of -40°C to 85°C with compensation. Integrated VCO stabilisation improves frequency precision. Advanced ESD protection maintains device reliability. Ideal for precision radar and wireless communication systems.
Designed for compact surface mount technology assemblies.
This product is part of Infineon's BGT24LTR11N16 series, recognized for meeting demanding requirements in the semiconductor and communication industries. It is suitable for industrial, automotive, laboratory, and commercial applications requiring accurate RF transceiver performance. Explore the Electronics & Electricals category on EnvMart for a broad range of semiconductor and RF IC components.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model operates within a frequency range of 24 GHz to 24.25 GHz, making it suitable for various applications.
It utilizes SiGe C technology, which allows for advanced performance and stability in operation.
The TSNP package measures 2.4mm in length, 2.4mm in width, and 0.73mm in height, optimizing it for space-efficient PCB designs.
The device maintains functionality under a temperature range from -40°C to +85°C, supported by integrated temperature compensation.
Integrated voltage-controlled oscillator (VCO) stabilization improves frequency accuracy, making it suitable for precision applications.
It supports surface mount technology, which is ideal for compact electronic assemblies.
It features advanced electrostatic discharge (ESD) protection, which helps maintain operational integrity in sensitive environments.
It is suitable for precision radar systems, wireless communication devices, and electronic monitoring applications requiring high signal integrity.
This model has a pin count of 16, which is typical for devices in its class.
The country of origin for this model is India.
