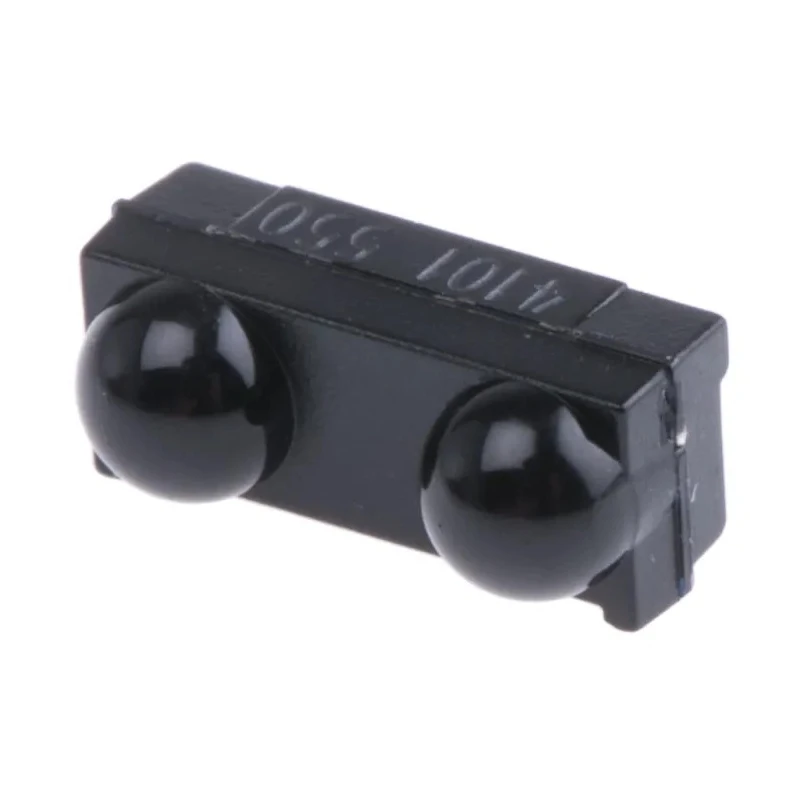

Vishay Infrared Transceiver 1 m Range 900 nm Wavelength 115.2 kbps Data Rate Surface Mount Ultra Small Profile TFDU4101-TR3
Specifications
| Country of Origin | India |
|---|---|
| Brand | Vishay |
| Height | 4.7mm |
| Length | 9.9mm |
| Model | TFDU4101-TR3 |
| Packaging | Tape & Reel |
| Width | 4.7mm |
| Mount Type | Surface |
| Series | TFDU4101 |
| Maximum transmission distance | 1m |
| Maximum Operating Temperature | 85°C |
| Package Type | Ultra Small Profile |
| Minimum Operating Temperature | 30°C |
| Number of Pins | 8 |
| Maximum Supply Voltage | 5.5V |
| Minimum Supply Voltage | 2.4V |
| Supply Current | 70μA |
| Emitter Peak Wavelength | 900nm |
| Maximum Data Receiving Rate | 115.2kbps |
| Emitter Angle of Half Intensity | ±24 ° |
Key Features
- Maximum transmission distance of 1 meter for effective infrared communication.
- Emitter peak wavelength is 900 nm ensuring optimal performance.
- Supports maximum data receiving and transmission rate of 115.2 kbps.
- Operates with supply voltage range from 2.4 V to 5.5 V.
- Low supply current of 70 μA for energy efficient operation.
- Compact ultra small profile package measuring 9.9 mm length, 4.7 mm width, and 4.7 mm height.
- Surface mounting type with 8 pins for easy PCB integration.
- Emitter half intensity angle of ±24 degrees for effective infrared transmission coverage.
Product Description
Vishay TFDU4101-TR3 infrared transceiver module provides a complete front-end solution integrating a photo PIN diode, infrared emitter (IRED), and low-power control IC in a compact surface mount package measuring 9.9 x 4.7 x 4.7 mm.
Designed for high reliability and efficiency, it supports IrDA speeds up to 115.2 kbps (SIR) to enable fast infrared data communication over distances up to 1 meter. The device operates from 2.4 V to 5.5 V supply ranges with a low supply current of 70 μA, making it well-suited for low-power systems.
Its surface mount ultra small profile form factor with 8 pins facilitates automated assembly and compact designs. The emitter peak wavelength of 900 nm combined with an emitter half intensity angle of ±24 degrees delivers reliable infrared signal transmission with efficient coverage.
The module is compliant with IEC/EN 60825-1 Class 1 and other regulatory safety standards ensuring safe operation in industrial and commercial environments. It also features a power shutdown mode for improved power management.
This infrared transceiver assembly is commonly used in communication equipment, remote control devices, industrial controls, consumer electronics, and medical instrumentation requiring reliable near-infrared wireless communication.
Maximum transmission distance of 1 meter for effective infrared communication. Emitter peak wavelength is 900 nm ensuring optimal performance. Supports maximum data receiving and transmission rate of 115.2 kbps. Operates with supply voltage range from 2.4 V to 5.5 V.
Low supply current of 70 μA for energy efficient operation. Compact ultra small profile package measuring 9.9 mm length, 4.7 mm width, and 4.7 mm height. Surface mounting type with 8 pins for easy PCB integration. Emitter half intensity angle of ±24 degrees for effective infrared transmission coverage.
Operating temperature range from 30°C to 85°C. Compliant with IEC/EN 60825-1 Class 1 safety standards.
This Vishay infrared transceiver is ideal for electronics manufacturing, industrial automation, sensor interfacing, and remote data transmission applications. Explore EnvMart for a comprehensive range of Vishay optoelectronic components and IR transceivers.
Explore more products in our RF Transceiver IC category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum transmission distance of the Vishay TFDU4101-TR3 infrared transceiver is 1 meter, allowing effective infrared communication.
This infrared transceiver supports a maximum data receiving and transmission rate of 115.2 kbps, enabling fast data communication.
The device operates with a supply voltage range from 2.4 V to 5.5 V, making it suitable for various low-power applications.
The supply current for this model is 70 μA, contributing to its energy-efficient operation.
The compact dimensions of this infrared transceiver are 9.9 mm in length, 4.7 mm in width, and 4.7 mm in height.
The emitter peak wavelength of the TFDU4101-TR3 is 900 nm, which ensures optimal performance in infrared communication.
The emitter half intensity angle is ±24 degrees, providing effective infrared transmission coverage.
This infrared transceiver features 8 pins, facilitating easy PCB integration.
The operating temperature range for the TFDU4101-TR3 is from 30°C to 85°C, suitable for various environments.
The TFDU4101-TR3 uses a surface mount type, which allows for automated assembly and compact designs.
This model is compliant with IEC/EN 60825-1 Class 1 safety standards, ensuring safe operation in industrial and commercial environments.
This infrared transceiver is commonly used in communication equipment, remote control devices, industrial controls, consumer electronics, and medical instrumentation.
