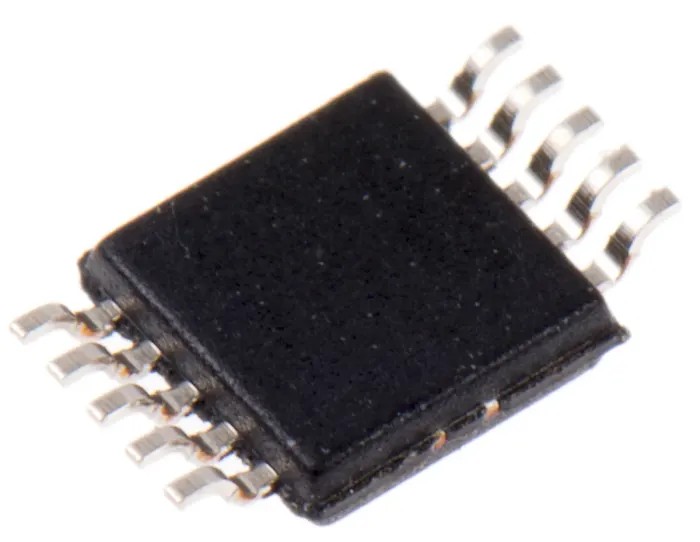

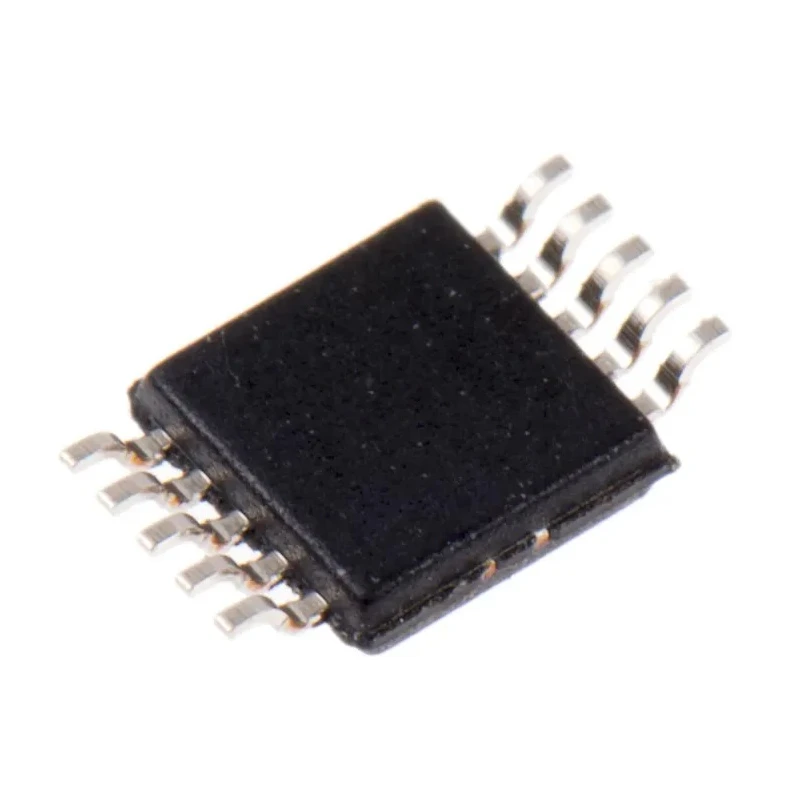

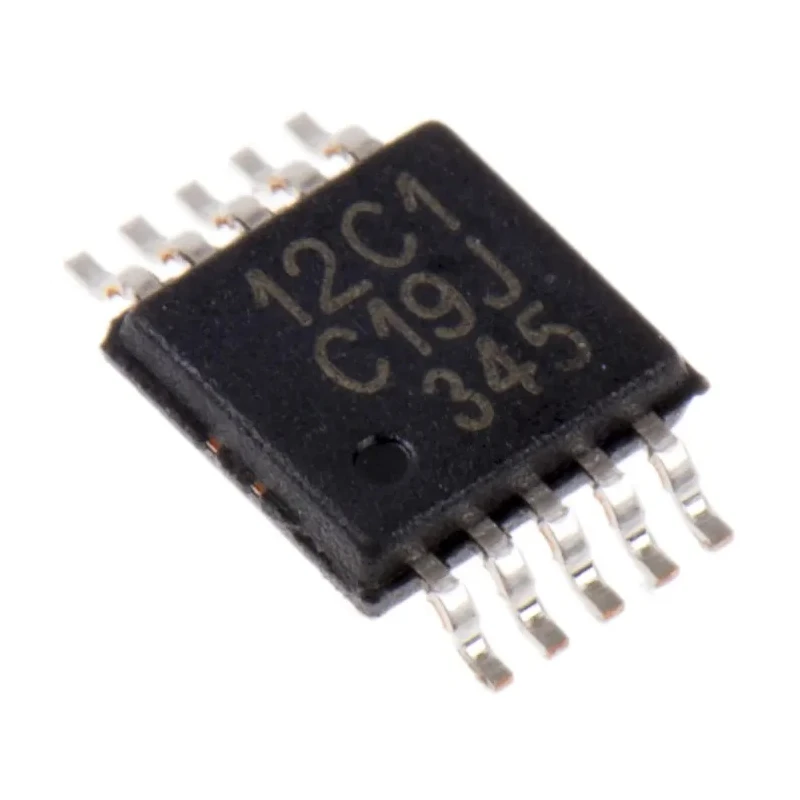

Silicon Labs RF Transmitter CMOS Technology 10-Pin MSOP Surface Mount SMBus Interface 960MHz Operating Band Si4012-C1001GT

Free Delivery in India | Lowest Global Shipping Charges

Silicon Labs RF Transmitter CMOS Technology 10-Pin MSOP Surface Mount SMBus Interface 960MHz Operating Band Si4012-C1001GT

Name: Silicon Labs RF Transmitter CMOS Technology 10-Pin MSOP Surface Mount SMBus Interface 960MHz Operating Band Si4012-C1001GT
Brand: Silicon Labs
SKU: 130038



Category RF ICs Brand Silicon Labs Condition New

Specifications

Country of Origin	Malaysia
Brand	Silicon Labs
Height	0.95mm
Length	3mm
Model	Si4012-C1001GT
Technology	CMOS
Width	3mm
Mount Type	Surface
Series	Si4012
Maximum Operating Temperature	85°C
Package Type	MSOP
Sub Type	RF Transmitter
Minimum Operating Temperature	-40°C
Interface Type	SMBus
Pin Count	10
Maximum Supply Voltage	3.6V
Minimum Supply Voltage	1.8V
Modulation Technique	OOK, FSK
Operating Band 1 Frequency	960MHz
Number of Operating Bands	1

Key Features

This RF transmitter supports OOK and FSK modulation techniques for reliable communication.
The device operates within a supply voltage range of 1.8V to 3.6V.
The compact 10-pin MSOP surface-mount package has dimensions of 3mm by 3mm by 0.95mm height.
This transmitter operates reliably between -40°C and 85°C, suitable for industrial and automotive applications.
It supports data rates up to 100 kBd for low data-rate wireless transmission.
Designed for Sub-1GHz ISM band applications including remote keyless entry and home automation.
The device supports a single operating frequency band, optimized for 960 MHz.
Surface mount design is compatible with modern PCB assembly processes.

Product Description

Silicon Labs Si4012-C1001GT is a high-performance RF transmitter integrated circuit based on CMOS technology, offered in a compact 10-pin MSOP surface-mount package measuring 3mm x 3mm x 0.95mm. It supports SMBus interface and operates at an optimized frequency of 960 MHz in the Sub-1GHz ISM band.

This transmitter supports two modulation techniques: On-Off Keying (OOK) and Frequency Shift Keying (FSK), enabling versatile wireless communication options for OEMs. It features a data rate capability of 100 kBd suitable for low data rate applications such as remote keyless entry (RKE), garage door openers, remote controls, home automation, and security systems.

The device is designed to operate between a minimum supply voltage of 1.8V and a maximum supply voltage of 3.6V and is rated for reliable operation across a harsh temperature range from -40°C up to 85°C, making it well suited for industrial, automotive, and commercial environments.

The single operating band transmitter is part of the EZRadio® family of wireless ICs, which deliver low power consumption and cost-effective wireless solutions. Its compact surface-mount package supports modern PCB manufacturing processes and space-constrained designs.

Applications include industrial sensor networks, security devices, home automation systems, and automotive RF communication modules. The transmitter works effectively in one-way wireless link use cases requiring reliable low data rate communication within the 960 MHz band.

This RF transmitter features CMOS technology and 10-pin MSOP packaging. Supports OOK and FSK modulation techniques. Operates at a frequency of 960 MHz with data rate of 100 kBd. Wide supply voltage range from 1.8V to 3.6V enables flexible power designs.

Temperature range of -40°C to 85°C supports industrial and automotive use. Single operating band for optimized Sub-1GHz ISM band transmission. Surface mount type facilitating modern assembly methods. Ideal for remote keyless entry, garage openers, home automation, and security devices.
