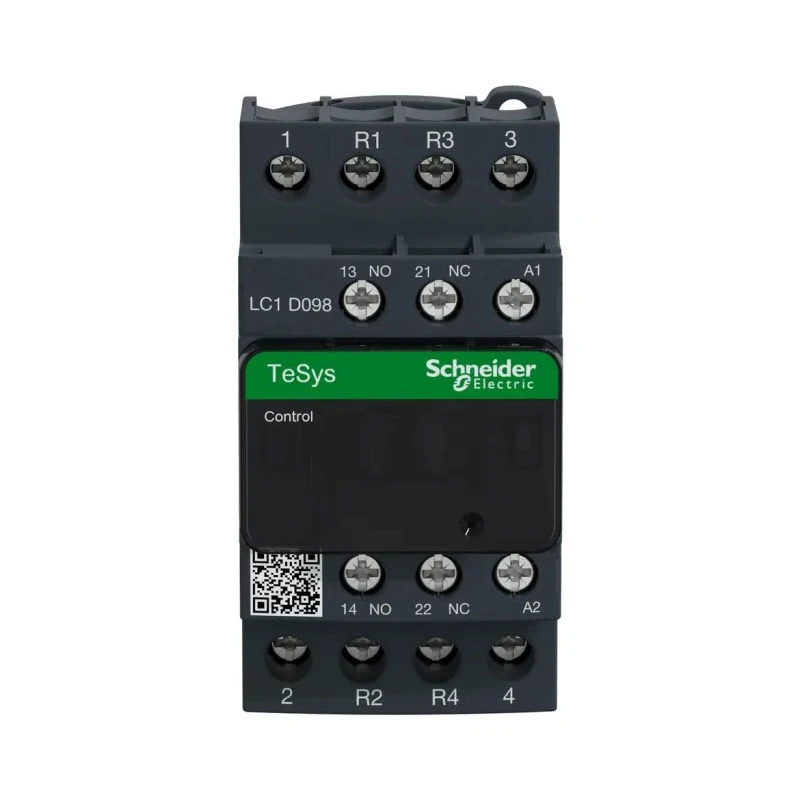

Schneider Electric 48V AC Coil 4-Pole Contactor, 20A, 2 NO/2 NC, 690V AC LC1D098E7

Schneider Electric LC1D098E7 48V AC Coil 4-Pole Contactor is engineered for motor control and resistive load applications with a contact rating of 20A at 690V AC. It offers robust performance in industrial, manufacturing, HVAC, and automation systems where reliable switching is critical.

This contactor includes 2 normally open and 2 normally closed main contacts and 2 auxiliary contacts (1 NO, 1 NC), enabling versatile control circuit configurations. The built-in coil operates at 48V AC with a power consumption of 2.5W, ensuring efficient energy use.

It is designed for installation on DIN rails with screw clamp terminals that provide secure wiring connections marked for both North American and international standards, suitable for industrial and commercial control panels. The device supports operating temperatures from -5°C to 60°C and offers an operational current of 9A.

The contactor housing is compact with dimensions of 85mm length, 45mm width, and 90mm depth, facilitating integration even in limited spaces. It complies with multiple international standards including IEC, UL, CSA, CCC, EAC, and RoHS, certifying it as a Green Premium product designed for sustainability and safety.

The Schneider Electric TeSys LC1D series contactors are known for their long electrical and mechanical lifespan, high resistance to shock and vibration, and suitability for frequent switching applications up to 3600 cycles per hour. This makes the LC1D098E7 ideal for equipment such as motors, compressors, pumps, mixers, air conditioning units, and conveyors.

Accessories and various mounting options are available to adapt the contactor for custom configurations, enhancing its utility in building automation and industrial control systems. This product contributes to energy-efficient and reliable automation setups that comply with global standards.

Operates with a 48V AC coil voltage and a power rating of 2.5 watts. Includes two auxiliary contacts configured as 1 normally open and 1 normally closed. Compact design with DIN rail mounting and screw clamp terminals for secure connections.

Suitable for operating temperatures from -5°C to 60°C and can handle operational currents up to 9A. Complies with international standards including IEC, UL, CSA, CCC, and RoHS. Features high reliability for demanding industrial and automation applications.

Provides efficient motor starter control with long mechanical and electrical life. Designed with IP20 finger-safe screw connections and supports environments requiring up to 3600 cycles per hour. Explore our selection of Schneider Electric Contactors and accessories at EnvMart for your industrial automation and electrical control needs.
