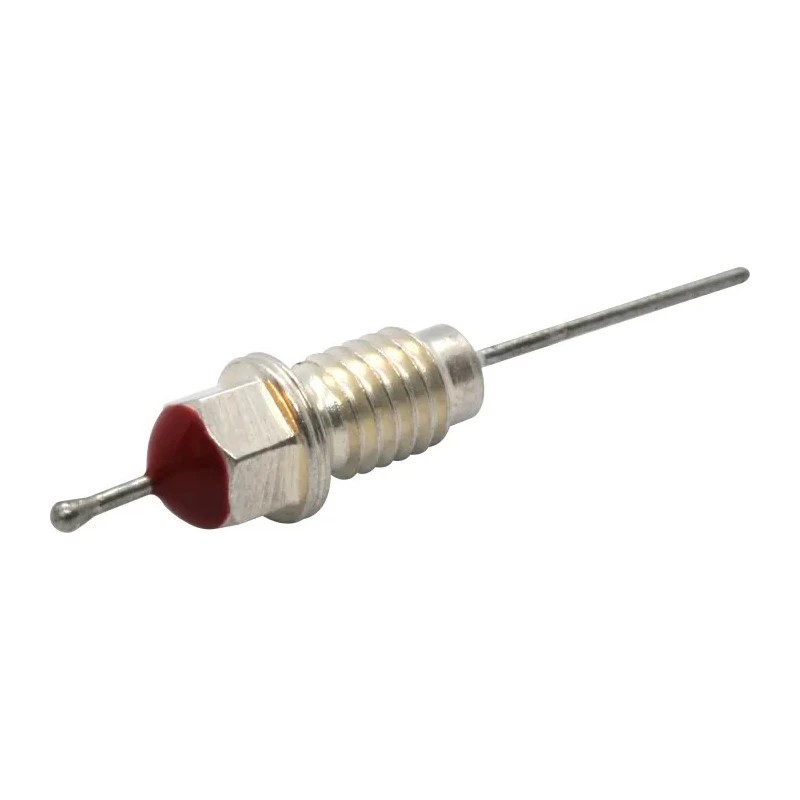

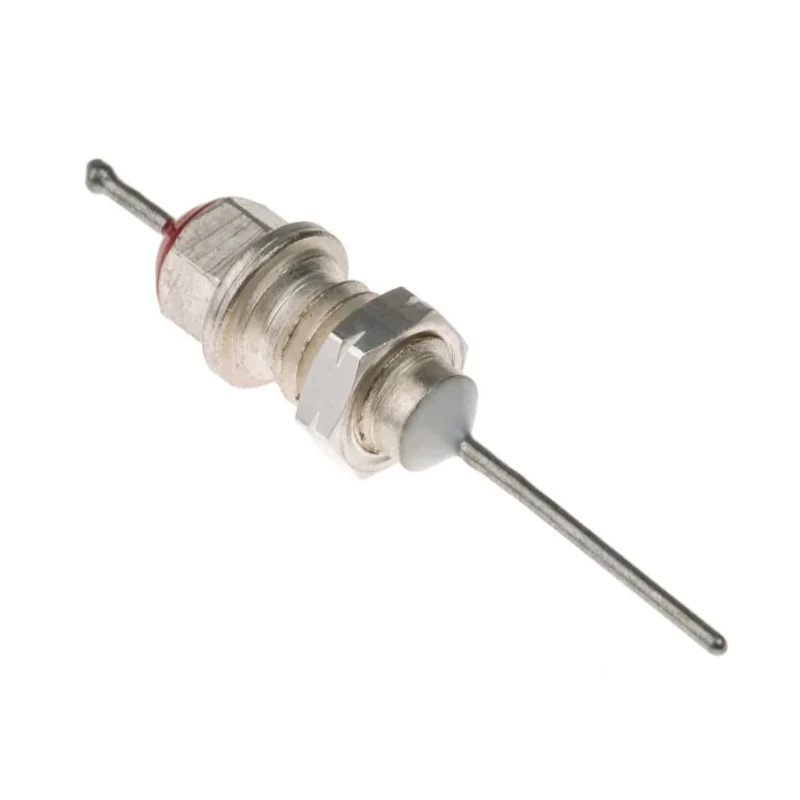

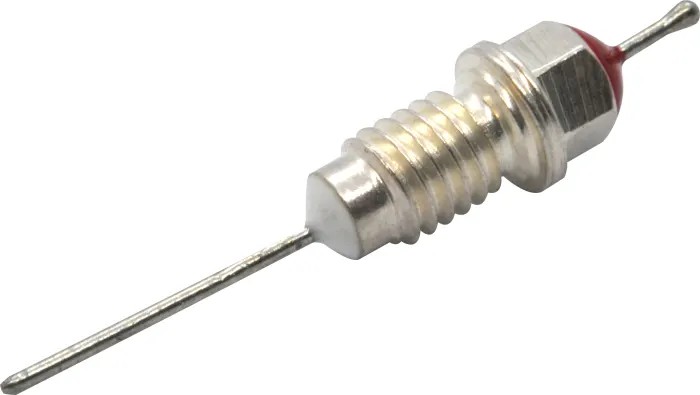

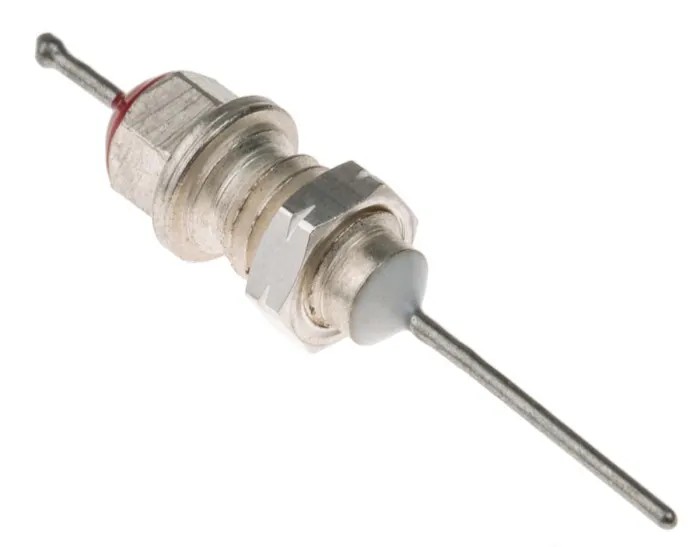

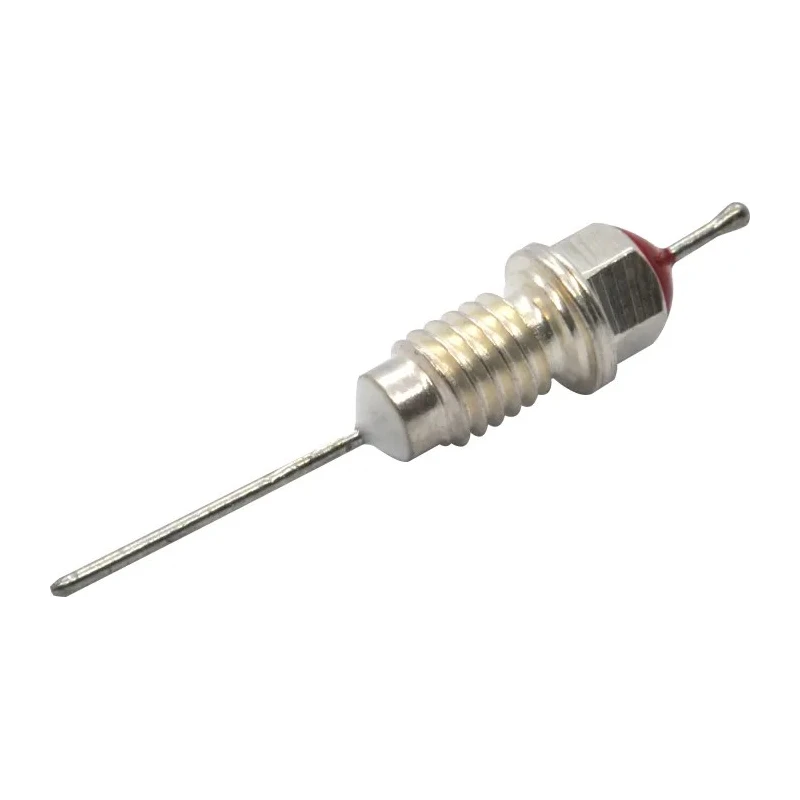

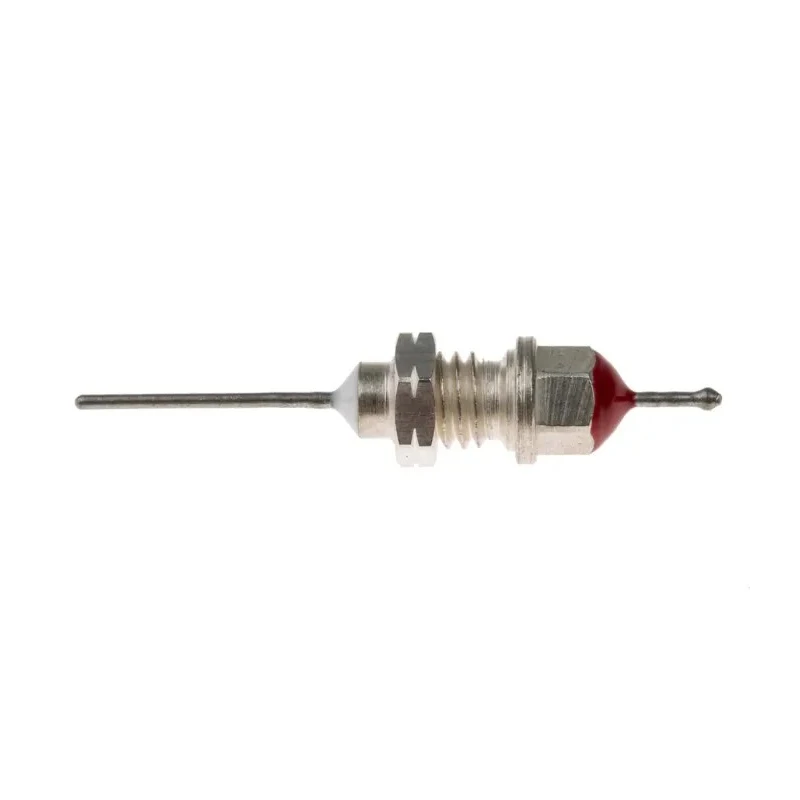

Oxley Signal Filter Panel Mount 350V DC 10 A 1000MHz FLTM 239-191

Oxley 239-191 Signal Filter is a high-performance panel mount filter designed for EMI and RFI suppression in electronic applications. It supports a maximum direct current voltage of 350V DC and a maximum current rating of 10 amperes, ensuring reliable operation in sensitive circuit environments.

The filter operates effectively up to frequencies of 1000 MHz, making it suitable for use in industrial, laboratory, manufacturing, and telecommunications settings where signal integrity is vital. The device is engineered to function within a broad temperature range from -55°C to 85°C, which covers various ambient conditions.

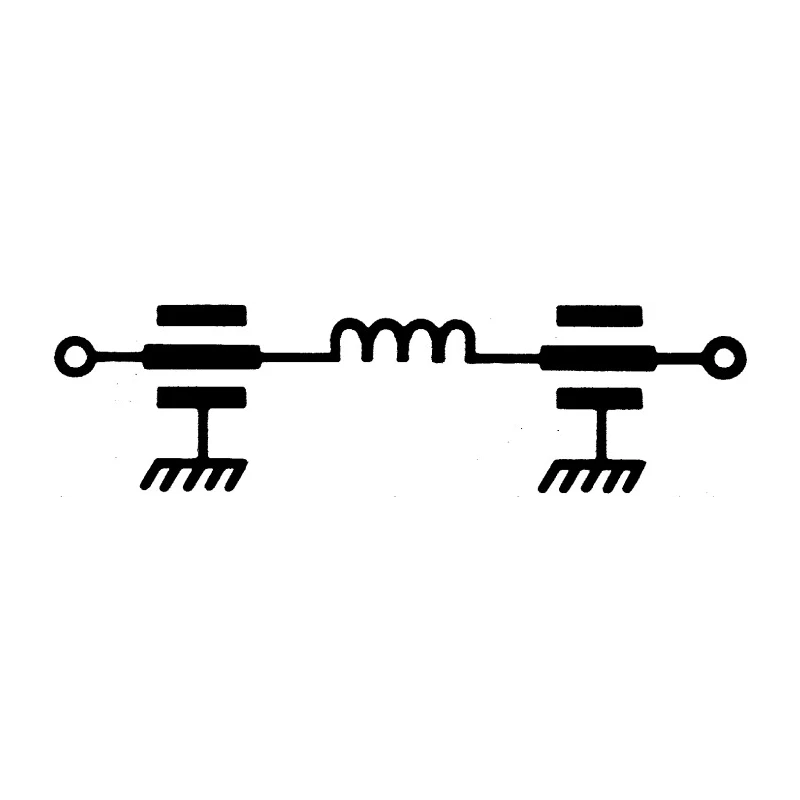

This signal filter features a PI-section design composed of tubular capacitors combined with ferrite inductors, resulting in high insertion loss from 10 MHz to 10 GHz. This characteristic ensures low frequency voltage drop and negligible DC loss while effectively filtering noise and interference.

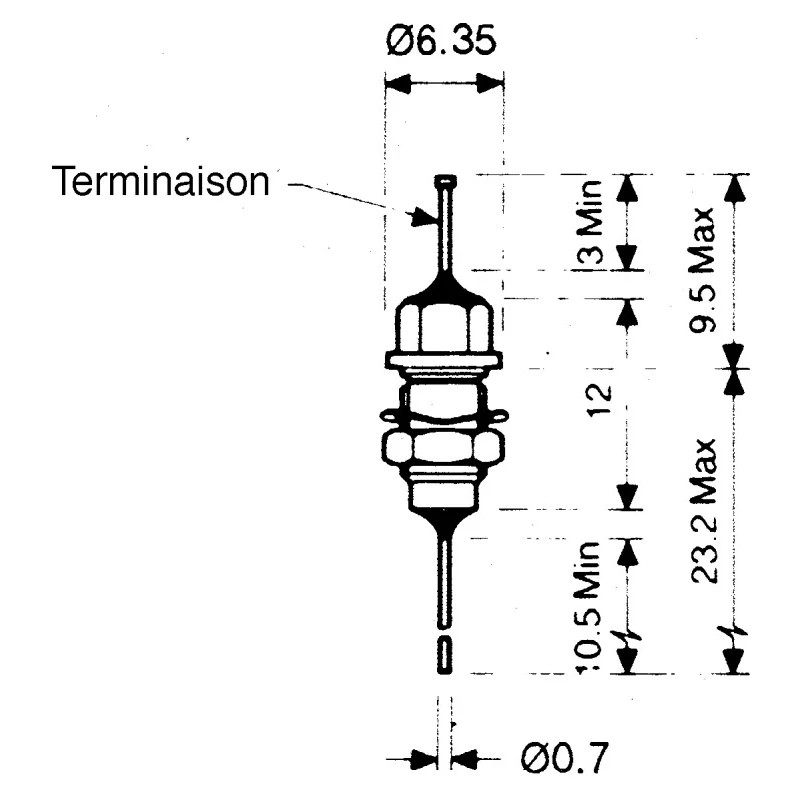

The product is mounted via a panel mount method with physical dimensions of 22.2 mm height and 32.7 mm length, facilitating easy integration into electronic panels and equipment. Maximum Voltage: 350V DC. Maximum Current: 10 A.

Operating Frequency: 1000 MHz. Operating Temperature Range: -55°C to 85°C. Capacitance: 1.5 nF. Panel Mount type with height 22.2 mm and length 32.7 mm. RoHS compliant for environmental safety. PI-section RFI suppression design with tubular capacitors and ferrite inductors.

This Oxley Signal Filter is used extensively in electronic components and power supply systems to prevent electromagnetic interference and maintain high signal clarity. Its robust construction and specifications position it well for applications in industrial automation, telecommunications, laboratory equipment, and manufacturing electronics.
