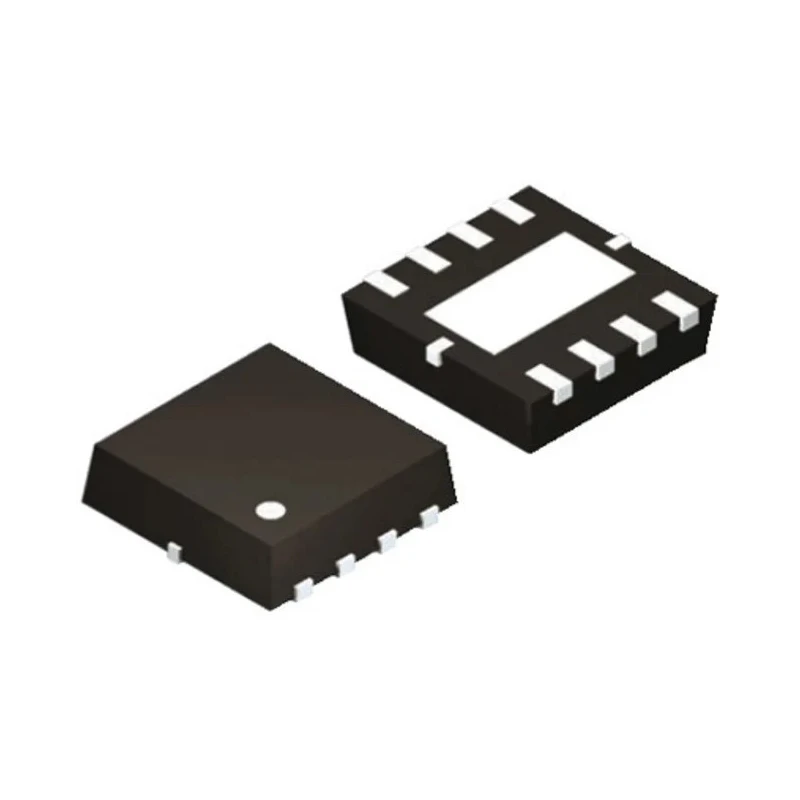

STMicroelectronics Signal Filter 30kV, 6GHz, 4.8A, QFN Surface Mount, Flat Contact, 2.6mm x 0.6mm x 1.3mm ECMF02-4CMX8

Free Delivery in India | Lowest Global Shipping Charges

STMicroelectronics Signal Filter 30kV, 6GHz, 4.8A, QFN Surface Mount, Flat Contact, 2.6mm x 0.6mm x 1.3mm ECMF02-4CMX8

Name: STMicroelectronics Signal Filter 30kV, 6GHz, 4.8A, QFN Surface Mount, Flat Contact, 2.6mm x 0.6mm x 1.3mm ECMF02-4CMX8
Brand: STMicroelectronics
SKU: 384575
Price: 0.53 USD
Availability: InStock



Category Signal Filter Brand STMicroelectronics Condition New

Specifications

Country of Origin	China
Brand	STMicroelectronics
Height	0.6mm
Length	2.6mm
Model	ECMF02-4CMX8
Depth	1.3mm
Packaging	Tape & Reel
Mount Type	Surface
Operating Frequency	6GHz
Series	ECMF02
Maximum Operating Temperature	85°C
Minimum Operating Temperature	-30°C
Maximum Current	4.8A
Maximum Voltage	30kV
Standards/Approvals	RoHS, IEC 61000-4-2 Level 4
Package/Case	QFN
Termination Style	Flat Contact

Key Features

Maximum current rating of 4.8 A ensures suitability for demanding applications.
High voltage tolerance up to 30kV for robust transient surge protection.
Operating frequency capacity of 6GHz supports high-speed signal integrity.
Compact QFN surface-mount package with flat contacts for efficient PCB mounting.
Operating temperature range from -30°C to 85°C for reliable performance in various environments.
Compliant with RoHS and IEC 61000-4-2 Level 4 standards for quality and safety assurance.
Ideal for protecting interfaces such as MIPI D-PHY, MDDI, and USB 2.0 buses from EMI.

Product Description

STMicroelectronics ECMF02-4CMX8 signal filter is a highly integrated common mode filter designed to suppress electromagnetic interference (EMI) and radio-frequency interference (RFI) noise on high-speed differential serial buses such as MIPI D-PHY, MDDI, or USB 2.0. Featuring a maximum current rating of 4.8 A and voltage tolerance of 30kV, it effectively protects sensitive electronics from transient voltage surges.

This device is encased in a compact QFN surface-mount package with flat contact terminations measuring 0.6 mm in height, 2.6 mm in length, and 1.3 mm in depth, optimizing footprint for modern circuit board layouts. Operating frequency up to 6GHz makes it suitable for high-frequency data lines, maintaining signal integrity and reducing noise.

The filter’s operating temperature range from -30°C to 85°C ensures reliable functionality in diverse conditions. It complies with RoHS directives and IEC 61000-4-2 Level 4 standards, providing assurance on environmental and electrostatic robustness.

Applications include industrial, commercial electronics, and communications equipment requiring EMI and RFI noise suppression for signal buses and data interfaces. The integrated high power TVS within some devices offers additional protection against transient surges, ensuring device longevity.

Maximum current rating: 4.8 A. Voltage rating: 30kV for surge protection. Operating frequency: 6GHz supports high-speed data lines. QFN surface mount package with flat contacts for easy PCB integration. Compact physical dimensions for space-efficient designs.

Operating temperature from -30°C to 85°C for environmental resilience. Compliant with RoHS and IEC 61000-4-2 Level 4 standards. Suitable for EMI/RFI noise suppression on MIPI D-PHY, MDDI, USB 2.0 buses.

This signal filter from STMicroelectronics is an essential component for engineers seeking reliable EMI suppression in complex electronic systems. Browse similar products in the Signal Filters category for additional solutions at EnvMart.
