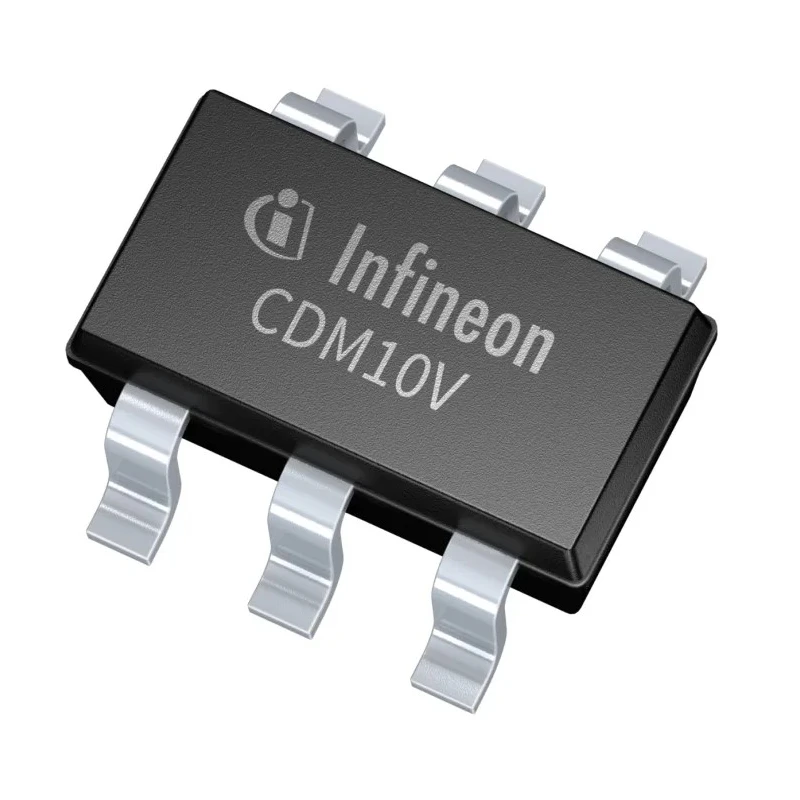

Infineon LED Driver IC 25V 1 mA PWM Dimming Through Hole SOT-23-6 CDM10VXTSA1

Infineon CDM10VXTSA1 LED Driver IC is a specialized integrated circuit designed for precise 0-10V dimming control of LED lighting. Featuring a compact 6-pin SOT-23 through hole package, it operates at an output current of 1 mA and supports an input voltage range up to 25V, making it well-suited for diverse lighting controller applications.

The device efficiently converts analog voltage signals from 0-10V dimmers or potentiometers into current-based PWM signals, driving external optocouplers for dimming or PWM inputs on lighting controllers. Its wide Vcc input range of 11 to 25V and transparent PWM mode support provide design flexibility and reliable operation.

Designed to minimize bill of materials and PCB footprint, the CDM10VXTSA1 replaces many traditional discrete components offering a single-chip solution. It supports both active and passive dimming modes and offers dim-to-off functionality, enabling comprehensive lighting control strategies.

With an operating temperature range from -40°C to 135°C, this IC ensures robustness in industrial, commercial, and residential lighting contexts. Its small dimensions of 2.9 mm length, 1.6 mm width, and 1.45 mm height make it ideal for compact PCB layouts.

Wide input voltage range: 11 - 25 V. Output current: 1 mA for precise dimming control. 6-pin SOT-23 package, suitable for through hole mounting. Supports PWM dimming operation effectively. Operating temperature range: -40°C to 135°C ensures durability.

Reduces PCB space and BOM complexity by replacing multiple components. Transparent PWM mode with minimal device variation.

This LED driver IC is typically used in LED lighting devices for both residential and commercial settings, offering efficient and compact dimming solutions. It suits industrial assembly lines, household lighting controls, and HVAC systems where precise LED brightness control is critical.
