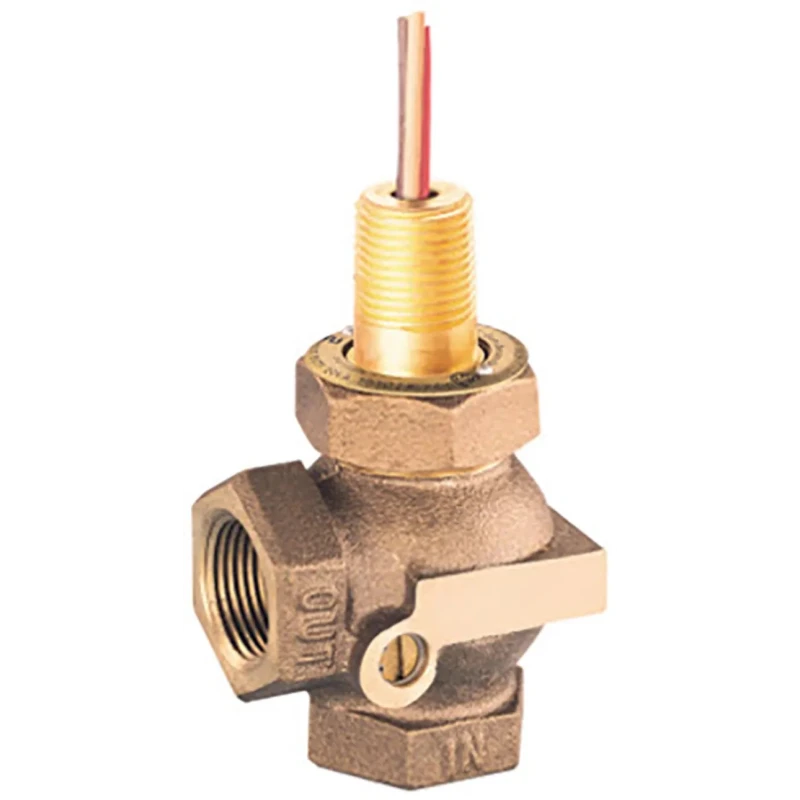

Gems Sensors FS-400 Series Adjustable Shuttle Flow Sensor for Liquid, 2 gal/min Minimum, 8 gal/min Maximum, Bronze 26601

Gems Sensors 26601 FS-400 Series Adjustable Shuttle Flow Sensor is designed for precise liquid flow detection and control in industrial and commercial applications. This flow sensor provides adjustable flow settings from 2 gal/min minimum to 8 gal/min maximum, making it versatile for various liquid flow monitoring requirements.

The sensor features a robust bronze housing, offering excellent resistance to corrosion, shock, and vibration. It incorporates a shuttle by-pass vane inside the housing that can be externally adjusted using a flat-blade screwdriver, enabling easy flow setting modifications without the need for disassembly.

Equipped with a 3/4 NPT female connection, the sensor ensures seamless installation in existing piping systems while withstanding a maximum pressure of 27.6 bar. Its operating temperature range from -29°C to 82.2°C allows it to function effectively in diverse environmental conditions.

This flow switch is rigorously tested for durability and performance and provides 1% repeatability ensuring reliable flow detection. It is commonly used to trigger alarms or control circuits for protecting bearings, gears, cooling systems, and other critical machinery components from improper flow conditions.

Typical applications include oil separators, fuel systems, pumps, compressors, presses, heat exchangers, semiconductor manufacturing, induction furnaces, water treatment processes like filtration and reverse osmosis, chlorination, de-icing, sterilization, and evaporation systems.

Constructed with corrosion-resistant bronze housing for longevity. Adjustable shuttle vane facilitates easy flow rate setting changes. 3/4 NPT female connection compatible with standard piping. Operates within wide temperature and pressure ranges suitable for harsh industrial environments.

High accuracy with 1% repeatability ensures dependable flow monitoring. Compliant with RoHS, FM, CSA, and U.L. standards for safety and environmental compliance. Suitable for critical protection of bearings, gears, and cooling systems.

Widely applicable in water filtration, oil systems, and semiconductor manufacturing. Explore Gems Sensors products and Flow Sensors at EnvMart for industrial automation and control gear solutions.
