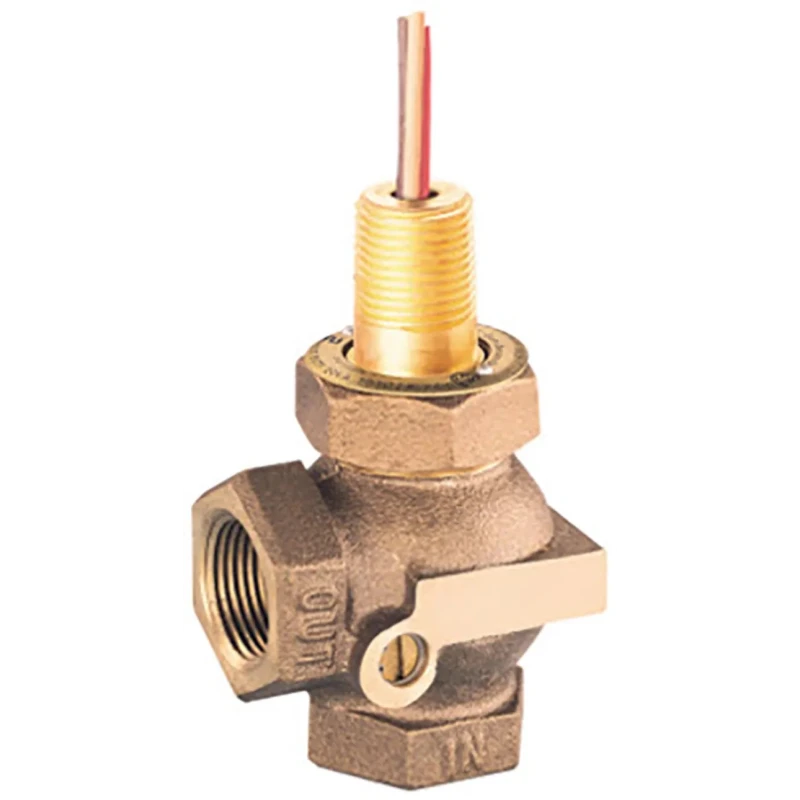

Gems Sensors FS-400 Series Adjustable Shuttle Flow Sensor for Liquid 0.75gal/m Min, 4gal/min Max 26600

Free Delivery in India | Lowest Global Shipping Charges

Gems Sensors FS-400 Series Adjustable Shuttle Flow Sensor for Liquid 0.75gal/m Min, 4gal/min Max 26600

Name: Gems Sensors FS-400 Series Adjustable Shuttle Flow Sensor for Liquid 0.75gal/m Min, 4gal/min Max 26600
Brand: GEMS SENSORS
SKU: 190238
Price: 396.07 USD
Availability: InStock



Category Flow Sensors Brand GEMS SENSORS Condition New

Specifications

Country of Origin	United States
Brand	Gems Sensors
Model	26600
Connection Type	3/4 NPT Female
Housing Material	Bronze
Series	FS-400
Maximum Pressure	27.6bar
Minimum Flow Rate	0.75gal/m
Device Type	Adjustable Shuttle
Maximum Flow Rate	4gal/min
Standards/Approvals	FM, CSA, RoHS, U.L
Media Monitored	Liquid
Minimum Media Temperature	-29°C
Maximum Media Temperature	82.2°C

Key Features

Accurate flow detection with 1% repeatability in water and oil applications.
Adjustable flow settings without disassembly via external shuttle by-pass vane control.
Constructed in corrosion-resistant bronze housing for durability and shock resistance.
Connects using 3/4 NPT female threaded fitting for secure installation.
Operates within media temperatures from -29°C to 82.2°C and pressure up to 27.6 bar.
Suitable for triggering alarms and interlocking shutdowns to protect bearings and cooling systems.
Complies with FM, CSA, RoHS, and U.L. standards for safety and reliability.

Product Description

Gems Sensors 26600 adjustable shuttle flow sensor is designed for precise liquid flow measurement, handling flow rates from 0.75 gallons per minute minimum to 4 gallons per minute maximum. Its bronze housing ensures high durability and corrosion resistance suitable for industrial automation and control systems.

This FS-400 series sensor uses a shuttle by-pass vane that can be adjusted externally with a flat-blade screwdriver for easy flow rate tuning without disassembly. The device delivers 1% repeatability, enabling reliable operation in water and oil monitoring applications.

The sensor features a 3/4 NPT female connection type, allowing secure integration within piping systems. It supports maximum operating pressures up to 27.6 bar and media temperatures ranging from -29°C to 82.2°C, making it appropriate for diverse industrial environments.

Typical applications include protection of bearings, gears, and cooling components by providing flow-triggered alarms and interlocking shutdown signals. It is widely used in oil separators, fuel system monitoring, pumps, compressors, presses, heat exchangers, semiconductor manufacturing, induction furnaces, water filtration, reverse osmosis systems, chlorination, de-icing, sterilization, and evaporators.

Accurate flow detection with 1% repeatability in water and oil applications. Adjustable flow settings without disassembly via external shuttle by-pass vane control. Durable bronze housing resistant to corrosion and mechanical shocks.

Standard 3/4 NPT female connection type for easy installation. Wide media temperature and pressure range supports varied industrial use cases. Compliant with FM, CSA, RoHS, and U.L. certifications ensuring safety standards.

Ideal for integration in industrial, laboratory, HVAC, and manufacturing systems.

This Gems Sensors FS-400 Series flow sensor combines precision, durability, and versatile industrial compatibility. Explore EnvMart's extensive flow sensor category for more solutions tailored to automation and control needs.
